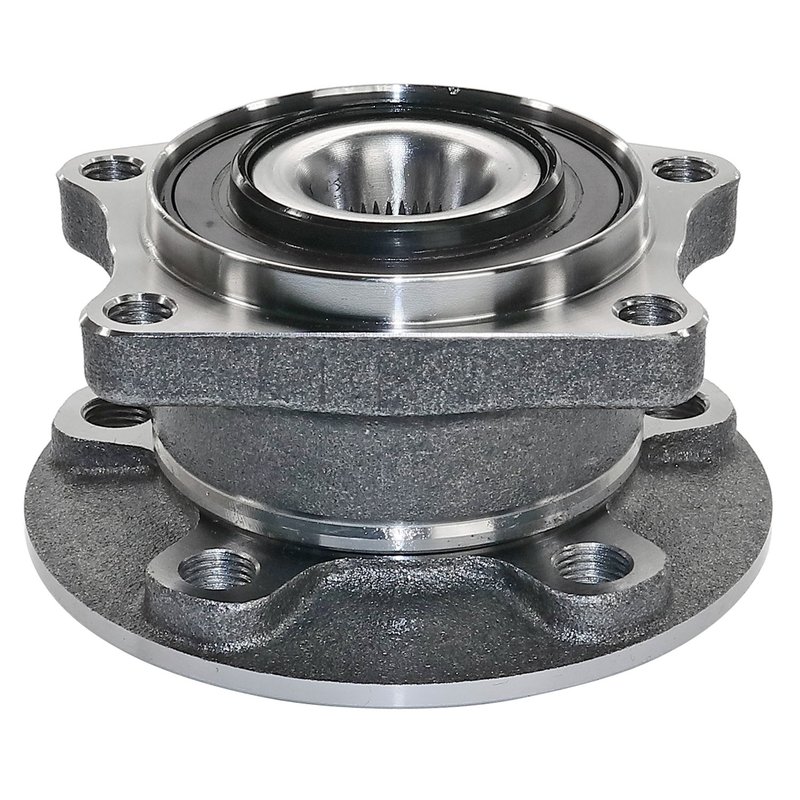

DuraGo 295-12273 Wheel Bearing and Hub Assembly - Rear

Durable Wheel Bearing and Hub Assembly for Volvo XC90

The DuraGo 295-12273 wheel bearing and hub assembly is engineered to meet the specific requirements of the Volvo XC90. Designed for driven axles, this assembly ensures reliable performance and precise fitment for your vehicle's driveline system.

• Compatible with Volvo XC90 models requiring a driven hub assembly
• 36 spline quantity for secure axle engagement
• Flange bolt hole quantity: 4 with M12 x 1.75 flange bolt size
• Wheel stud size M14 x 1.5 with 5 wheel studs (studs not included)
• Includes an encoder-type Anti Lock Braking System (ABS) sensor
• Flange diameter of 135.8 mm and flange offset of 59 mm
• Brake pilot diameter of 68 mm and wheel pilot diameter of 67 mm
• Trapezoid flange shape for proper mounting and alignment

Technical Details and Specifications

This DuraGo wheel bearing and hub assembly (part number 295-12273) is designed specifically for the driven axle of the Volvo XC90. It features a 36-spline interface to match the axle shaft, ensuring a secure and precise connection. The flange includes 4 bolt holes sized M12 x 1.75, and the assembly supports 5 wheel studs sized M14 x 1.5, although wheel studs are not included. The trapezoid flange shape and flange offset of 59 mm provide proper alignment and fitment within the vehicle's hub system.

Additionally, this hub assembly incorporates an encoder-type ABS sensor, compatible with the Volvo XC90’s anti-lock braking system. The wheel pilot diameter measures 67 mm, while the brake pilot diameter is 68 mm, both critical for proper rotor and wheel alignment. The hub pilot diameter is 87.4 mm, ensuring a snug fit on the axle hub.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Volvo XC90 driven axles
• Resolves issues related to wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function with integrated encoder-type ABS compatibility
• Corrects wheel alignment problems due to flange or pilot diameter wear
• Addresses loose or damaged flange bolt holes affecting wheel security

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel studs match the vehicle specifications. Since wheel studs and flange bolts are not included, reuse existing hardware if in good condition or source replacements separately. Proper torque specifications should be followed for flange bolts and wheel studs to maintain safety and performance. Check ABS sensor connections carefully to ensure proper functionality after installation.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet OEM standards for fit, form, and function. This part is designed to provide reliable service life when installed correctly. Please refer to DuraGo’s warranty policy for specific coverage details related to the 295-12273 part number.
