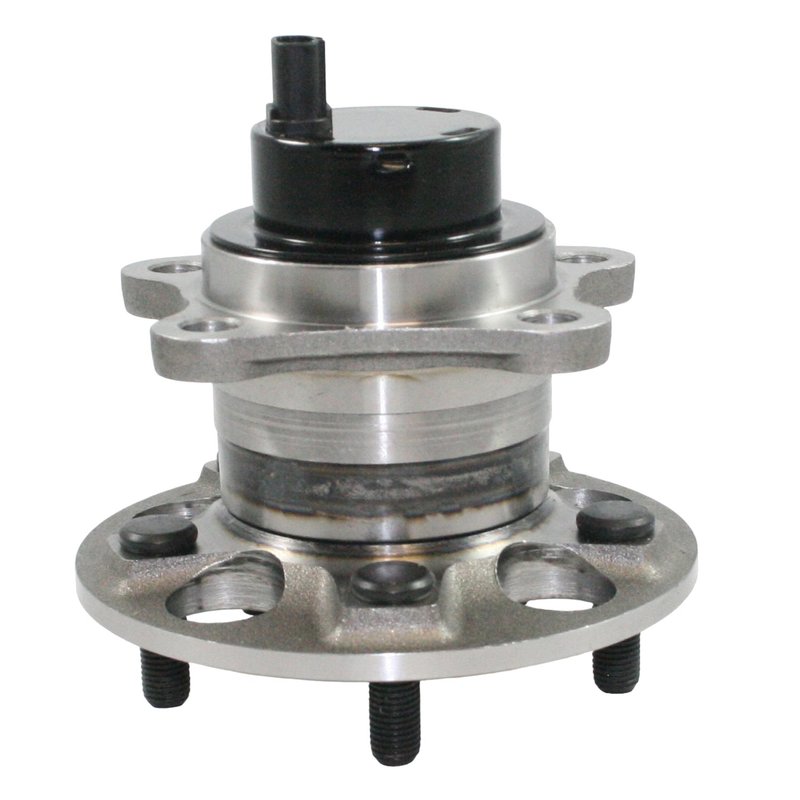

DuraGo 295-12283 Wheel Bearing and Hub Assembly - Rear Right
| Brand | DuraGo 295-12283 |
|---|---|
| Position | Rear Right |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.36 |
| Wheel Pilot Diameter | 60 |
| Brake Pilot Diameter | 2.44 |
| Brake Pilot Diameter | 62 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.3 |
| Hub Pilot Diameter | 83.9 |
| Flange Shape | Modified |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Bolt Hole Diameter | 0.49 |
| Flange Bolt Hole Diameter | 12.5 |
| Flange Offset | 2.83 |
| Flange Offset | 72 |
| Flange Diameter | 152 |
| Flange Diameter | 5.98 |
| ABS Sensor Cord Included | No |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Lexus and Toyota · 13 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Built from quality components to meet strict standards.
ABS sensor included. Sensor-type anti-lock braking system integration.
Cross-references MOOG Hub Assemblies 512283, SKF BR930377 and Timken HA590460 for the same application. See all 11.
DuraGo 295-12283 Rear Right Hub Assembly
DuraGo 295-12283 is a wheel bearing and hub assembly for select Lexus and Toyota rear right applications. It is built with premium components and 100% tested for fit and function, making it a direct replacement option for vehicles that need restored hub performance and reduced rolling friction.
Key Features
- Wheel bearing and hub assembly for the rear right position
- Non-driven hub assembly with ABS sensor type integration
- Wheel stud size: M12 x 1.5
- Wheel stud quantity: 5, with studs included
- Flange shape: modified; flange diameter: 152 mm (5.98 in.)
- Hub pilot diameter: 83.9 mm (3.3 in.)
- Wheel pilot diameter: 60 mm (2.36 in.)
- Brake pilot diameter: 62 mm (2.44 in.)
- Flange bolt hole quantity: 4; flange bolt hole diameter: 12.5 mm (0.49 in.)
- Connector quantity: 1
Detailed Description
This DuraGo hub assembly is engineered for rear right service on 2004-2007 Toyota Highlander, 2004-2006 Lexus RX330, 2006-2008 Lexus RX400h, and 2007-2009 Lexus RX350 models. The assembly uses quality components and is 100% tested to meet DuraGo’s manufacturing standards, with construction aligned to ISO/TS 16949:2002 quality requirements. If you are replacing a worn rear wheel hub on a Lexus RX350, Lexus RX400h, or Toyota Highlander, part number 295-12283 provides the correct non-driven hub configuration with ABS sensor compatibility.
This part cross-references MOOG 512283 and SKF BR930377 for the same application.
What It Helps Fix
- Wheel bearing noise from a worn rear hub assembly
- Excessive wheel play or looseness at the rear right corner
- ABS warning light concerns related to hub sensor function
- Uneven rolling resistance caused by hub wear
- Reduced fuel economy linked to increased friction in the hub
Installation Notes and Tips
Confirm rear right fitment by year, make, and model before installation. Verify the wheel stud size, pilot diameters, flange dimensions, and ABS connector layout against the original part. For Lexus RX330, RX400h, RX350, and Toyota Highlander rear right service, inspect the mating surfaces, axle area, and brake components for wear before installing DuraGo 295-12283.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is produced to meet ISO/TS 16949:2002 quality requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Lexus | RX350 | FWD | Rear Right | — |
| 2008 | Lexus | RX350 | FWD | Rear Right | — |
| 2008 | Lexus | RX400h | FWD | Rear Right | — |
| 2007 | Lexus | RX350 | FWD | Rear Right | — |
| 2007 | Lexus | RX400h | FWD | Rear Right | — |
| 2007 | Toyota | Highlander | FWD | Rear Right | — |
| 2006 | Lexus | RX330 | FWD | Rear Right | — |
| 2006 | Lexus | RX400h | FWD | Rear Right | — |
| 2006 | Toyota | Highlander | FWD | Rear Right | — |
| 2005 | Lexus | RX330 | FWD | Rear Right | — |
| 2005 | Toyota | Highlander | FWD | Rear Right | — |
| 2004 | Lexus | RX330 | FWD | Rear Right | — |
| 2004 | Toyota | Highlander | FWD | Rear Right | — |
| No rows match your filter. | |||||
