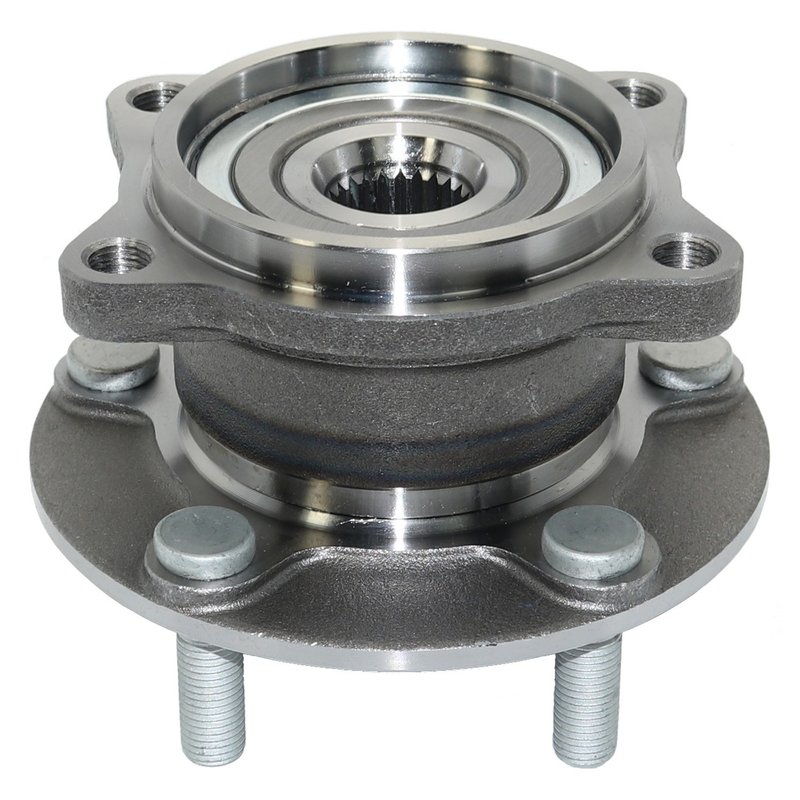

DuraGo 295-12291 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12291 |
|---|---|
| Position | Rear |
| Spline Quantity | 25 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.72 |
| Brake Pilot Diameter | 69 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.46 |
| Hub Pilot Diameter | 88 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 2.33 |
| Flange Offset | 59.2 |
| Flange Diameter | 138 |
| Flange Diameter | 5.43 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Mitsubishi · 13 vehicles |
Driven hub assembly. Built for smooth power transfer with reduced friction.
Wheel studs included. Ready for a more complete hub replacement.
ISO/TS 16949:2002 quality. Manufactured to rigorous industry standards and tested for consistency.
Cross-references MOOG Hub Assemblies 512291, SKF BR930414 and Timken HA590120 for the same application. See all 9.
DuraGo 295-12291 Rear Hub Assembly
DuraGo 295-12291 is a driven wheel bearing and hub assembly built for rear axle service on select Mitsubishi Endeavor models. It is engineered to reduce friction, support smooth wheel rotation, and restore proper hub function with a direct-fit replacement design.
- Driven rear wheel bearing and hub assembly
- Wheel stud size: M12 x 1.5
- Wheel studs included: Yes
- 5 wheel studs and 4 flange bolt holes
- Hub pilot diameter: 88 mm
- Wheel pilot diameter: 67 mm
- Brake pilot diameter: 69 mm
- Flange diameter: 138 mm
- Flange offset: 59.2 mm
- Rectangle flange shape
- 25 spline quantity
- ABS sensor type: non-ABS application
Fitment and application details
Fits 2011 Mitsubishi Endeavor, rear. Fits 2004-2008 Mitsubishi Endeavor, rear. This part cross-references Timken HA590120 for the same application.
Use DuraGo 295-12291 when replacing a worn rear hub assembly on a Mitsubishi Endeavor with a driven rear hub setup. The assembly is manufactured to industry-leading quality standards and tested to meet DuraGo’s internal requirements, with production aligned to ISO/TS 16949:2002 standards. For buyers searching for a rear wheel bearing and hub assembly for 2004-2008 Mitsubishi Endeavor or 2011 Mitsubishi Endeavor rear service, this part provides the key dimensions and stud configuration needed for proper fitment.
Common issues this part can address
- Wheel bearing noise from the rear hub area
- Excessive hub play or looseness
- Uneven wheel rotation caused by hub wear
- Vibration related to a deteriorated rear hub assembly
- Reduced efficiency from increased friction in the hub
Installation notes and quality assurance
Verify rear position, driven hub configuration, spline count, and flange dimensions before installation. Confirm the vehicle is equipped for a non-ABS rear hub assembly and match the wheel stud and bolt specifications to the original setup. DuraGo states that each hub assembly is 100% tested and built with high-quality components to support consistent performance.
DuraGo has over 45 years of aftermarket manufacturing experience, and this hub assembly is produced to meet ISO/TS 16949:2002 quality standards.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Mitsubishi | Endeavor | SE | AWD | Rear | — |
| 2008 | Mitsubishi | Endeavor | SE | AWD | Rear | — |
| 2008 | Mitsubishi | Endeavor | LS | AWD | Rear | — |
| 2007 | Mitsubishi | Endeavor | SE | AWD | Rear | — |
| 2007 | Mitsubishi | Endeavor | LS | AWD | Rear | — |
| 2006 | Mitsubishi | Endeavor | Limited | AWD | Rear | — |
| 2006 | Mitsubishi | Endeavor | LS | AWD | Rear | — |
| 2005 | Mitsubishi | Endeavor | Limited | AWD | Rear | — |
| 2005 | Mitsubishi | Endeavor | LS | AWD | Rear | — |
| 2005 | Mitsubishi | Endeavor | XLS | AWD | Rear | — |
| 2004 | Mitsubishi | Endeavor | Limited | AWD | Rear | — |
| 2004 | Mitsubishi | Endeavor | LS | AWD | Rear | — |
| 2004 | Mitsubishi | Endeavor | XLS | AWD | Rear | — |
