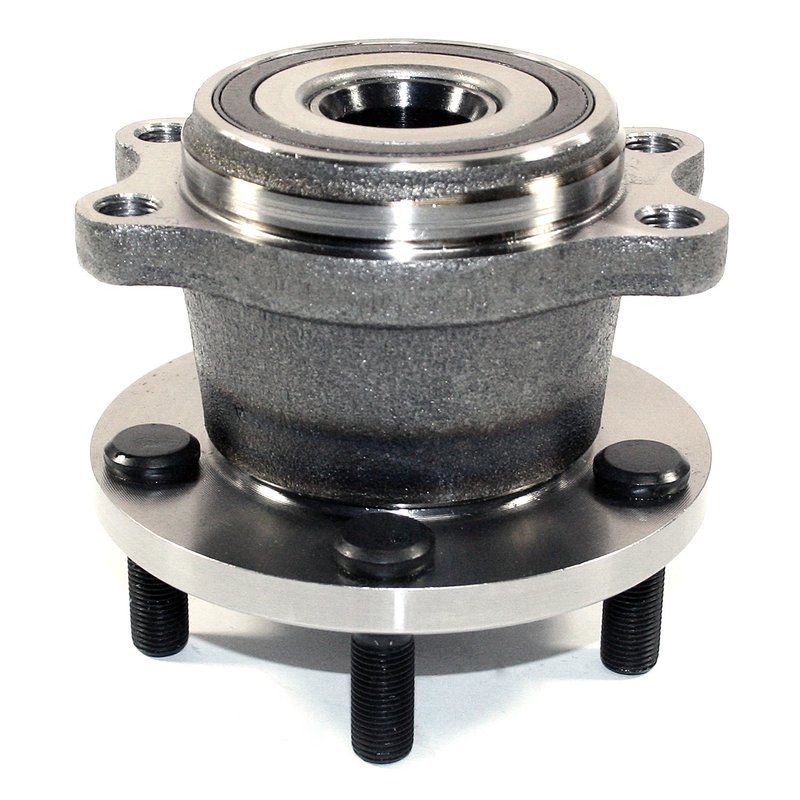

DuraGo 295-12293 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12293 |
|---|---|
| Position | Rear |
| Spline Quantity | 25 |
| 143 | 100 |
| 143 | 3.94 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.25 |
| Wheel Pilot Diameter | 2.2 |
| Wheel Pilot Diameter | 55.9 |
| Brake Pilot Diameter | 2.28 |
| Brake Pilot Diameter | 57.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.31 |
| Hub Pilot Diameter | 84 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 2.58 |
| Flange Offset | 65.5 |
| Flange Diameter | 124 |
| Flange Diameter | 4.88 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Subaru · 10 vehicles |
Driven hub assembly. Built for smooth wheel support and reduced friction.
ABS encoder type. Integrated sensing helps maintain reliable braking system input.
Wheel studs included. Ready with studs already installed for easier assembly.
Cross-references MOOG Hub Assemblies 512293, SKF BR930474 and Timken HA590119 for the same application. See all 10.
DuraGo 295-12293 Rear Wheel Hub Assembly
The DuraGo 295-12293 wheel bearing and hub assembly is built for rear applications on select Subaru Legacy and Subaru Outback models. It combines a driven hub design with ABS encoder functionality to support smooth wheel rotation, stable braking signal input, and OE-style fitment.
Key Features
- Rear wheel bearing and hub assembly for driven applications
- Fits 2005-2009 Subaru Legacy, rear
- Fits 2005-2009 Subaru Outback, rear
- ABS encoder type for vehicles equipped with anti-lock braking systems
- 5 wheel studs with M12 x 1.25 wheel stud size
- 25 spline quantity
- Hub pilot diameter: 84 mm; wheel pilot diameter: 55.9 mm
- Flange diameter: 124 mm; flange offset: 65.5 mm
- Rectangle flange shape with 4 flange bolt holes
Detailed Description
DuraGo 295-12293 is a rear wheel bearing and hub assembly engineered for 2005-2009 Subaru Legacy and 2005-2009 Subaru Outback applications. It is a driven hub assembly with an integrated ABS encoder, making it a direct-fit option for vehicles that rely on wheel speed signal input at the hub. DuraGo states that its premium hub assemblies use quality components, are fully tested, and are manufactured to ISO/TS 16949:2002 quality standards. This part cross-references SKF BR930474 and Timken HA590119 for the same application.
Common Problems This Part Helps Address
- Wheel bearing noise from the rear hub area
- Excessive wheel play or looseness
- ABS warning light caused by hub encoder issues
- Uneven wheel rotation or rough hub operation
- Vibration or instability from a worn rear hub assembly
Installation Notes and Tips
Verify rear fitment by year, model, and driven hub configuration before installation. Confirm the wheel stud size, spline count, flange dimensions, and ABS encoder style against the original part to ensure proper alignment and sensor operation. Inspect the mating surfaces, axle interface, and brake components during replacement so the new hub assembly seats correctly.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is built using high-quality components and produced to ISO/TS 16949:2002 standards for consistent fit and performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Subaru | Legacy | Rear | — |
| 2009 | Subaru | Outback | Rear | — |
| 2008 | Subaru | Legacy | Rear | — |
| 2008 | Subaru | Outback | Rear | — |
| 2007 | Subaru | Legacy | Rear | — |
| 2007 | Subaru | Outback | Rear | — |
| 2006 | Subaru | Legacy | Rear | — |
| 2006 | Subaru | Outback | Rear | — |
| 2005 | Subaru | Legacy | Rear | — |
| 2005 | Subaru | Outback | Rear | — |
