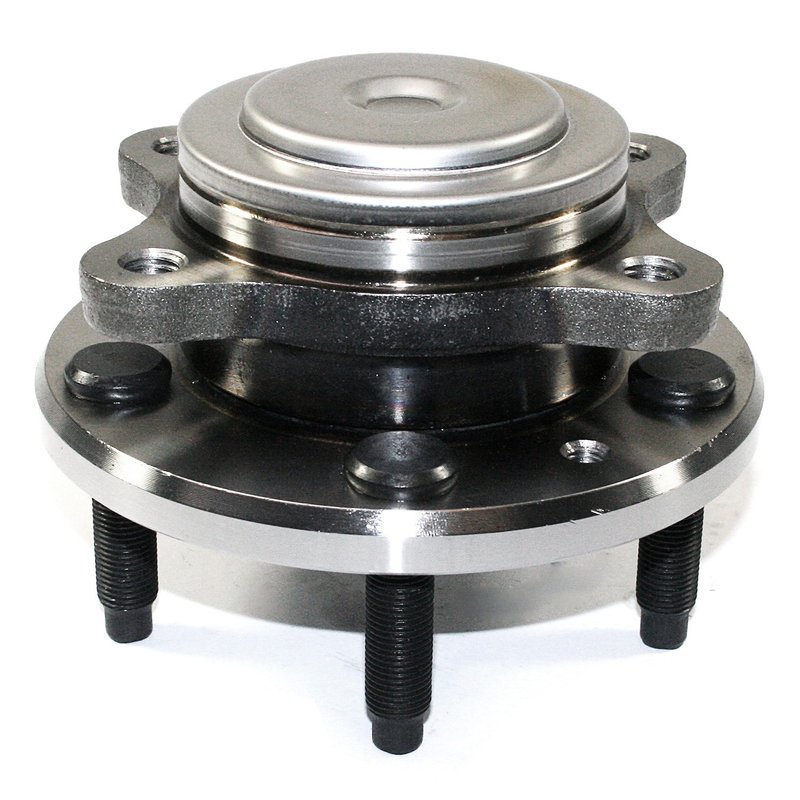

DuraGo 295-12299 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12299 |
|---|---|
| Position | Rear |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 1/2-20 |
| Wheel Pilot Diameter | 2.49 |
| Wheel Pilot Diameter | 63.2 |
| Brake Pilot Diameter | 2.67 |
| Brake Pilot Diameter | 67.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.44 |
| Hub Pilot Diameter | 87.3 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.71 |
| Flange Offset | 43.5 |
| Flange Diameter | 145.7 |
| Flange Diameter | 5.74 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Ford and Mercury · 18 vehicles |
OE-style hub assembly. Built as a non-driven wheel bearing and hub assembly for straightforward replacement.
ABS encoder included. Integrated anti-lock braking system sensing helps maintain reliable wheel-speed input.
Wheel studs included. Ready with studs installed for a cleaner, more complete hub service.
Cross-references MOOG Hub Assemblies 512299, 5F9Z1104BA and 5F932C299BE for the same application. See all 9.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12299 wheel bearing and hub assembly is built for rear applications on select Ford, Mercury, and Lincoln-platform vehicles that use a non-driven hub design with ABS encoder functionality. It is engineered to restore smooth wheel rotation, reduce friction, and support consistent braking and wheel-speed signal performance.
- Rear wheel bearing and hub assembly for non-driven applications
- ABS encoder type for vehicles with anti-lock braking systems
- 5 wheel studs included with 1/2-20 wheel stud size
- 4-bolt flange pattern with M12 x 1.75 flange bolts
- Hub pilot diameter: 3.44 in. / 87.3 mm
- Wheel pilot diameter: 2.49 in. / 63.2 mm
- Brake pilot diameter: 2.67 in. / 67.9 mm
- Flange diameter: 5.74 in. / 145.7 mm
- Flange offset: 1.71 in. / 43.5 mm
Fitment and Application Details
Compatible with rear applications on 2005-2007 Ford Five Hundred, 2005-2007 Ford Freestyle, 2005-2007 Mercury Montego, 2008-2009 Ford Taurus, 2008-2009 Ford Taurus X, and 2008-2009 Mercury Sable. DuraGo 295-12299 is a direct-fit style solution for these rear hub applications where the vehicle uses ABS encoder sensing.
This part cross-references MOOG Hub Assemblies 512299 for the same application.
What This Hub Assembly Helps Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive wheel play or looseness at the hub
- ABS warning light concerns related to encoder-equipped hubs
- Uneven wheel rotation caused by hub wear
- Reduced driveline efficiency from increased hub friction
Installation Notes and Tips
Verify rear fitment, ABS encoder style, flange bolt pattern, and pilot diameters before installation. Confirm the wheel stud size and hub dimensions against the original part to ensure proper seating and brake component alignment. For best results, inspect the mating surfaces, fasteners, and surrounding suspension components during replacement.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The 295-12299 is produced to meet ISO/TS 16949:2002 quality requirements.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Ford | Taurus | — | FWD | Rear | — |
| 2009 | Ford | Taurus X | — | FWD | Rear | — |
| 2009 | Mercury | Sable | — | — | Rear | — |
| 2008 | Ford | Taurus | — | FWD | Rear | — |
| 2008 | Ford | Taurus X | — | FWD | Rear | — |
| 2008 | Mercury | Sable | — | — | Rear | — |
| 2007 | Ford | Five Hundred | — | FWD | Rear | — |
| 2007 | Ford | Freestyle | — | FWD | Rear | — |
| 2007 | Mercury | Montego | Premier | FWD | Rear | — |
| 2007 | Mercury | Montego | Luxury | FWD | Rear | — |
| 2006 | Ford | Five Hundred | — | FWD | Rear | — |
| 2006 | Ford | Freestyle | — | FWD | Rear | — |
| 2006 | Mercury | Montego | Premier | FWD | Rear | — |
| 2006 | Mercury | Montego | Luxury | FWD | Rear | — |
| 2005 | Ford | Five Hundred | — | FWD | Rear | — |
| 2005 | Ford | Freestyle | — | FWD | Rear | — |
| 2005 | Mercury | Montego | Premier | FWD | Rear | — |
| 2005 | Mercury | Montego | Luxury | FWD | Rear | — |
