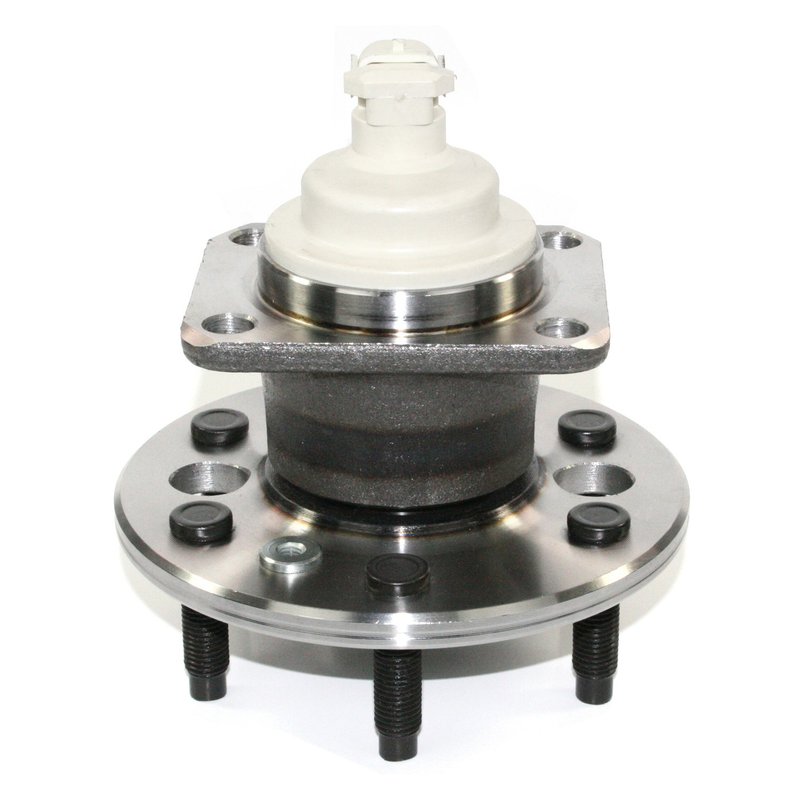

DuraGo 295-12309 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12309 |
|---|---|
| Position | Rear |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.82 |
| Hub Pilot Diameter | 71.7 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Bolt Hole Diameter | 0.47 |
| Flange Bolt Hole Diameter | 12 |
| Flange Offset | 2.55 |
| Flange Offset | 64.7 |
| Flange Diameter | 150.5 |
| Flange Diameter | 5.93 |
| ABS Sensor Cord Included | No |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Buick, Chevrolet, Pontiac, and Saturn · 12 vehicles |
Premium hub assembly. Built with quality components and 100% tested for consistent performance.
ABS sensor type. Integrated sensor support for anti-lock braking systems.
Non-driven design. Made for hub applications without drive function.
Cross-references MOOG Hub Assemblies 512309, SKF BR930632 and Timken HA590116 for the same application. See all 8.
DuraGo 295-12309 Rear Hub Assembly
The DuraGo 295-12309 wheel bearing and hub assembly is built for rear applications that use a rectangular 4-bolt hole mounting flange and ABS sensor monitoring. It is a direct-fit replacement for select Chevrolet Uplander, Pontiac Montana, Buick Terraza, and Saturn Relay models, helping restore smooth wheel rotation and stable hub operation.
- Rear wheel bearing and hub assembly for non-driven applications
- ABS sensor type: sensor
- Wheel stud size: M12 x 1.5
- Wheel studs included: yes
- Flange shape: rectangle
- Flange bolt hole quantity: 4
- Hub pilot diameter: 71.7 mm
- Wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm
- Flange diameter: 150.5 mm
Fitment Details
Fits 2006-2009 Chevrolet Uplander, rear, rectangular 4-bolt hole mounting flange. Fits 2006-2009 Pontiac Montana, rear, rectangular 4-bolt hole mounting flange. Fits 2007 Buick Terraza, rear, rectangular 4-bolt hole mounting flange. Fits 2006-2007 Saturn Relay, rear, rectangular 4-bolt hole mounting flange. Fits 2006 Buick Terraza, rear, 4 hole rectangular flange.
This part cross-references Timken HA590116 and SKF BR930632 for the same application.
What This Hub Assembly Helps Address
- Wheel bearing noise from a worn rear hub assembly
- ABS warning light concerns related to hub sensor function
- Excessive wheel play or looseness at the rear hub
- Uneven wheel rotation caused by bearing wear
- Vibration or roughness from a deteriorated hub unit
Installation Notes and Tips
Verify rear fitment by matching the rectangular 4-bolt flange design, ABS sensor type, and hub dimensions before installation. Confirm the vehicle application for Chevrolet Uplander, Pontiac Montana, Buick Terraza, or Saturn Relay against the existing hub assembly and brake interface. The flange bolts are not included, so reuse or source the correct fasteners as needed.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards and uses quality components in assembly. Part number 295-12309 is engineered as a replacement hub for select rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Chevrolet | Uplander | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2009 | Pontiac | Montana | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2008 | Chevrolet | Uplander | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2008 | Pontiac | Montana | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2007 | Buick | Terraza | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2007 | Chevrolet | Uplander | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2007 | Pontiac | Montana | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2007 | Saturn | Relay | — | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2006 | Buick | Terraza | FWD | Rear | 4 Hole Rectangular Flange |
| 2006 | Chevrolet | Uplander | FWD | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2006 | Pontiac | Montana | FWD | Rear | Rectangular 4-Bolt Hole Mounting Flange |
| 2006 | Saturn | Relay | FWD | Rear | Rectangular 4-Bolt Hole Mounting Flange |
