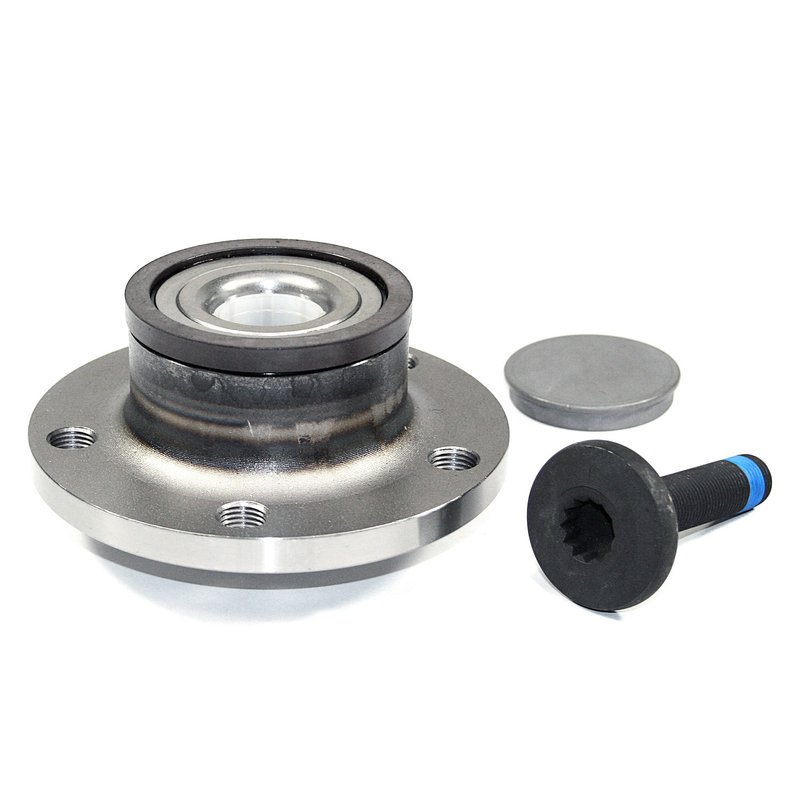

DuraGo 295-12319 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12319

The DuraGo 295-12319 wheel bearing and hub assembly is engineered for reliable performance in select Audi and Volkswagen models. Designed as a non-driven hub assembly, it supports smooth wheel rotation and integrates an ABS encoder for enhanced braking system compatibility.

• Compatible with Audi and Volkswagen vehicles including Arteon, Beetle, CC, Eos, Golf, Jetta, Passat, Q3, Tiguan, and TT
• Wheel stud size: M14 x 1.5 with 5 wheel studs (studs not included)
• Wheel pilot diameters: 2.24 inches (57 mm) and brake pilot diameters: 2.56 inches (65 mm)
• Hub pilot diameter: 3.07 inches (77.9 mm)
• Flange diameter: 5.37 inches (136.5 mm) with a flange offset of 1.95 inches (49.6 mm)
• Equipped with an ABS encoder for anti-lock braking system functionality

Technical Details and Specifications

This DuraGo wheel bearing and hub assembly (part number 295-12319) is designed as a non-driven hub, meaning it is intended for wheels that are not powered by the drivetrain. The assembly features a wheel stud size of M14 x 1.5 and accommodates five wheel studs, although the studs themselves are not included. The wheel pilot diameter measures 2.24 inches (57 mm), while the brake pilot diameter is 2.56 inches (65 mm), ensuring precise fitment with compatible brake components. The hub pilot diameter is 3.07 inches (77.9 mm), providing a secure mounting surface for the hub assembly. The flange diameter of 5.37 inches (136.5 mm) and flange offset of 1.95 inches (49.6 mm) are critical for proper wheel alignment and fitment. Additionally, the assembly includes an ABS encoder to maintain anti-lock braking system functionality on equipped vehicles.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with a range of Audi and Volkswagen models, including:

• Audi Arteon, Q3, TT
• Volkswagen Beetle, CC, Eos, Golf, Jetta, Passat, Tiguan

It is designed to replace worn or damaged non-driven wheel hubs, restoring proper wheel rotation and ABS sensor operation.

Common Issues Addressed by This Hub Assembly

• Wheel bearing noise or roughness during rotation
• ABS warning light due to faulty or damaged ABS encoder
• Excessive wheel play or looseness
• Vibration or wobbling at certain speeds
• Uneven tire wear caused by hub misalignment

Installation Notes and Tips

When installing the DuraGo 295-12319 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the wheel and brake components carefully to access the hub. Verify the wheel pilot, brake pilot, and hub pilot diameters match the vehicle specifications. Since wheel studs are not included, inspect existing studs for wear or damage and replace if necessary. Proper torque specifications should be followed for mounting bolts and wheel lug nuts. Confirm ABS sensor connections are secure to maintain anti-lock braking system functionality.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-12319 part number undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult the product packaging or manufacturer for exact warranty terms.
