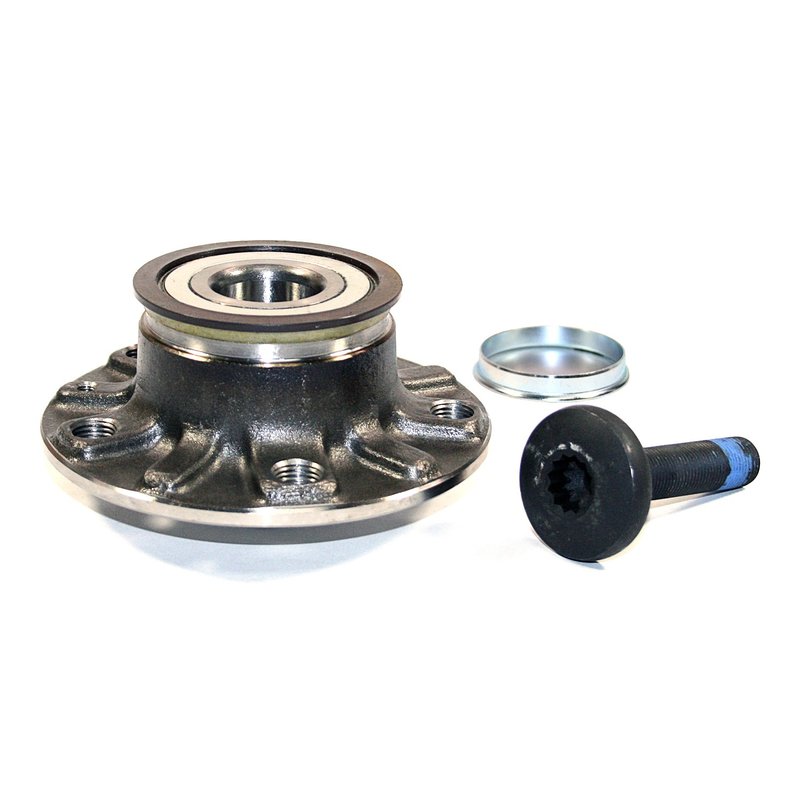

DuraGo 295-12336 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12336 |
|---|---|
| Position | Rear |
| 143 | 112 |
| 143 | 4.41 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Pilot Diameter | 2.24 |
| Wheel Pilot Diameter | 57 |
| Brake Pilot Diameter | 2.56 |
| Brake Pilot Diameter | 65 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | No |
| Hub Pilot Diameter | 2.91 |
| Hub Pilot Diameter | 74 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.65 |
| Flange Offset | 42 |
| Flange Diameter | 136.5 |
| Flange Diameter | 5.37 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Audi and Volkswagen · 60 vehicles |
OE direct replacement. Restores smooth operation and helps reduce friction.
100% tested. Each hub assembly meets strict quality standards.
ABS encoder type. Integrated sensing supports reliable braking system operation.
Cross-references MOOG Hub Assemblies 512336, SKF BR930524 and Timken HA590159 for the same application. See all 8.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12336 wheel bearing and hub assembly is built for rear applications on select Volkswagen and Audi models. It combines the hub and bearing into one service unit to help restore smooth wheel rotation, reduce friction, and support fuel economy after wear-related replacement.
- Rear wheel bearing and hub assembly for non-driven applications
- ABS encoder type: Yes
- Wheel stud size: M14 x 1.5
- Wheel stud quantity: 5
- Wheel pilot diameter: 57 mm
- Brake pilot diameter: 65 mm
- Hub pilot diameter: 74 mm
- Flange diameter: 136.5 mm
- Flange offset: 42 mm
- Cross-references MOOG 512336 and Timken HA590159 for the same application
Fitment Coverage
- Fits 2015-2019 Volkswagen e-Golf, rear
- Fits 2011-2019 Volkswagen Golf, rear, 30 mm bearing
- Fits 2006-2019 Volkswagen GTI, rear
- Fits 2004-2018 Audi A3, rear
- Fits 2015-2018 Volkswagen Golf SportWagen, rear
- Fits 2016-2017 Audi A3 Sportback e-tron, rear
- Fits 2012-2014 Volkswagen Beetle, rear
- Fits 2011-2014 Volkswagen Jetta, rear
- Fits 2007-2010 Volkswagen Golf City, rear
Detailed Description
DuraGo 295-12336 is a rear non-driven hub assembly engineered for select Volkswagen Golf, GTI, Jetta, Beetle, e-Golf, Golf SportWagen, Golf City, Audi A3, and Audi A3 Sportback e-tron applications. The unit uses an encoder-style ABS design and is assembled with quality components to support consistent wheel speed signal operation and dependable hub performance. DuraGo states that each hub assembly is fully tested and manufactured to ISO/TS 16949:2002 quality standards.
This part number is a direct service option for rear hub replacement on vehicles that use the listed dimensions and ABS configuration. The DuraGo 295-12336 is also referenced by OE and aftermarket numbers including 1K0598611, 0516238, 7300370, 40533004, and 40533004E.
Common Problems This Part Can Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive friction at the wheel end
- ABS warning light caused by a failing encoder hub
- Wheel play or looseness from hub wear
- Uneven wheel rotation or rough road feel
Installation Notes and Quality Assurance
Verify rear fitment by year, model, and the listed dimensions before installation. Confirm the ABS encoder style, wheel stud size, pilot diameters, and flange measurements against the original hub assembly on the vehicle. This part is for non-driven rear applications only and should be matched to the correct side and suspension configuration during service.
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The brand’s aftermarket experience and ISO/TS 16949:2002 manufacturing focus support consistent fit and function for service replacement work.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2019 | Volkswagen | e-Golf | — | — | — | — | Rear | — |
| 2019 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2019 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2018 | Audi | A3 | — | — | — | — | Rear | — |
| 2018 | Volkswagen | e-Golf | — | — | — | — | Rear | — |
| 2018 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2018 | Volkswagen | Golf SportWagen | — | FWD | — | — | Rear | — |
| 2018 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2017 | Audi | A3 | — | — | — | — | Rear | — |
| 2017 | Audi | A3 Sportback e-tron | — | — | — | — | Rear | — |
| 2017 | Volkswagen | e-Golf | — | — | — | — | Rear | — |
| 2017 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2017 | Volkswagen | Golf SportWagen | — | FWD | — | — | Rear | — |
| 2017 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2016 | Audi | A3 | — | — | — | — | Rear | — |
| 2016 | Audi | A3 Sportback e-tron | — | — | — | — | Rear | — |
| 2016 | Volkswagen | e-Golf | — | — | — | — | Rear | — |
| 2016 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2016 | Volkswagen | Golf SportWagen | — | — | — | — | Rear | — |
| 2016 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2015 | Audi | A3 | — | — | — | — | Rear | — |
| 2015 | Volkswagen | e-Golf | — | — | — | — | Rear | — |
| 2015 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2015 | Volkswagen | Golf SportWagen | — | — | — | — | Rear | — |
| 2015 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2014 | Audi | A3 | — | — | — | — | Rear | — |
| 2014 | Volkswagen | Beetle | — | — | 2.5L | L5 | Rear | — |
| 2014 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2014 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2014 | Volkswagen | Jetta | Sedan | — | — | — | Rear | — |
| 2013 | Audi | A3 | — | — | — | — | Rear | — |
| 2013 | Volkswagen | Beetle | — | — | 2.5L | L5 | Rear | — |
| 2013 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2013 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2013 | Volkswagen | Jetta | Sedan | — | — | — | Rear | — |
| 2012 | Audi | A3 | — | — | — | — | Rear | — |
| 2012 | Volkswagen | Beetle | — | — | 2.5L | L5 | Rear | — |
| 2012 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2012 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2012 | Volkswagen | Jetta | Sedan | — | — | — | Rear | — |
| 2011 | Audi | A3 | — | — | — | — | Rear | — |
| 2011 | Volkswagen | Golf | — | — | — | — | Rear | 30 mm Bearing |
| 2011 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2011 | Volkswagen | Jetta | Sedan | — | — | — | Rear | — |
| 2010 | Audi | A3 | — | — | — | — | Rear | — |
| 2010 | Volkswagen | Golf City | — | — | — | — | Rear | — |
| 2010 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2009 | Audi | A3 | — | — | — | — | Rear | — |
| 2009 | Volkswagen | Golf City | — | — | — | — | Rear | — |
| 2009 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2008 | Audi | A3 | — | — | — | — | Rear | — |
| 2008 | Volkswagen | Golf City | — | — | — | — | Rear | — |
| 2008 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2007 | Audi | A3 | — | — | — | — | Rear | — |
| 2007 | Volkswagen | Golf City | — | — | — | — | Rear | — |
| 2007 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2006 | Audi | A3 | — | — | — | — | Rear | — |
| 2006 | Volkswagen | GTI | — | — | — | — | Rear | — |
| 2005 | Audi | A3 | — | — | — | — | Rear | — |
| 2004 | Audi | A3 | — | — | — | — | Rear | — |
