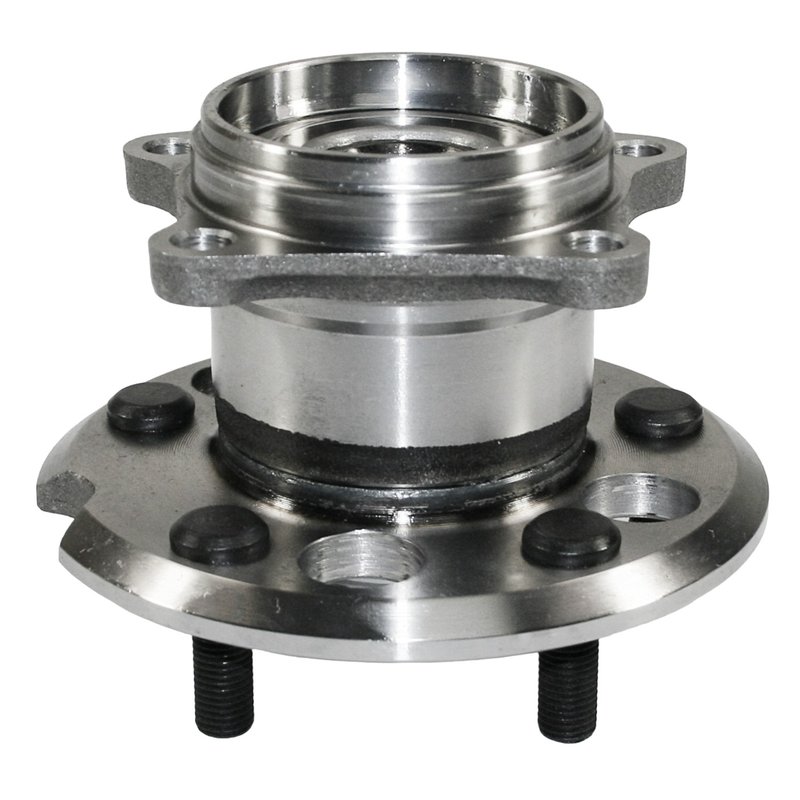

DuraGo 295-12338 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Toyota RAV4

The DuraGo 295-12338 wheel bearing and hub assembly is engineered to meet the specific requirements of Toyota RAV4 models. Designed as a driven hub assembly, it ensures precise fitment and reliable performance for your vehicle's driveline system.

• Compatible with Toyota RAV4 vehicles
• Driven type hub assembly with 26 splines
• 5 wheel studs included, size M12 x 1.5
• Flange bolt hole quantity: 4 with trapezoid flange shape
• Wheel pilot diameter: 2.36 inches (60 mm)
• Brake pilot diameter: 2.44 inches (62 mm)
• Hub pilot diameter: 3.13 inches (79.4 mm)
• Flange diameter: 5.98 inches (151.9 mm) with 0.42 inch (10.7 mm) bolt hole diameter
• Flange offset: 2.72 inches (69 mm)
• Wheel studs included for straightforward installation

Detailed Product Description

The DuraGo 295-12338 wheel bearing and hub assembly is designed specifically for Toyota RAV4 models, providing a driven hub assembly with 26 splines to ensure proper torque transfer and wheel alignment. The assembly features a trapezoid flange shape with four bolt holes, each measuring 0.42 inches (10.7 mm) in diameter, and a flange diameter of 5.98 inches (151.9 mm). The wheel pilot diameter is 2.36 inches (60 mm), while the brake pilot diameter is slightly larger at 2.44 inches (62 mm), allowing for precise brake rotor alignment. The hub pilot diameter measures 3.13 inches (79.4 mm), contributing to a secure fit on the axle shaft. This assembly includes five M12 x 1.5 wheel studs, facilitating a secure wheel mounting process. Note that flange bolts are not included with this part.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota RAV4
• Eliminates wheel noise caused by bearing wear
• Resolves wheel vibration and wobble issues
• Restores proper wheel alignment and stability
• Prevents premature tire wear due to hub assembly failure

Installation Notes and Tips

When installing the DuraGo 295-12338 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and pilot diameters match your Toyota RAV4 specifications. Use proper torque specifications for wheel studs and flange bolts (not included). Since flange bolts are not included, retain the original hardware or source replacements that meet OEM standards. Check for ABS sensor compatibility, as this assembly does not support anti-lock braking system components.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. For detailed warranty information, consult the product documentation or manufacturer resources.
