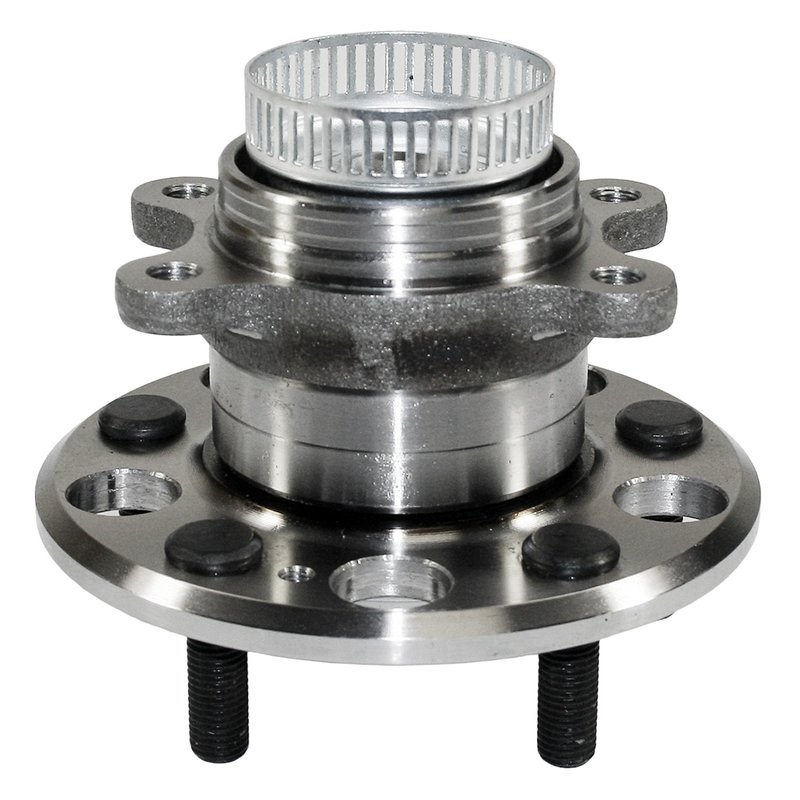

DuraGo 295-12340 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12340

The DuraGo 295-12340 wheel bearing and hub assembly is designed specifically for Hyundai Elantra models. This non-driven hub assembly integrates an ABS tone ring to support anti-lock braking systems, ensuring reliable performance and safety.

• Compatible with Hyundai Elantra vehicles
• Non-driven wheel bearing and hub assembly
• Includes 5 M12 x 1.5 wheel studs
• Features a 46-tooth ABS sensor ring for accurate ABS function
• Modified flange shape with 4 flange bolt holes (M10 x 1.25)
• Wheel pilot diameter of 67 mm and brake pilot diameter of 76 mm
• Flange diameter measures 148 mm with a 59 mm flange offset

Detailed Product Description

The DuraGo 295-12340 wheel bearing and hub assembly is engineered to meet the specific requirements of Hyundai Elantra models. This assembly features a modified flange shape with four M10 x 1.25 flange bolt holes, providing a secure fit. The hub includes five M12 x 1.5 wheel studs, which are included for convenience. The wheel pilot diameter is 67 mm, while the brake pilot diameter is 76 mm, ensuring proper alignment with the vehicle’s braking components.

Equipped with a 46-tooth ABS sensor ring, this assembly supports the vehicle’s anti-lock braking system by providing precise wheel speed data. The flange diameter of 148 mm and flange offset of 59 mm contribute to proper wheel positioning and stability. The hub pilot diameter measures 73 mm, which helps maintain accurate hub alignment during operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Hyundai Elantra
• Resolves wheel noise or vibration caused by bearing wear
• Restores proper ABS sensor function to prevent braking issues
• Corrects wheel alignment problems related to hub damage
• Addresses wheel stud damage or corrosion

Installation Notes and Tips

When installing the DuraGo 295-12340 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes align correctly with the vehicle’s mounting points. Since flange bolts are not included, retain the original hardware or source appropriate replacements. Confirm the ABS tone ring is properly positioned to maintain accurate sensor readings. Torque all fasteners to manufacturer specifications to ensure safe and reliable operation.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet industry standards for durability and performance. The part number 295-12340 undergoes quality control inspections to ensure fitment accuracy and functional integrity. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship.
