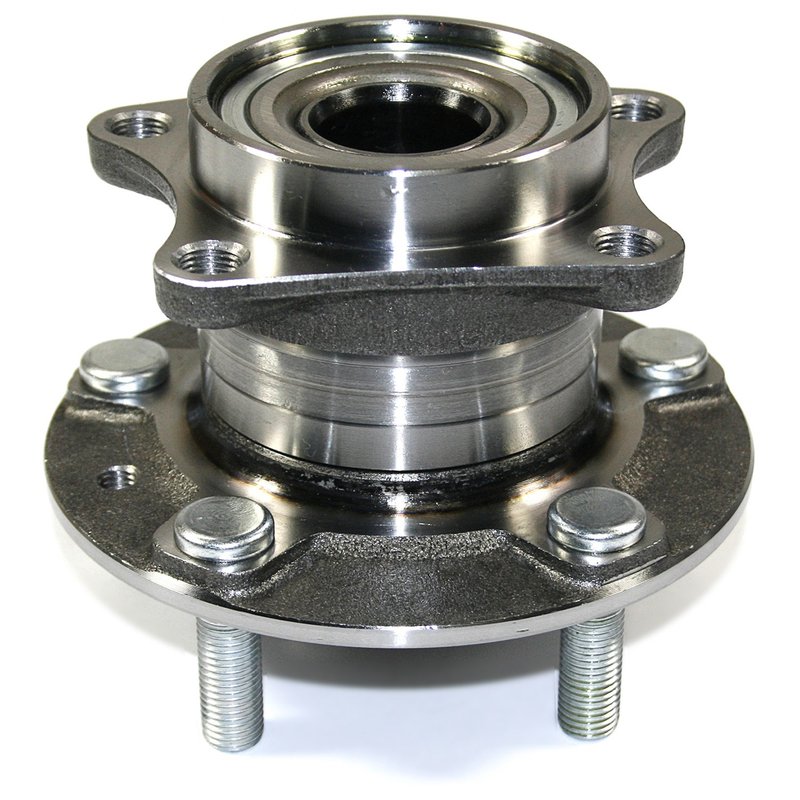

DuraGo 295-12350 Wheel Bearing and Hub Assembly - Rear

Durable Wheel Bearing and Hub Assembly for Mazda CX-7

The DuraGo 295-12350 wheel bearing and hub assembly is engineered to meet the specific requirements of the Mazda CX-7. Designed as a driven hub assembly, it ensures reliable performance and precise fitment for your vehicle's driveline system.

• Compatible with Mazda CX-7 models
• Driven type hub assembly with 28 spline quantity
• Flange bolt hole quantity: 4 with M12 x 1.25 flange bolt size
• Includes 5 wheel studs sized M12 x 1.5
• Offset flange shape with 2.48 flange offset
• Wheel pilot diameter of 67 mm and brake pilot diameter of 72 mm
• Flange diameter measures 140 mm for proper mounting

Technical Specifications and Features

This DuraGo wheel bearing and hub assembly (part number 295-12350) is designed with a 28 spline count to match the Mazda CX-7’s drivetrain. The assembly features a driven hub type, ensuring it is suitable for the driven axle side. The flange has an offset shape with a 2.48-inch offset, providing the correct positioning for the wheel and brake components. It includes five M12 x 1.5 wheel studs, which are pre-installed to facilitate wheel mounting. The flange bolt hole count is four, with M12 x 1.25 bolt size, although flange bolts are not included. The wheel pilot diameter is 67 mm, and the brake pilot diameter is 72 mm, both critical for proper alignment and fitment. The flange diameter is 140 mm, ensuring compatibility with the Mazda CX-7’s hub assembly requirements.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Mazda CX-7
• Resolves wheel vibration or noise caused by faulty bearings
• Addresses uneven tire wear due to hub misalignment
• Fixes ABS sensor issues related to hub assembly (note: this assembly does not include ABS functionality)
• Restores proper wheel mounting and stability

Installation Notes and Tips

When installing the DuraGo 295-12350 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and pilot diameters match the original equipment specifications for the Mazda CX-7. Use the correct torque specifications for flange bolts and wheel studs to maintain safety and performance. Note that flange bolts are not included with this assembly, so retain or replace existing hardware as needed. Proper cleaning of the mounting surface is recommended before installation to ensure a secure fit.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. For detailed warranty information, refer to the product documentation or contact the manufacturer directly.
