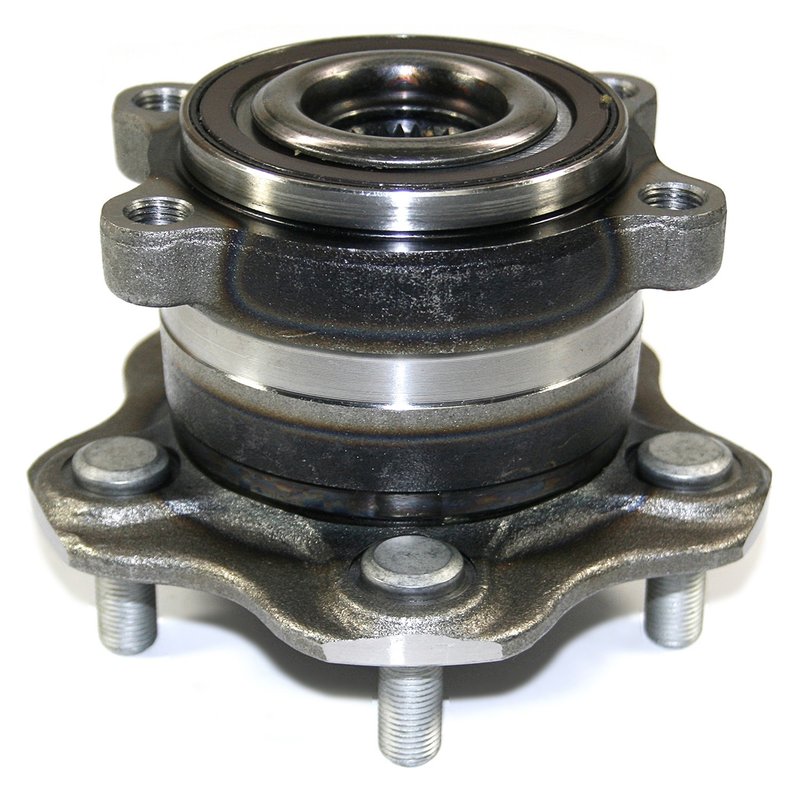

DuraGo 295-12363 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12363

The DuraGo 295-12363 wheel bearing and hub assembly is engineered for reliable driveline performance on Nissan Murano vehicles. Designed to meet OEM specifications, this driven hub assembly supports smooth wheel rotation and integrates an ABS encoder for enhanced braking control.

• Compatible with Nissan Murano models
• Driven type hub assembly with 29 splines
• Includes 5 M12 x 1.25 wheel studs
• Equipped with ABS encoder for anti-lock braking system
• Flange diameter of 148 mm with rectangular flange shape
• Wheel pilot diameter of 66 mm and brake pilot diameter of 68 mm
• Flange offset measures 69 mm ensuring proper fitment

Technical Specifications and Features

This DuraGo wheel bearing and hub assembly (part number 295-12363) features a 29-spline driven hub designed to fit Nissan Murano vehicles. The assembly includes five M12 x 1.25 wheel studs and a flange with four bolt holes, sized M12 x 1.25, arranged in a rectangular pattern. The flange diameter measures 148 mm (5.83 inches), with a flange offset of 69 mm (2.72 inches), ensuring precise alignment with the vehicle’s suspension components. The wheel pilot diameter is 66 mm (2.6 inches), and the brake pilot diameter is 68 mm (2.68 inches), providing accurate centering for wheels and brake rotors. This assembly also incorporates an ABS encoder type anti-lock braking system sensor, which is essential for maintaining vehicle stability and braking performance.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Nissan Murano
• Addresses wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function for anti-lock braking systems
• Corrects wheel alignment issues related to hub flange or pilot diameter wear
• Improves wheel stud integrity for secure wheel mounting

Installation Notes and Tips

When installing the DuraGo 295-12363 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s mounting points. Use the included wheel studs for proper wheel attachment. Verify the ABS encoder sensor connection to maintain anti-lock braking system functionality. It is recommended to torque all fasteners to manufacturer specifications and inspect related suspension components during installation.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. This part is designed for long service life under normal operating conditions. Please refer to DuraGo’s warranty policy for specific coverage details.
