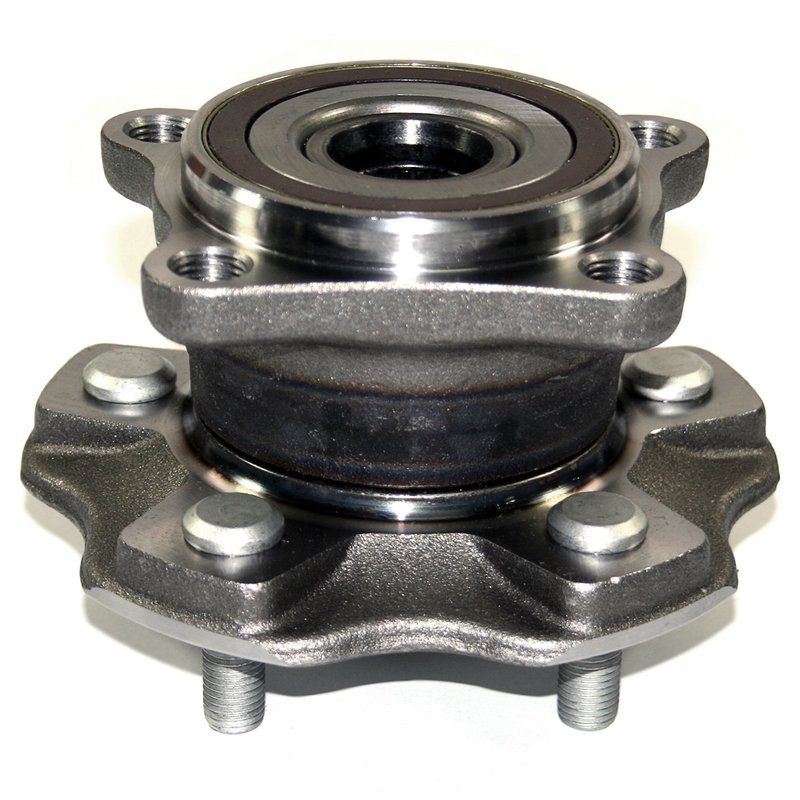

DuraGo 295-12365 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12365 |
|---|---|
| Position | Rear |
| Spline Quantity | 26 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.36 |
| Wheel Pilot Diameter | 60 |
| Brake Pilot Diameter | 2.44 |
| Brake Pilot Diameter | 62 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.43 |
| Hub Pilot Diameter | 87 |
| Flange Shape | Trapezoid |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 2.56 |
| Flange Offset | 65 |
| Flange Diameter | 152 |
| Flange Diameter | 5.98 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M14 x 1.5 |
| Fits | Lexus and Toyota · 33 vehicles |
Wheel bearing and hub assembly. Complete hub unit helps reduce friction and improve fuel economy.
100% tested. Each hub assembly is checked to meet strict quality standards.
ABS encoder included. Integrated anti-lock braking system sensing for reliable operation.
Cross-references MOOG Hub Assemblies 512365, SKF BR930775 and Timken HA590363 for the same application. See all 6.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12365 wheel bearing and hub assembly is built for rear applications on select Toyota Highlander and Lexus RX models. It combines the hub, bearing, and ABS encoder function in one service part to help restore smooth wheel rotation and consistent wheel speed signal performance.
- Rear wheel bearing and hub assembly for driven applications
- ABS encoder type hub assembly
- 5 wheel studs with M12 x 1.5 wheel stud size
- 26 spline quantity
- Hub pilot diameter: 87 mm
- Brake pilot diameter: 62 mm
- Wheel pilot diameter: 60 mm
- Flange diameter: 152 mm with trapezoid flange shape
- Flange offset: 65 mm
- Flange bolt hole quantity: 4
- Flange bolt size: M14 x 1.5
Fitment Details
Compatible with rear hub service on these vehicles:
- Fits 2014-2022 Toyota Highlander, rear
- Fits 2010-2019 Lexus RX350, rear
- Fits 2018-2019 Lexus RX350L, rear
- Fits 2010-2019 Lexus RX450h, rear
- Fits 2018-2019 Lexus RX450hL, rear
This part cross-references SKF BR930775 and Timken HA590363 for the same application.
What This Part Helps Address
- Rear wheel bearing noise or growling
- Excessive hub play or looseness
- ABS warning light concerns related to wheel speed signal issues
- Uneven wheel rotation caused by worn hub components
- Vibration or roughness from a deteriorated rear hub assembly
Installation Notes
Verify rear fitment by year, model, and driveline configuration before installation. Inspect the mating surfaces, axle splines, and ABS sensor interface during service, and torque all fasteners to the vehicle manufacturer’s specifications. Because this is a driven hub assembly, confirm proper axle engagement and wheel speed sensor alignment during reassembly.
Quality Assurance
DuraGo states that its hub assemblies are assembled with quality components, fully tested, and manufactured to ISO/TS 16949:2002 standards. Part number 295-12365 is built to meet the requirements of rear hub service on Toyota Highlander and Lexus RX applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Highlander | AWD | Rear | — |
| 2021 | Toyota | Highlander | AWD | Rear | — |
| 2020 | Toyota | Highlander | AWD | Rear | — |
| 2019 | Lexus | RX350 | AWD | Rear | — |
| 2019 | Lexus | RX350L | AWD | Rear | — |
| 2019 | Lexus | RX450h | — | Rear | — |
| 2019 | Lexus | RX450hL | — | Rear | — |
| 2019 | Toyota | Highlander | AWD | Rear | — |
| 2018 | Lexus | RX350 | AWD | Rear | — |
| 2018 | Lexus | RX350L | AWD | Rear | — |
| 2018 | Lexus | RX450h | — | Rear | — |
| 2018 | Lexus | RX450hL | — | Rear | — |
| 2018 | Toyota | Highlander | AWD | Rear | — |
| 2017 | Lexus | RX350 | AWD | Rear | — |
| 2017 | Lexus | RX450h | — | Rear | — |
| 2017 | Toyota | Highlander | AWD | Rear | — |
| 2016 | Lexus | RX350 | AWD | Rear | — |
| 2016 | Lexus | RX450h | AWD | Rear | — |
| 2016 | Toyota | Highlander | AWD | Rear | — |
| 2015 | Lexus | RX350 | AWD | Rear | — |
| 2015 | Lexus | RX450h | AWD | Rear | — |
| 2015 | Toyota | Highlander | AWD | Rear | — |
| 2014 | Lexus | RX350 | AWD | Rear | — |
| 2014 | Lexus | RX450h | AWD | Rear | — |
| 2014 | Toyota | Highlander | AWD | Rear | — |
| 2013 | Lexus | RX350 | AWD | Rear | — |
| 2013 | Lexus | RX450h | AWD | Rear | — |
| 2012 | Lexus | RX350 | AWD | Rear | — |
| 2012 | Lexus | RX450h | AWD | Rear | — |
| 2011 | Lexus | RX350 | AWD | Rear | — |
| 2011 | Lexus | RX450h | AWD | Rear | — |
| 2010 | Lexus | RX350 | AWD | Rear | — |
| 2010 | Lexus | RX450h | AWD | Rear | — |
