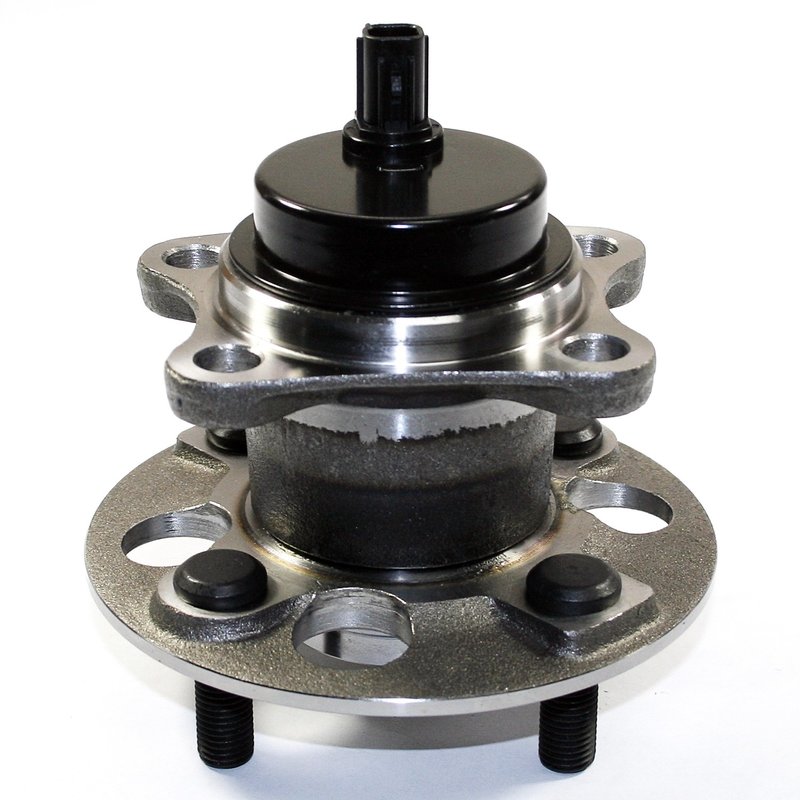

DuraGo 295-12370 Wheel Bearing and Hub Assembly - Rear

Durable Wheel Bearing and Hub Assembly for Toyota Prius C and Yaris

The DuraGo 295-12370 wheel bearing and hub assembly is engineered to meet the specific requirements of Toyota Prius C and Yaris models. Designed as a non-driven hub assembly with integrated ABS sensor compatibility, this part ensures reliable performance and safety for your vehicle's driveline system.

• Compatible with Toyota Prius C and Yaris models
• Part number 295-12370 for precise identification
• Non-driven hub assembly with ABS sensor integration
• Includes 4 M12 x 1.5 wheel studs for secure mounting
• Modified flange shape with 4 bolt holes and 0.49 inch diameter
• Wheel pilot diameter of 2.13 inches and brake pilot diameter of 2.17 inches
• Flange diameter measures 5.31 inches with a 2.36 inch flange offset
• Hub pilot diameter of 2.91 inches for accurate fitment
• ABS sensor type with one connector included (sensor cord not included)

Detailed Product Description

The DuraGo 295-12370 wheel bearing and hub assembly is designed specifically for Toyota Prius C and Yaris vehicles, providing a precise fit and reliable operation. This non-driven hub assembly features a modified flange shape with four bolt holes, each measuring 0.49 inches in diameter, ensuring secure attachment to the vehicle's axle. The assembly includes four M12 x 1.5 wheel studs, facilitating proper wheel mounting and alignment.

With a wheel pilot diameter of 2.13 inches and a brake pilot diameter of 2.17 inches, this hub assembly maintains proper positioning of the wheel and brake components. The flange diameter of 5.31 inches and flange offset of 2.36 inches contribute to the correct spatial alignment within the driveline system. Additionally, the hub pilot diameter of 2.91 inches supports accurate centering on the axle.

Equipped with an ABS sensor type and one connector, this assembly supports the vehicle's anti-lock braking system, enhancing safety and control. Note that the ABS sensor cord is not included with this part.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Prius C and Yaris
• Resolves wheel noise or vibration caused by bearing wear
• Addresses ABS sensor faults related to hub assembly issues
• Corrects wheel alignment problems due to hub pilot diameter wear
• Improves braking performance by maintaining proper brake pilot diameter

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel studs align correctly with the vehicle hub. Since flange bolts are not included, retain or replace existing hardware as needed. Confirm ABS sensor connector compatibility and proper connection during installation to maintain ABS functionality.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet OEM specifications for fit, form, and function. This part number 295-12370 undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier.
