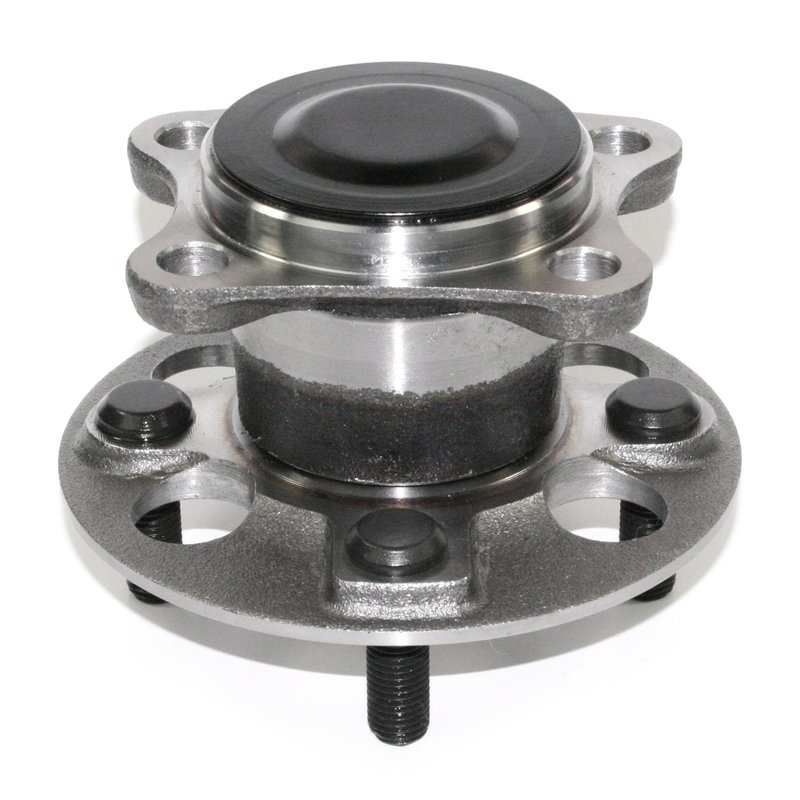

DuraGo 295-12371 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12371 |
|---|---|
| Position | Rear |
| 143 | 100 |
| 143 | 3.94 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.13 |
| Wheel Pilot Diameter | 54 |
| Brake Pilot Diameter | 2.17 |
| Brake Pilot Diameter | 55 |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.91 |
| Hub Pilot Diameter | 74 |
| Flange Shape | Modified |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Bolt Hole Diameter | 0.49 |
| Flange Bolt Hole Diameter | 12.5 |
| Flange Offset | 2.36 |
| Flange Offset | 60 |
| Flange Diameter | 135 |
| Flange Diameter | 5.31 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Toyota · 3 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Each unit is checked to meet strict quality standards.
ISO/TS 16949:2002. Manufactured to industry-leading quality standards.
Cross-references MOOG Hub Assemblies 512371, Timken HA590172 and 40544018 for the same application. See all 5.
DuraGo 295-12371 Rear Wheel Bearing Hub
The DuraGo 295-12371 wheel bearing and hub assembly is built for the rear of select Toyota Yaris models from 2006 to 2008. It combines the hub and bearing into one service part to restore smooth wheel rotation and consistent wheel mounting on the rear axle.
Key Features
- Rear wheel bearing and hub assembly for 2006-2008 Toyota Yaris
- Non-driven hub assembly design
- 4 flange bolt holes and 4 wheel studs
- M12 x 1.5 wheel stud size
- Wheel pilot diameter: 54 mm
- Brake pilot diameter: 55 mm
- Hub pilot diameter: 74 mm
- Modified flange shape with 135 mm flange diameter
- 100% tested during manufacturing
- Built to ISO/TS 16949:2002 quality standards
Detailed Description
DuraGo 295-12371 is a rear wheel bearing and hub assembly engineered for direct replacement on 2006, 2007, and 2008 Toyota Yaris applications. It is a non-driven hub assembly with integrated wheel studs, a 4-bolt flange pattern, and the specified pilot diameters needed for proper rear wheel mounting and bearing support. This part cross-references Timken HA590172 and MOOG 512371 for the same application. The DuraGo 295-12371 is manufactured using quality components and tested to meet DuraGo’s production standards for consistent fit and function on Toyota Yaris rear service jobs.
What It Helps Solve
- Rear wheel bearing noise or rough rotation
- Excessive play at the wheel hub
- Uneven wheel mounting surface wear
- Vibration from a worn rear hub assembly
- Service replacement for a damaged Toyota Yaris rear hub
Installation Notes and Tips
Confirm rear position and match the hub dimensions, bolt pattern, and stud size before installation. Inspect the mating surfaces, brake components, and axle area for wear or corrosion during service. For 2006-2008 Toyota Yaris rear hub replacement, verify that the non-driven hub configuration matches the original part before assembly.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is produced to meet ISO/TS 16949:2002 manufacturing requirements.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Toyota | Yaris | Rear | — |
| 2007 | Toyota | Yaris | Rear | — |
| 2006 | Toyota | Yaris | Rear | — |
