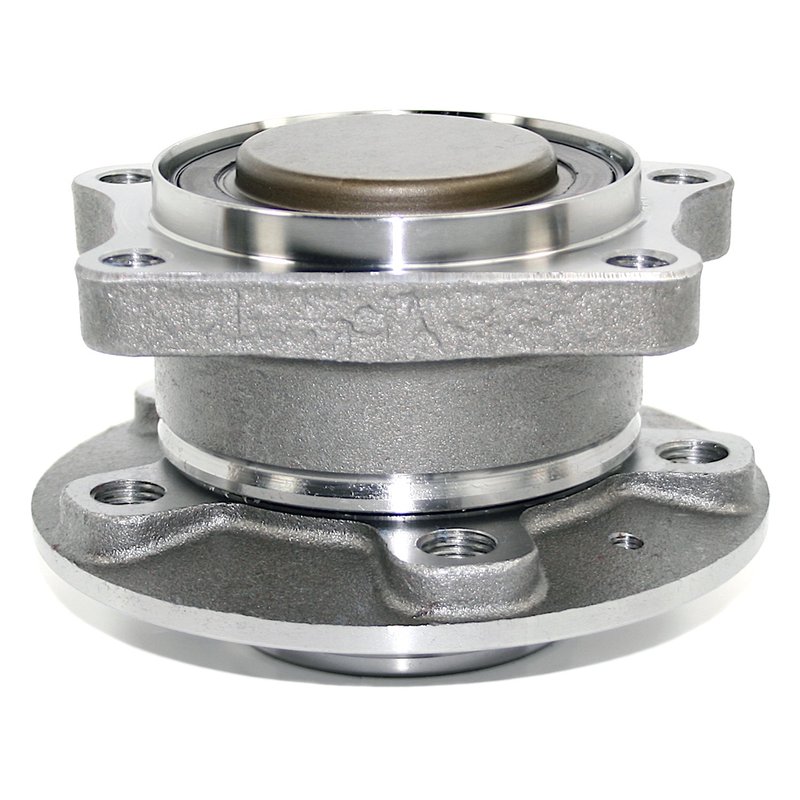

DuraGo 295-12395 Wheel Bearing and Hub Assembly - Rear

Durable Wheel Bearing and Hub Assembly for Volvo XC90

The DuraGo 295-12395 wheel bearing and hub assembly is engineered to meet the specific requirements of the Volvo XC90. Designed as a non-driven hub assembly, it integrates an ABS encoder to maintain proper anti-lock braking system functionality, ensuring reliable performance and safety.

• Compatible with Volvo XC90 models
• Non-driven wheel bearing and hub assembly
• Includes 5 M12 x 1.75 wheel studs
• Equipped with ABS encoder for anti-lock braking system
• Trapezoid flange shape with 4 bolt holes
• Wheel pilot diameter: 66.9 mm (2.63 inches)
• Brake pilot diameter: 68 mm (2.68 inches)
• Hub pilot diameter: 87.4 mm (3.44 inches)
• Flange diameter: 135.7 mm (5.34 inches)
• Flange offset: 58.9 mm (2.32 inches)
• Flange bolt hole diameter: 12.5 mm (0.49 inches)

Technical Details and Specifications

The DuraGo 295-12395 wheel bearing and hub assembly features a trapezoid flange shape with four bolt holes, designed to fit precisely on the Volvo XC90. It includes five wheel studs sized M12 x 1.75, which are pre-installed to facilitate wheel mounting. The wheel pilot diameter measures 66.9 mm (2.63 inches), while the brake pilot diameter is slightly larger at 68 mm (2.68 inches), ensuring proper alignment with the brake components. The hub pilot diameter is 87.4 mm (3.44 inches), providing a secure fit on the axle hub. The flange diameter is 135.7 mm (5.34 inches) with an offset of 58.9 mm (2.32 inches), matching the vehicle’s specifications for optimal performance. This assembly is designed as a non-driven hub, meaning it is intended for wheels that are not powered by the drivetrain. Additionally, the integrated ABS encoder supports the vehicle’s anti-lock braking system, maintaining accurate wheel speed sensor readings.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Volvo XC90
• Resolves wheel noise or roughness caused by bearing wear
• Addresses ABS warning lights related to faulty wheel speed sensors
• Corrects wheel play or looseness affecting vehicle stability
• Restores proper wheel alignment and brake component fitment

Installation Notes and Tips

When installing the DuraGo 295-12395 wheel bearing and hub assembly on a Volvo XC90, ensure the vehicle is securely lifted and supported. Remove the old hub assembly carefully, taking note of the ABS sensor wiring and connectors. This assembly includes wheel studs but does not come with flange bolts, so retain or replace the original flange bolts as needed. Verify that the flange bolt holes and pilot diameters align correctly before tightening to manufacturer torque specifications. Proper installation will help maintain ABS functionality and wheel stability.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-12395 part number undergoes rigorous quality control to ensure durability and reliable performance on the Volvo XC90. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
