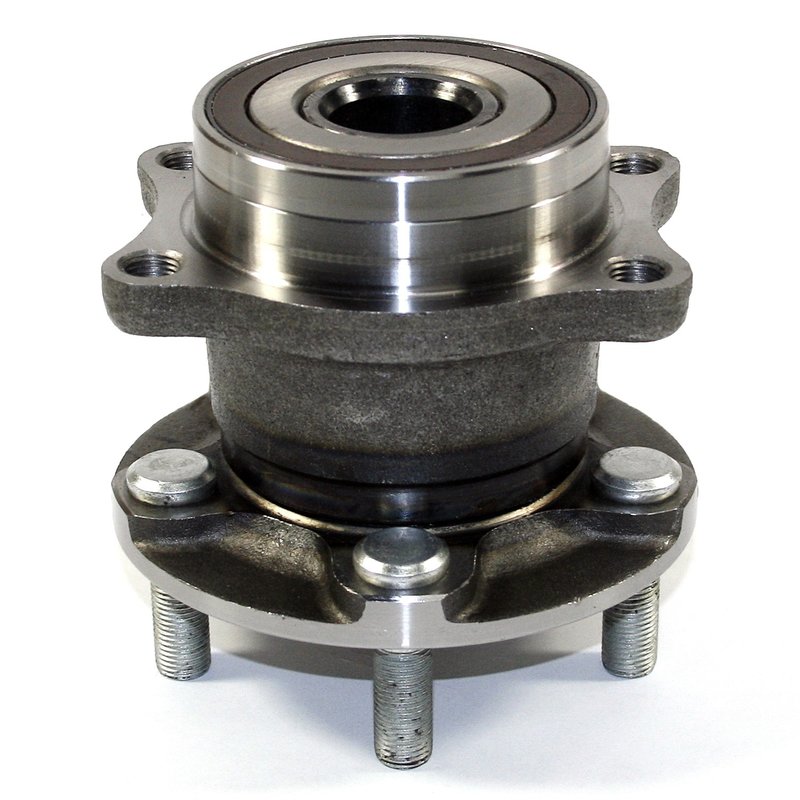

DuraGo 295-12401 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Subaru and Toyota

The DuraGo 295-12401 wheel bearing and hub assembly is engineered to provide precise fitment and dependable performance for select Subaru and Toyota models. Designed with a 27-spline driven hub and integrated ABS encoder, this assembly supports smooth wheel rotation and accurate anti-lock braking system operation.

• 27 spline quantity for driven hub compatibility
• Includes 5 M12 x 1.25 wheel studs for secure wheel mounting
• Modified flange shape with 4 bolt holes and M12 x 1.25 flange bolt size
• Wheel pilot diameter of 56 mm and brake pilot diameter of 58 mm for proper alignment
• Equipped with an ABS encoder for anti-lock braking system functionality
• Flange diameter measures 124 mm with a flange offset of 66.5 mm
• Compatible with Subaru 86, BRZ, Forester, Impreza, Legacy, Outback, and Toyota 86 and BRZ models

Technical Details and Specifications

The DuraGo 295-12401 wheel bearing and hub assembly features a driven hub design with 27 splines, ensuring compatibility with the drivetrain of specified Subaru and Toyota vehicles. The assembly includes five M12 x 1.25 wheel studs, facilitating secure wheel attachment. Its modified flange shape incorporates four bolt holes sized M12 x 1.25, providing a precise fit. The wheel pilot diameter of 56 mm and brake pilot diameter of 58 mm help maintain proper wheel and brake rotor alignment, reducing vibration and wear. The flange diameter of 124 mm and flange offset of 66.5 mm are engineered to match OEM specifications. Additionally, the integrated ABS encoder supports the vehicle’s anti-lock braking system, ensuring accurate wheel speed monitoring.

Compatible Vehicles and Applications

• Subaru 86 and Toyota 86 sports coupes
• Subaru BRZ performance coupe
• Subaru Forester compact SUV
• Subaru Impreza compact car
• Subaru Legacy midsize sedan
• Subaru Outback crossover wagon

Common Issues Addressed by This Hub Assembly

• Wheel bearing noise or roughness during rotation
• ABS warning light due to faulty wheel speed sensor
• Excessive wheel play or looseness
• Uneven tire wear caused by misalignment
• Vibration or wobbling at higher speeds

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old hub assembly carefully, noting the orientation of the ABS encoder. Clean the mounting surface thoroughly to prevent improper seating. Torque all flange bolts to manufacturer specifications. Verify ABS sensor connections and perform a system scan after installation to clear any fault codes.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-12401 part number undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, DuraGo typically offers coverage against defects in materials and workmanship.
