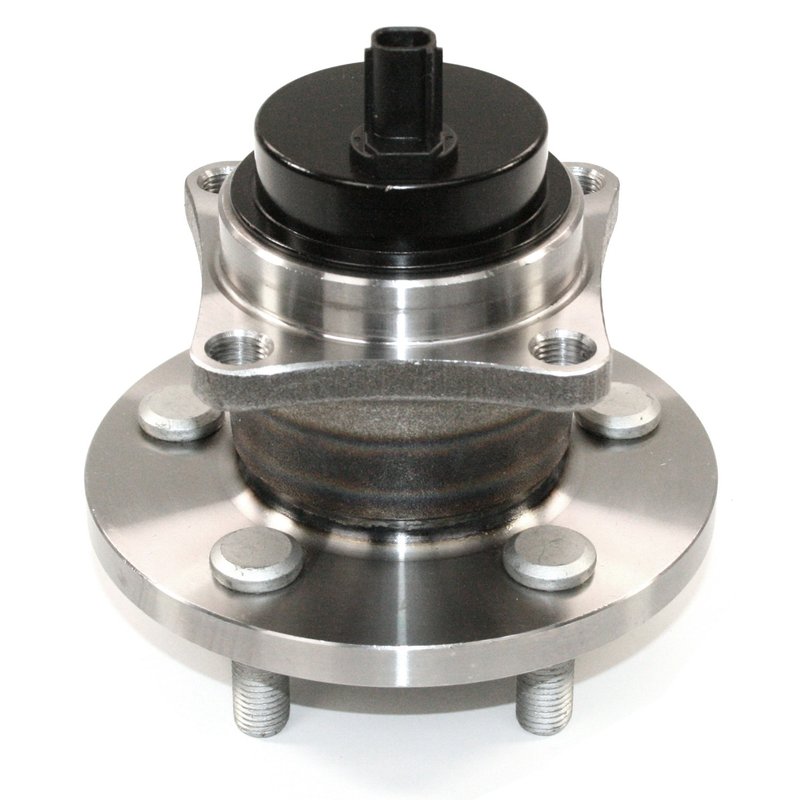

DuraGo 295-12403 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12403 Wheel Bearing and Hub Assembly

The DuraGo 295-12403 wheel bearing and hub assembly is engineered for reliable performance in select Toyota and Pontiac models. Designed as a non-driven hub assembly, it integrates an ABS sensor to maintain proper anti-lock braking system function.

• Compatible with Toyota Corolla, Toyota Matrix, and Pontiac Vibe
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Features a modified flange shape with 4 flange bolt holes (M12 x 1.25 bolt size)
• Equipped with an ABS sensor connector for anti-lock braking system integration
• Hub pilot diameter measures 2.91 inches (74 mm) ensuring precise fitment
• Flange diameter of 5.31 inches (135 mm) with a flange offset of 2.36 inches (60 mm)

Technical Specifications and Features

This wheel bearing and hub assembly from DuraGo is designed with a flange that has a modified shape and includes four bolt holes sized M12 x 1.25, providing a secure connection to the vehicle’s driveline. The assembly includes five wheel studs sized M12 x 1.5, which are pre-installed to facilitate wheel mounting. The hub pilot diameter of 2.91 inches (74 mm) and brake pilot diameter of 2.17 inches (55 mm) ensure proper alignment with the brake components and wheel hub.

Equipped with an ABS sensor and a single connector, this assembly supports the vehicle’s anti-lock braking system, maintaining safety and control during braking. The flange offset of 2.36 inches (60 mm) and flange diameter of 5.31 inches (135 mm) are designed to match the original equipment specifications for the Toyota Corolla, Toyota Matrix, and Pontiac Vibe models.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Corolla, Matrix, and Pontiac Vibe
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function to maintain braking safety
• Corrects wheel alignment issues related to hub pilot diameter wear
• Addresses loose or damaged wheel studs affecting wheel security

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match the vehicle specifications. Since flange bolts are not included, retain original hardware or source appropriate bolts (M12 x 1.25). Confirm ABS sensor connector compatibility and proper routing to avoid damage during installation. Torque all fasteners to manufacturer specifications to ensure safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. This part number 295-12403 undergoes rigorous quality control to ensure durability and reliable operation. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship.
