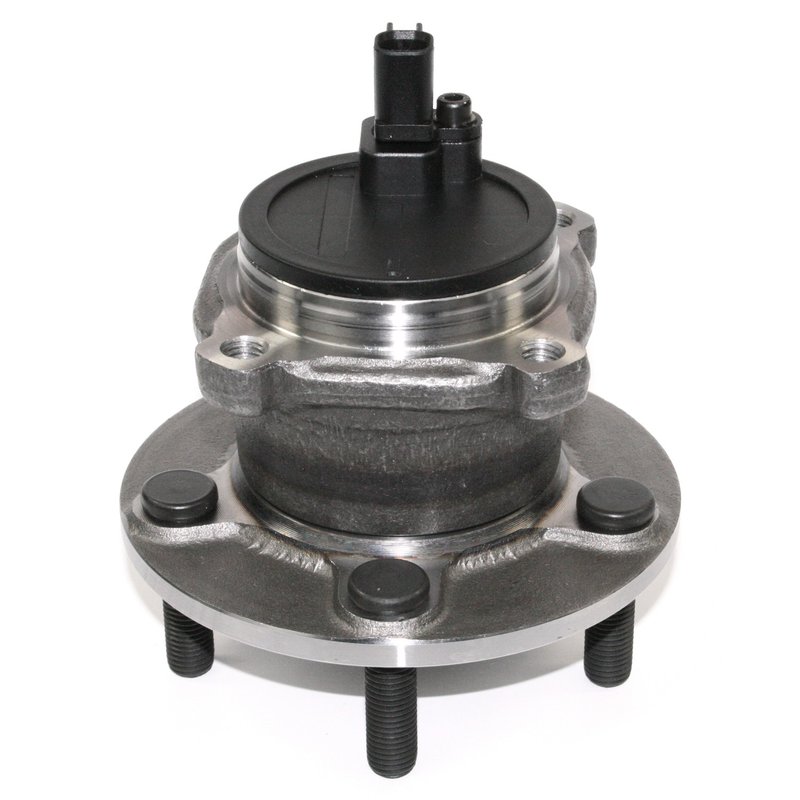

DuraGo 295-12411 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12411 Wheel Bearing and Hub Assembly

The DuraGo 295-12411 wheel bearing and hub assembly is engineered for reliable performance in Volvo vehicles including the C30, C70, S40, and V50 models. Designed as a non-driven hub assembly, it integrates an ABS sensor to maintain proper anti-lock braking system functionality.

• Compatible with Volvo C30, C70, S40, and V50
• Non-driven wheel bearing and hub assembly
• Includes 5 M12 x 1.5 wheel studs
• Equipped with ABS sensor for anti-lock braking system
• Flange bolt hole quantity: 4 with M10 x 1.5 bolt size
• Flange diameter: 136 mm (5.35 inches)
• Wheel pilot diameter: 63.2 mm (2.49 inches)
• Brake pilot diameter: 63.4 mm (2.5 inches)
• Hub pilot diameter: 73.8 mm (2.91 inches)
• Flange offset: 63 mm (2.48 inches)

Detailed Product Description

The DuraGo 295-12411 wheel bearing and hub assembly is designed to meet the specific requirements of select Volvo models, ensuring proper fit and function. This assembly features a modified flange shape with four bolt holes sized M10 x 1.5, providing secure attachment to the vehicle’s driveline. The hub includes five wheel studs sized M12 x 1.5, which are included with the assembly to facilitate wheel mounting. The precise pilot diameters for the wheel (63.2 mm), brake (63.4 mm), and hub (73.8 mm) ensure accurate alignment and reduce vibration during operation.

Equipped with an integrated ABS sensor, this assembly supports the vehicle’s anti-lock braking system by providing real-time wheel speed data. The sensor connector quantity is one, allowing for straightforward electrical connection. The flange offset of 63 mm helps maintain proper wheel positioning relative to the suspension and brake components.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Volvo C30, C70, S40, and V50
• Restores proper ABS sensor function to prevent braking system faults
• Eliminates wheel vibration caused by bearing wear or hub misalignment
• Addresses wheel stud damage or corrosion by providing new studs
• Corrects flange bolt hole wear to ensure secure wheel attachment

Installation Notes and Tips

When installing the DuraGo 295-12411 assembly, verify compatibility with your Volvo model and confirm the part number matches. The included wheel studs simplify wheel mounting, but flange bolts are not included and must be reused or replaced separately. Ensure the ABS sensor connector is properly connected to maintain anti-lock braking system functionality. Proper torque specifications should be followed for flange bolts and wheel studs to avoid premature wear or failure.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or supplier.
