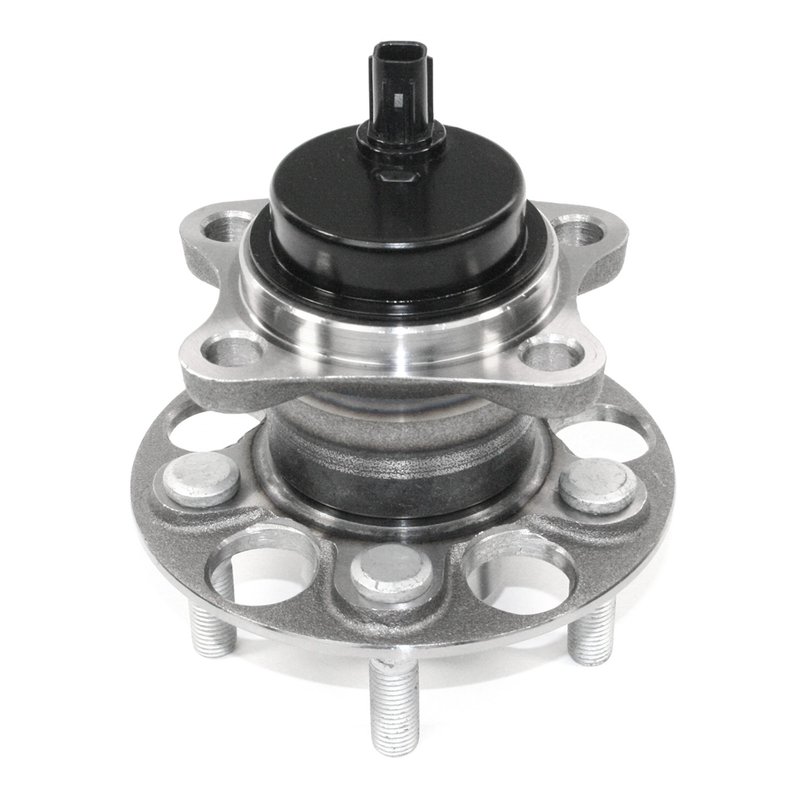

DuraGo 295-12425 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12425

The DuraGo 295-12425 wheel bearing and hub assembly is designed specifically for the Scion xD, providing reliable performance and precise fitment. This non-driven hub assembly integrates an ABS sensor to maintain your vehicle's anti-lock braking system functionality.

• Compatible with Scion xD models
• Includes 5 M12 x 1.5 wheel studs
• Non-driven hub assembly with ABS sensor type
• Modified flange shape with 4 bolt holes
• Wheel pilot diameter of 54 mm and brake pilot diameter of 55 mm
• Flange diameter measures 135 mm with a 60 mm flange offset
• Hub pilot diameter of 74 mm for precise alignment
• Flange bolt hole diameter of 12.5 mm

Detailed Product Description

The DuraGo 295-12425 wheel bearing and hub assembly is engineered to meet the specific requirements of the Scion xD. Featuring a modified flange shape with four bolt holes, this assembly ensures secure mounting and optimal load distribution. The hub includes five M12 x 1.5 wheel studs, which are included for convenience, and a wheel pilot diameter of 54 mm to maintain proper wheel alignment. Brake pilot diameter is 55 mm, supporting accurate brake rotor positioning. The flange diameter of 135 mm and flange offset of 60 mm contribute to the correct fitment and clearance within the wheel well. Additionally, the hub pilot diameter of 74 mm helps center the hub assembly on the axle shaft, reducing vibration and wear. This assembly is equipped with an ABS sensor type to maintain anti-lock braking system functionality, with one connector for sensor integration. Note that flange bolts are not included.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Scion xD
• Restores proper wheel alignment and reduces vibration
• Maintains ABS sensor functionality for safe braking performance
• Addresses noise or roughness caused by failing wheel bearings
• Ensures secure mounting of wheels with included wheel studs

Installation Notes and Tips

When installing the DuraGo 295-12425 wheel bearing and hub assembly, ensure the vehicle is properly supported and the wheel hub area is clean. Verify the flange bolt hole pattern and wheel pilot diameters match the vehicle specifications. Since flange bolts are not included, reuse existing bolts or acquire appropriate replacements. Confirm ABS sensor connector is properly connected to maintain anti-lock braking system operation. Torque all fasteners to manufacturer specifications to avoid premature wear or failure.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet industry standards for durability and performance. This part is designed to provide consistent operation under normal driving conditions. Please refer to DuraGo's warranty policy for specific coverage details related to the 295-12425 part number.
