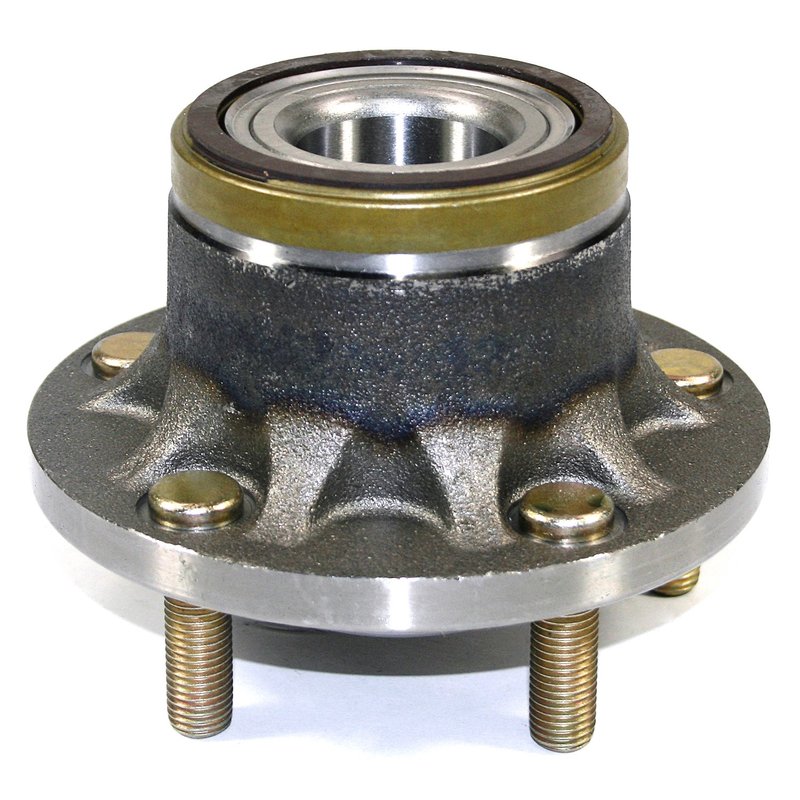

DuraGo 295-12439 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12439 Wheel Bearing and Hub Assembly

The DuraGo 295-12439 wheel bearing and hub assembly is designed specifically for Ford Transit Connect vehicles. This non-driven hub assembly features an integrated ABS encoder to support anti-lock braking systems, ensuring reliable performance and safety.

• Compatible with Ford Transit Connect models
• Wheel stud size: M12 x 1.5
• Includes 5 wheel studs
• Wheel pilot diameter: 2.49 inches (63.3 mm)
• Brake pilot diameter: 2.49 inches (63.3 mm)
• Hub pilot diameter: 3.2 inches (81.2 mm)
• Flange diameter: 5.35 inches (136 mm)
• Flange offset: 2.64 inches (67 mm)
• Equipped with ABS encoder for anti-lock braking system compatibility
• Non-driven hub assembly type

Technical Details and Specifications

The DuraGo 295-12439 hub assembly is engineered to meet the precise specifications required for the Ford Transit Connect. It features a wheel stud size of M12 x 1.5 with a total of five studs included, providing secure wheel mounting. The wheel and brake pilot diameters are both 2.49 inches (63.3 mm), ensuring proper alignment with the brake components. The hub pilot diameter measures 3.2 inches (81.2 mm), which centers the hub on the axle flange accurately.

The flange diameter of 5.35 inches (136 mm) and flange offset of 2.64 inches (67 mm) are designed to match the vehicle’s original equipment specifications, maintaining proper wheel positioning and suspension geometry. This assembly is a non-driven type, suitable for the front or rear hubs that do not transmit power.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford Transit Connect
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function with integrated encoder
• Corrects wheel alignment issues related to hub pilot diameter wear
• Addresses loose or damaged wheel studs affecting wheel security

Installation Notes and Tips

When installing the DuraGo 295-12439 wheel bearing and hub assembly, ensure the mating surfaces are clean and free of debris. Verify that the wheel pilot and brake pilot diameters align correctly with the vehicle’s components. Torque the wheel studs to the manufacturer’s specifications to maintain wheel security. Since this assembly includes an ABS encoder, take care to connect the ABS sensor wiring properly to avoid system faults.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. The part number 295-12439 undergoes rigorous quality control to ensure durability and reliable performance on Ford Transit Connect vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
