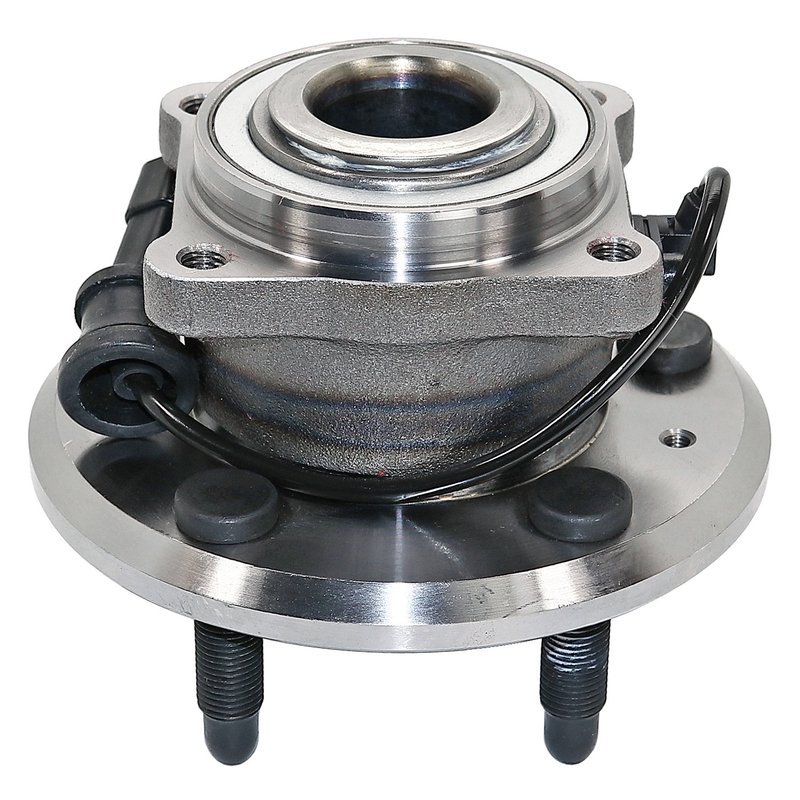

DuraGo 295-12440 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12440 |
|---|---|
| Position | Rear |
| Spline Quantity | 30 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M14 x 1.5 |
| Wheel Pilot Diameter | 2.63 |
| Wheel Pilot Diameter | 66.9 |
| Brake Pilot Diameter | 2.65 |
| Brake Pilot Diameter | 67.4 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.31 |
| Hub Pilot Diameter | 84 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 2.55 |
| Flange Offset | 64.7 |
| Flange Diameter | 157 |
| Flange Diameter | 6.18 |
| Bolt Circle Diameter | 120 |
| Bolt Circle Diameter | 4.72 |
| ABS Wheel Speed Sensor Cable Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M10 x 1.5 |
| Fits | Chevrolet and GMC · 16 vehicles |
OE-style hub assembly. Engineered as a direct-fit replacement for smooth, reliable service.
ABS sensor included. Built with sensor-based anti-lock braking compatibility.
Wheel studs included. Ready for a complete hub assembly installation.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12440 wheel bearing and hub assembly is built for rear applications on select Chevrolet Equinox and GMC Terrain models. It combines the hub, bearing, and ABS sensor components into one service part to help restore smooth wheel rotation and consistent wheel speed signal performance.
For drivers searching for a rear wheel bearing hub assembly for 2010-2017 Chevrolet Equinox or 2010-2017 GMC Terrain, this DuraGo unit is engineered to match the original driven hub layout and rear ABS sensor configuration.
Key Features
- Part number: 295-12440
- Rear driven wheel bearing and hub assembly
- ABS sensor type with wheel speed sensor cable included
- 5 wheel studs with M14 x 1.5 stud size
- 30-spline hub design
- 4-bolt flange pattern with rectangular flange shape
- Hub pilot diameter: 84 mm
- Bolt circle diameter: 120 mm
- Wheel pilot diameter: 66.9 mm
- Brake pilot diameter: 67.4 mm
Detailed Description
DuraGo manufactures aftermarket hub assemblies using quality components and 100% testing before release. The 295-12440 is a rear wheel bearing and hub assembly for driven rear applications, with ABS sensor integration to support wheel speed monitoring on compatible Chevrolet Equinox and GMC Terrain vehicles. This part number 295-12440 is a direct-fit service solution for rear hub replacement where the original assembly has worn bearings, noise, or sensor-related issues.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Rear wheel bearing noise or growling
- Excessive hub play or looseness
- ABS warning light caused by hub sensor issues
- Uneven wheel rotation from a worn rear hub assembly
- Wheel speed signal problems at the rear axle
Installation Notes and Tips
Verify rear fitment before ordering: Fits 2010-2017 Chevrolet Equinox, rear, and Fits 2010-2017 GMC Terrain, rear. Confirm the driven hub configuration, ABS sensor connection, flange bolt pattern, and stud specifications against the original part before installation. Inspect the mating surfaces, axle interface, and sensor connector condition during service to help ensure proper fit and operation.
Quality Assurance
DuraGo states that its hub assemblies are assembled with high-quality components, fully tested, and manufactured to ISO/TS 16949:2002 quality standards. The 295-12440 is built to meet industry-level production controls for rear hub service on Chevrolet Equinox and GMC Terrain applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | Rear | — |
| 2017 | GMC | Terrain | Rear | — |
| 2016 | Chevrolet | Equinox | Rear | — |
| 2016 | GMC | Terrain | Rear | — |
| 2015 | Chevrolet | Equinox | Rear | — |
| 2015 | GMC | Terrain | Rear | — |
| 2014 | Chevrolet | Equinox | Rear | — |
| 2014 | GMC | Terrain | Rear | — |
| 2013 | Chevrolet | Equinox | Rear | — |
| 2013 | GMC | Terrain | Rear | — |
| 2012 | Chevrolet | Equinox | Rear | — |
| 2012 | GMC | Terrain | Rear | — |
| 2011 | Chevrolet | Equinox | Rear | — |
| 2011 | GMC | Terrain | Rear | — |
| 2010 | Chevrolet | Equinox | Rear | — |
| 2010 | GMC | Terrain | Rear | — |
