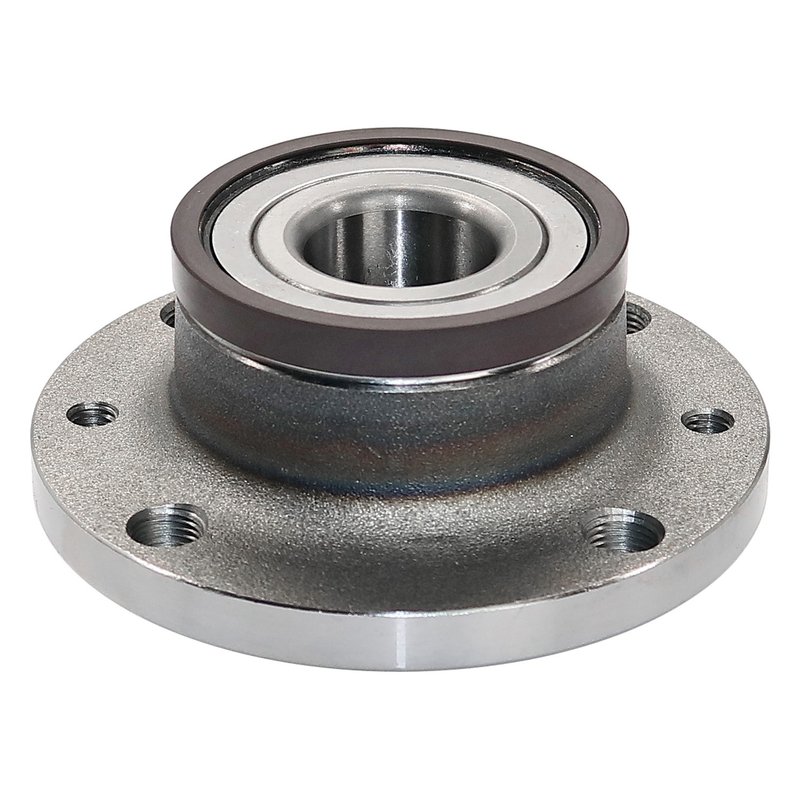

DuraGo 295-12480 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12480 |
|---|---|
| Position | Rear |
| Wheel Stud Size | M12 x 1.25 |
| Wheel Pilot Diameter | 2.28 |
| Wheel Pilot Diameter | 57.8 |
| Brake Pilot Diameter | 2.31 |
| Brake Pilot Diameter | 58.8 |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | No |
| Hub Pilot Diameter | 2.7 |
| Hub Pilot Diameter | 68.6 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.71 |
| Flange Offset | 43.5 |
| Flange Diameter | 116.6 |
| Flange Diameter | 4.59 |
| Bolt Circle Diameter | 3.86 |
| Bolt Circle Diameter | 98 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Fiat · 8 vehicles |
Premium hub assembly. Reduces friction and can improve fuel economy.
100% tested. Each hub unit meets strict quality standards.
ABS encoder type. Built with integrated encoder functionality.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12480 wheel bearing and hub assembly is a rear, non-driven replacement for select Fiat 500 models. It is built with encoder-style ABS integration and the correct hub dimensions to support stable wheel mounting and consistent braking system signal output.
Compatible with 2012-2019 Fiat 500 rear applications, this hub assembly is a direct-fit service part for vehicles that need a rear wheel bearing hub assembly with ABS encoder functionality. The DuraGo 295-12480 is engineered to help restore smooth wheel rotation and proper hub support on the Fiat 500.
Key Features
- Part number: 295-12480
- Rear wheel bearing and hub assembly for non-driven applications
- ABS encoder type: Yes
- Wheel stud size: M12 x 1.25
- Wheel stud quantity: 4
- Wheel pilot diameter: 57.8 mm
- Brake pilot diameter: 58.8 mm
- Hub pilot diameter: 68.6 mm
- Bolt circle diameter: 98 mm
- Flange diameter: 116.6 mm
- Flange offset: 43.5 mm
Detailed Description
DuraGo manufactures aftermarket hub assemblies using quality components and 100% testing before release. This rear hub assembly is built to meet industry-leading quality standards and ISO/TS 16949:2002 manufacturing requirements. For Fiat 500 rear service work, the 295-12480 provides the correct hub geometry, ABS encoder setup, and wheel mounting specifications needed for a proper replacement.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What It Helps Fix
- Wheel bearing noise from a worn rear hub assembly
- ABS warning light caused by encoder-related hub wear
- Excessive wheel play or looseness at the rear hub
- Uneven wheel rotation from a damaged bearing surface
- Vibration or roughness felt from the rear wheel area
Installation Notes
Verify rear fitment by year, model, and ABS configuration before installation. Confirm the wheel stud size, bolt circle diameter, and pilot diameters match the original hub assembly on the Fiat 500. Inspect the mating surfaces, axle area, and brake components during service to ensure the new hub seats correctly.
Quality Assurance
DuraGo hub assemblies are 100% tested and manufactured to industry-leading quality standards. The brand states that its hub assemblies meet ISO/TS 16949:2002 manufacturing requirements.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Fiat | 500 | Rear | — |
| 2018 | Fiat | 500 | Rear | — |
| 2017 | Fiat | 500 | Rear | — |
| 2016 | Fiat | 500 | Rear | — |
| 2015 | Fiat | 500 | Rear | — |
| 2014 | Fiat | 500 | Rear | — |
| 2013 | Fiat | 500 | Rear | — |
| 2012 | Fiat | 500 | Rear | — |
