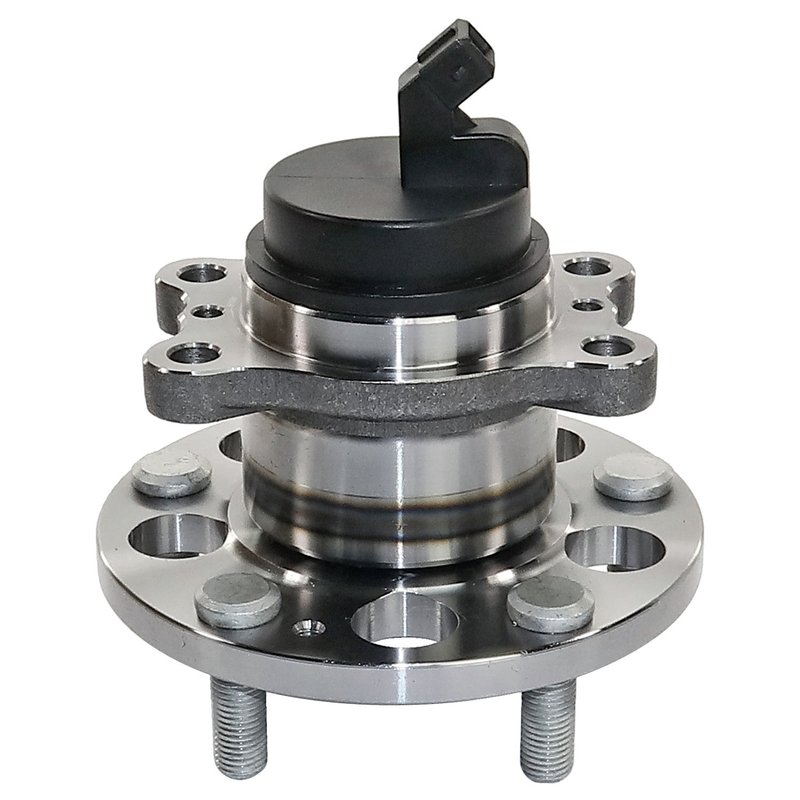

DuraGo 295-12495 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12495 |
|---|---|
| Position | Rear |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.99 |
| Brake Pilot Diameter | 76 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.71 |
| Hub Pilot Diameter | 68.8 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Bolt Hole Diameter | 0.41 |
| Flange Bolt Hole Diameter | 10.3 |
| Flange Offset | 2.4 |
| Flange Offset | 61 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Bolt Circle Diameter | 114.3 |
| Bolt Circle Diameter | 4.5 |
| ABS Wheel Speed Sensor Cable Included | No |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Kia · 11 vehicles |
OE-style hub assembly. Engineered as a direct-fit replacement for smooth, reliable operation.
ABS sensor type. Built with a sensor-based anti-lock braking system interface.
Wheel studs included. Ready for assembly with studs already in place.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12495 wheel bearing and hub assembly is built for rear applications on select Kia Soul and Kia Soul EV models. It combines the hub, bearing, and ABS sensor interface into one service part to help restore smooth wheel rotation and consistent wheel speed signal performance.
For drivers searching for a rear wheel bearing hub assembly for 2014-2019 Kia Soul or 2015-2019 Kia Soul EV, this DuraGo unit is a direct-fit service option with OE-style dimensions and sensor-equipped ABS support.
Key Features
- Part number: 295-12495
- Rear wheel bearing and hub assembly for non-driven applications
- ABS sensor type hub assembly with 1 connector
- 5 wheel studs included with M12 x 1.5 stud size
- 4 flange bolt holes with rectangular flange shape
- Bolt circle diameter: 114.3 mm / 4.5 in
- Hub pilot diameter: 68.8 mm / 2.71 in
- Wheel pilot diameter: 67 mm / 2.64 in
- Brake pilot diameter: 76 mm / 2.99 in
- Flange diameter: 139 mm / 5.47 in
- Flange offset: 61 mm / 2.4 in
Detailed Description
DuraGo manufactures aftermarket hub assemblies using quality components and 100% testing to help ensure each unit meets its published standards. This rear hub assembly is engineered for vehicles with ABS sensor integration and is suited for service work where bearing noise, wheel play, or wheel speed signal issues point to hub wear. It fits 2014-2019 Kia Soul, rear, and 2015-2019 Kia Soul EV, rear. The DuraGo 295-12495 is a practical replacement for technicians and owners looking for a rear wheel bearing hub assembly that matches the original mounting and sensor layout.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Rear wheel bearing noise or growling
- Excessive wheel end play or looseness
- ABS warning light caused by hub sensor issues
- Uneven wheel rotation from worn hub components
- Vibration or roughness from a deteriorated rear hub assembly
Installation Notes and Tips
Verify rear fitment by year, model, and ABS configuration before installation. Inspect the knuckle, axle area, and mounting surfaces for corrosion or damage, and confirm the bolt circle, pilot diameters, and connector style match the original part. Because this is a non-driven hub assembly, it is intended for rear service on the listed Kia Soul and Kia Soul EV applications.
Quality Assurance
DuraGo states that its hub assemblies are assembled with high-quality components, fully tested, and manufactured to ISO/TS 16949:2002 quality standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Kia | Soul | Rear | — |
| 2019 | Kia | Soul EV | Rear | — |
| 2018 | Kia | Soul | Rear | — |
| 2018 | Kia | Soul EV | Rear | — |
| 2017 | Kia | Soul | Rear | — |
| 2017 | Kia | Soul EV | Rear | — |
| 2016 | Kia | Soul | Rear | — |
| 2016 | Kia | Soul EV | Rear | — |
| 2015 | Kia | Soul | Rear | — |
| 2015 | Kia | Soul EV | Rear | — |
| 2014 | Kia | Soul | Rear | — |
