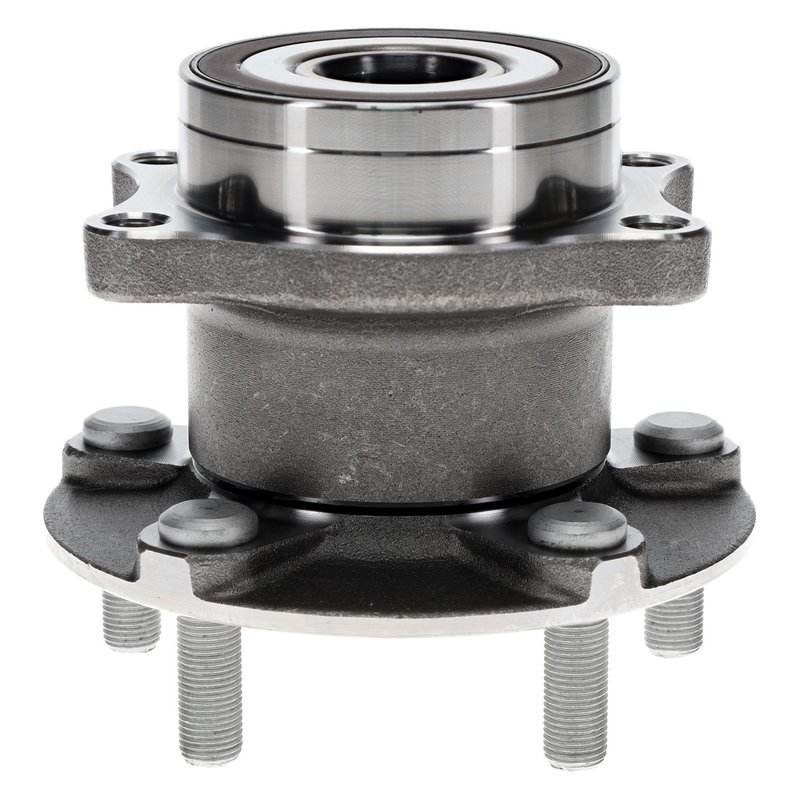

DuraGo 295-12536 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12536 |
|---|---|
| Position | Rear |
| Spline Quantity | 27 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.25 |
| Wheel Pilot Diameter | 2.2 |
| Wheel Pilot Diameter | 56 |
| Brake Pilot Diameter | 2.28 |
| Brake Pilot Diameter | 58 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.31 |
| Hub Pilot Diameter | 84 |
| Flange Shape | Modified |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 2.68 |
| Flange Offset | 68 |
| Flange Diameter | 138 |
| Flange Diameter | 5.43 |
| Bolt Circle Diameter | 114.3 |
| Bolt Circle Diameter | 4.5 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Subaru · 20 vehicles |
OE-style hub assembly. Engineered as a driven wheel bearing and hub assembly.
ABS encoder included. Built with an integrated encoder for anti-lock braking systems.
100% tested. Assembled with quality components to meet ISO/TS 16949:2002 standards.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12536 rear wheel bearing and hub assembly is built for direct replacement on select Subaru applications. It combines the hub, bearing, and ABS encoder into one service part to restore smooth wheel rotation and consistent wheel speed signal performance.
- Rear wheel bearing and hub assembly for driven applications
- Fits 2015-2021 Subaru Legacy, rear
- Fits 2015-2021 Subaru Outback, rear
- Fits 2019 Subaru Forester, rear
- Fits 2015-2019 Subaru WRX STI, rear
- 27-spline design with 5 wheel studs and M12 x 1.25 wheel studs
- ABS encoder type with anti-lock braking system provision
- Modified flange shape with 4 flange bolt holes
- Hub pilot diameter: 84 mm; bolt circle diameter: 114.3 mm
Product Details
DuraGo 295-12536 is a rear driven hub assembly engineered for Subaru Legacy, Subaru Outback, Subaru Forester, and Subaru WRX STI rear applications listed above. It features a 27-spline hub design, 5 wheel studs, a 114.3 mm bolt circle, and an ABS encoder configuration to support wheel speed sensing. DuraGo builds each hub assembly with quality components and tests every unit to meet its manufacturing standards. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Wheel bearing noise from the rear hub area
- Excessive wheel play or looseness
- ABS warning light related to rear wheel speed signal issues
- Vibration or rough rotation from a worn hub assembly
- Uneven braking feel caused by hub or bearing wear
Installation Notes
Verify rear fitment by year, model, and driven hub configuration before installation. Confirm the 27-spline count, M12 x 1.25 flange bolt size, 114.3 mm bolt circle, and ABS encoder style match the original part. Inspect the mating surfaces, axle splines, and brake components during service, and torque all fasteners to Subaru specifications.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that its hub assemblies meet ISO/TS 16949:2002 requirements. Each unit is 100% tested before release to help ensure consistent fit and function. Part number 295-12536 is a direct-fit replacement for the listed rear Subaru applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Subaru | Legacy | Rear | — |
| 2021 | Subaru | Outback | Rear | — |
| 2020 | Subaru | Legacy | Rear | — |
| 2020 | Subaru | Outback | Rear | — |
| 2019 | Subaru | Forester | Rear | — |
| 2019 | Subaru | Legacy | Rear | — |
| 2019 | Subaru | Outback | Rear | — |
| 2019 | Subaru | WRX STI | Rear | — |
| 2018 | Subaru | Legacy | Rear | — |
| 2018 | Subaru | Outback | Rear | — |
| 2018 | Subaru | WRX STI | Rear | — |
| 2017 | Subaru | Legacy | Rear | — |
| 2017 | Subaru | Outback | Rear | — |
| 2017 | Subaru | WRX STI | Rear | — |
| 2016 | Subaru | Legacy | Rear | — |
| 2016 | Subaru | Outback | Rear | — |
| 2016 | Subaru | WRX STI | Rear | — |
| 2015 | Subaru | Legacy | Rear | — |
| 2015 | Subaru | Outback | Rear | — |
| 2015 | Subaru | WRX STI | Rear | — |
