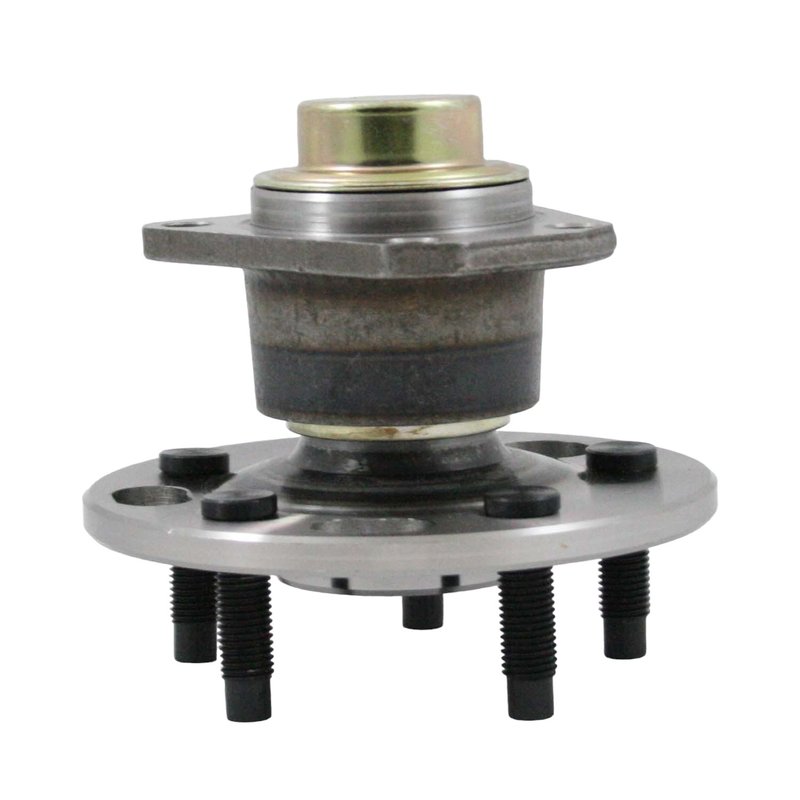

DuraGo 295-13012 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for GM Vehicles

The DuraGo 295-13012 wheel bearing and hub assembly is engineered to meet the specific needs of select Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models. Designed as a non-driven hub assembly, it provides a precise fit and dependable performance for vehicles such as the Chevrolet Cavalier, Pontiac Sunfire, and Oldsmobile Cutlass Calais.

• Compatible with Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models including Cavalier, Cimarron, Citation, Corsica, Grand Am, and more
• Wheel stud size: M12 x 1.5 with 5 wheel studs included
• Flange bolt hole quantity: 4 with trapezoid flange shape
• Wheel pilot diameter: 2.24 inches (57 mm)
• Brake pilot diameter: 2.26 inches (57.5 mm)
• Hub pilot diameter: 2.4 inches (61 mm)
• Flange diameter: 5.43 inches (138 mm) with 2.56 inches (65 mm) flange offset
• Non-driven hub assembly type

Detailed Product Description

The DuraGo 295-13012 wheel bearing and hub assembly is designed to provide a precise and secure fit for a range of GM vehicles, including the Chevrolet Cavalier, Pontiac Sunfire, and Oldsmobile Cutlass Calais. This non-driven hub assembly features a trapezoid flange shape with four flange bolt holes, each measuring 0.43 inches (11 mm) in diameter, ensuring proper alignment and mounting. The assembly includes five M12 x 1.5 wheel studs, facilitating secure wheel attachment. The wheel pilot diameter of 2.24 inches (57 mm) and brake pilot diameter of 2.26 inches (57.5 mm) help maintain proper brake rotor positioning, while the hub pilot diameter of 2.4 inches (61 mm) ensures accurate hub centering. With a flange diameter of 5.43 inches (138 mm) and a flange offset of 2.56 inches (65 mm), this assembly is engineered to match factory specifications for optimal performance.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on compatible Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models
• Eliminates wheel noise and vibration caused by bearing wear
• Restores proper wheel alignment and brake rotor positioning
• Addresses wheel stud damage or corrosion issues
• Prevents premature tire wear due to hub assembly failure

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify compatibility with your specific make and model, such as the Chevrolet Cavalier or Pontiac Sunfire, using the part number 295-13012. Clean the mounting surface thoroughly to remove rust and debris. Use proper torque specifications for flange bolts and wheel studs to avoid damage. Since flange bolts are not included, retain or replace existing hardware as needed. Check for proper ABS sensor alignment if applicable, noting that this assembly does not support anti-lock braking systems.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 295-13012 are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. For detailed warranty information, consult the product documentation or manufacturer resources.
