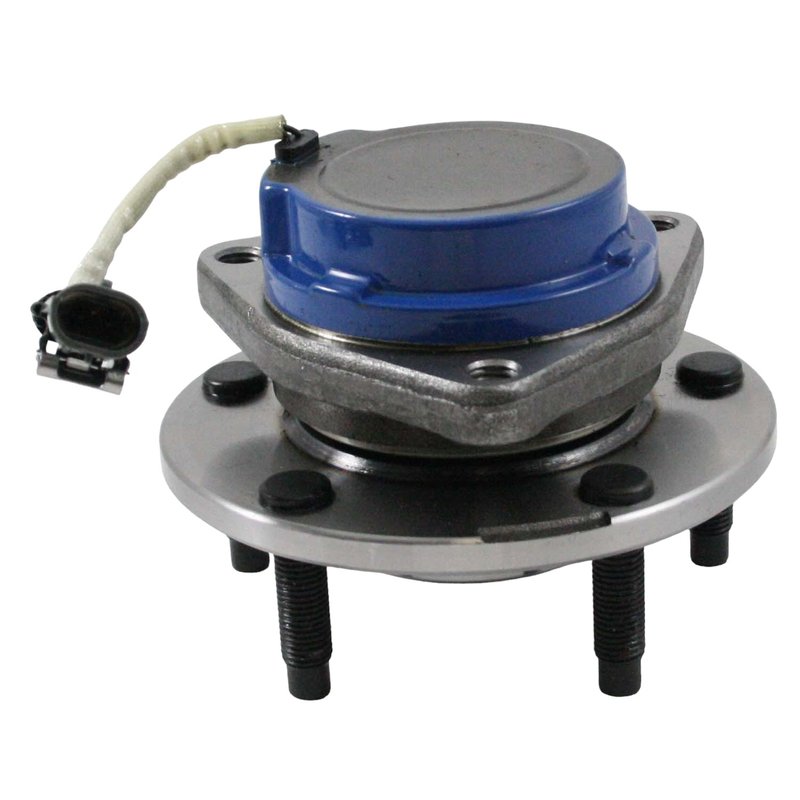

DuraGo 295-13139 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13139 |
|---|---|
| Position | Front |
| 143 | 120.65 |
| 143 | 4.75 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.6 |
| Hub Pilot Diameter | 91.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.65 |
| Flange Offset | 42 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Cadillac and Chevrolet · 17 vehicles |
OE-style hub assembly. Non-driven design with ABS sensor compatibility for dependable replacement.
Wheel studs included. Ready for assembly with studs already in place.
Manufactured to ISO/TS 16949:2002 quality standards and fully tested.
Cross-references MOOG Hub Assemblies 513139, SKF BR930099 and 470569 for the same application. See all 9.
DuraGo 295-13139 Front Wheel Hub Assembly
DuraGo 295-13139 is a front wheel bearing and hub assembly for select Cadillac XLR and Chevrolet Corvette applications. Built with premium components and 100% tested for quality control, it is a direct-fit replacement for vehicles that need a front non-driven hub assembly with ABS sensor integration.
Key Features
- Front wheel bearing and hub assembly for non-driven applications
- Fits 2004-2008 Cadillac XLR, front
- Fits 1997-2008 Chevrolet Corvette, front
- 5 wheel studs included with M12 x 1.5 wheel stud size
- ABS sensor type with sensor cord included and 1 connector
- Triangle flange design with 3 flange bolt holes
- Hub pilot diameter: 91.4 mm (3.6 in)
- Wheel pilot diameter: 70 mm (2.76 in)
- Brake pilot diameter: 70.6 mm (2.78 in)
- Flange offset: 42 mm (1.65 in)
Detailed Description
This DuraGo wheel bearing and hub assembly, part number 295-13139, is engineered for front axle service on the Cadillac XLR and Chevrolet Corvette. It features a non-driven hub design, ABS sensor type construction, and the correct hub and pilot dimensions to support proper wheel mounting and brake interface on the listed vehicles. DuraGo assembles each unit with quality components and tests every hub assembly to meet its manufacturing standards. This part cross-references MOOG 513139 and SKF BR930099 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or growling
- Excessive wheel play or looseness at the hub
- ABS warning light caused by a failing hub sensor assembly
- Uneven wheel rotation or vibration from hub wear
- Corrosion or damage at the wheel mounting surface
Installation Notes and Tips
Verify front fitment by year, make, and model before installation. Confirm the wheel stud size, flange bolt pattern, and ABS connector match the original hub assembly on your Cadillac XLR or Chevrolet Corvette. Because this is a sensor-equipped hub assembly, inspect the ABS wiring and connector condition during replacement and follow the vehicle service procedure for torque and bearing preload specifications.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that its hub assemblies meet ISO/TS 16949:2002 requirements. Each unit is 100% tested before release to help ensure consistent fit and function.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Cadillac | XLR | Front | — |
| 2008 | Chevrolet | Corvette | Front | — |
| 2007 | Cadillac | XLR | Front | — |
| 2007 | Chevrolet | Corvette | Front | — |
| 2006 | Cadillac | XLR | Front | — |
| 2006 | Chevrolet | Corvette | Front | — |
| 2005 | Cadillac | XLR | Front | — |
| 2005 | Chevrolet | Corvette | Front | — |
| 2004 | Cadillac | XLR | Front | — |
| 2004 | Chevrolet | Corvette | Front | — |
| 2003 | Chevrolet | Corvette | Front | — |
| 2002 | Chevrolet | Corvette | Front | — |
| 2001 | Chevrolet | Corvette | Front | — |
| 2000 | Chevrolet | Corvette | Front | — |
| 1999 | Chevrolet | Corvette | Front | — |
| 1998 | Chevrolet | Corvette | Front | — |
| 1997 | Chevrolet | Corvette | Front | — |
