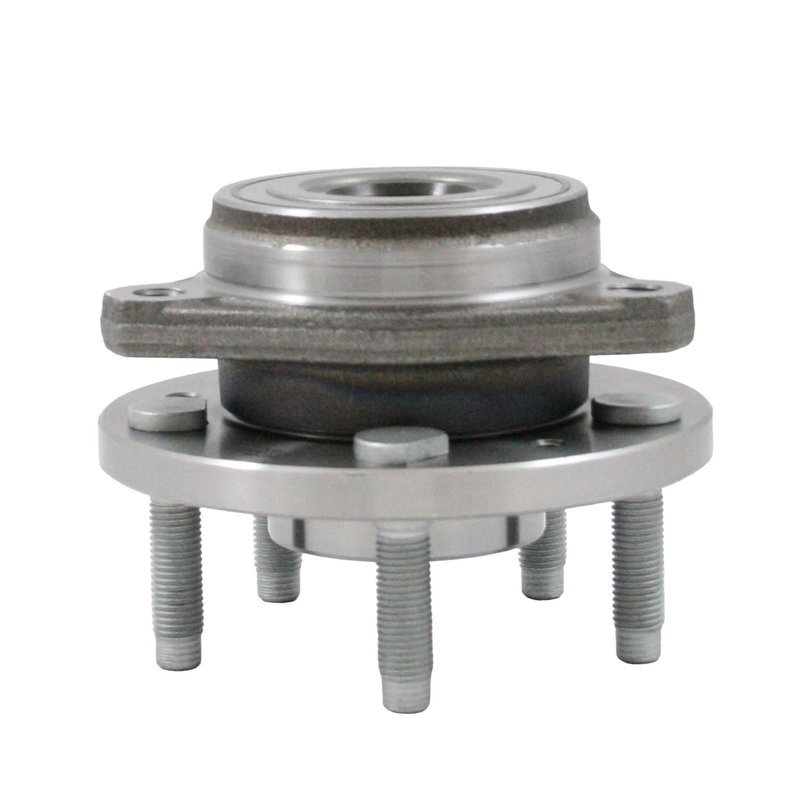

DuraGo 295-13156 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13156 |
|---|---|
| Position | Front |
| Spline Quantity | 26 |
| 143 | 108 |
| 143 | 4.25 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.49 |
| Wheel Pilot Diameter | 63.2 |
| Brake Pilot Diameter | 2.79 |
| Brake Pilot Diameter | 70.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.32 |
| Hub Pilot Diameter | 84.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 1.63 |
| Flange Offset | 41.3 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Ford · 5 vehicles |
Premium hub assembly. Built with quality components and 100% tested for consistent performance.
Driven design. Made for driven applications with a 26-spline hub assembly.
Wheel studs included. Comes with wheel studs already installed for a simpler replacement.
Cross-references MOOG Hub Assemblies 513156, SKF BR930246 and 1F2Z1104AA for the same application. See all 7.
DuraGo 295-13156 Front Hub Assembly
DuraGo 295-13156 is a front wheel bearing and hub assembly for select Ford Windstar models. It is built for driven front applications and is engineered to reduce friction while restoring smooth wheel rotation and stable driveline operation.
Key Features
- Front wheel bearing and hub assembly for 1999-2003 Ford Windstar
- Driven hub assembly design
- 5 wheel studs with M12 x 1.5 wheel stud size
- 26 spline quantity
- Triangle flange shape with 139 mm flange diameter and 41.3 mm flange offset
- Hub pilot diameter: 84.4 mm
- Wheel pilot diameter: 63.2 mm
- Brake pilot diameter: 70.9 mm
- ABS not included in this application
Detailed Description
This DuraGo wheel bearing and hub assembly is built to replace worn front hub components on the Ford Windstar, helping restore proper wheel support and reduce rotational drag. DuraGo assembles each hub unit with quality components and tests every assembly to meet its manufacturing standards. The part number 295-13156 also cross-references SKF BR930246 for the same application.
Compatible With 1999-2003 Ford Windstar front applications, this hub assembly is a direct-fit service part for vehicles that use a driven front hub design. It is a practical choice when the original hub shows bearing noise, looseness, or uneven wheel rotation. DuraGo 295-13156 is also referenced in OE-style replacement listings for this vehicle platform.
What It Helps Address
- Wheel bearing noise from a worn front hub
- Front-end looseness or play at the wheel
- Excess friction in the hub assembly
- Uneven wheel rotation caused by hub wear
- Service replacement for a damaged driven hub on Ford Windstar models
Installation Notes and Tips
Verify hub dimensions, spline count, and flange specifications before installation. Confirm that the vehicle uses a driven front hub configuration and compare the original part to DuraGo 295-13156 before assembly. Clean the mounting surfaces, inspect related steering and suspension components, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
DuraGo has more than 45 years of aftermarket manufacturing experience. This hub assembly is produced to industry-leading quality standards and is tested to meet DuraGo’s internal requirements. It is manufactured to ISO/TS 16949:2002 quality standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Ford | Windstar | Front | — |
| 2002 | Ford | Windstar | Front | — |
| 2001 | Ford | Windstar | Front | — |
| 2000 | Ford | Windstar | Front | — |
| 1999 | Ford | Windstar | Front | — |
