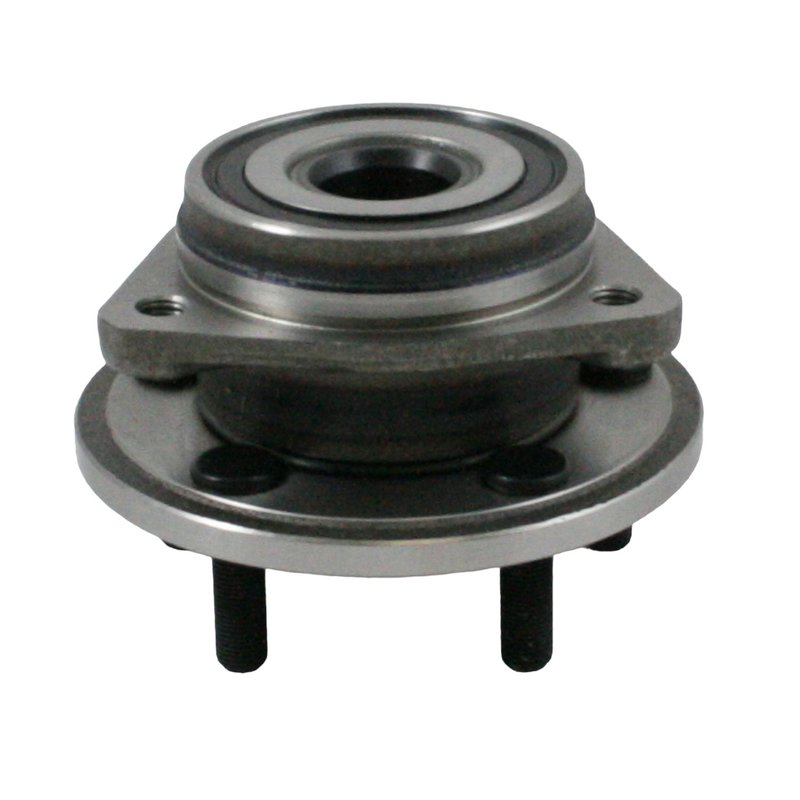

DuraGo 295-13158 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13158 |
|---|---|
| Position | Front |
| Spline Quantity | 27 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.75 |
| Wheel Pilot Diameter | 2.81 |
| Wheel Pilot Diameter | 71.4 |
| Brake Pilot Diameter | 2.83 |
| Brake Pilot Diameter | 71.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 100.1 |
| Hub Pilot Diameter | 3.94 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 1.91 |
| Flange Offset | 48.4 |
| Flange Diameter | 153.5 |
| Flange Diameter | 6.04 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | 1/2-20 |
| Fits | Jeep · 17 vehicles |
Driven hub assembly. Built for smooth wheel support and dependable driveline operation.
Wheel studs included. Ready for assembly with studs already in place.
100% tested. Each hub unit is checked to meet strict quality standards.
Cross-references MOOG Hub Assemblies 513158, SKF BR930219 and Timken HA597449 for the same application. See all 8.
DuraGo 295-13158 Front Wheel Hub Assembly
The DuraGo 295-13158 wheel bearing and hub assembly is built for front driveline service on select Jeep applications. It is a driven hub assembly with 5 wheel studs, M12 x 1.75 wheel stud size, and a 27-spline design for direct replacement use on Jeep TJ, Wrangler, and Cherokee front positions.
Key Features
- Driven front wheel bearing and hub assembly
- 27 spline quantity for the specified application
- 5 wheel studs with M12 x 1.75 stud size
- Triangle flange shape with 153.5 mm flange diameter
- Hub pilot diameter: 100.1 mm
- Wheel pilot diameter: 71.4 mm
- Brake pilot diameter: 71.9 mm
- Flange offset: 48.4 mm
- Flange bolt hole quantity: 3
- ABS: No
Detailed Description
DuraGo 295-13158 is a front wheel bearing and hub assembly engineered for Jeep TJ, Wrangler, and Cherokee fitments listed below. This driven hub assembly uses a 27-spline configuration and a 5-stud wheel mounting pattern to match the specified front axle application. DuraGo states that its hub assemblies are built with quality components, fully tested, and manufactured to ISO/TS 16949:2002 standards. This part cross-references MOOG 513158 for the same application.
What This Part Helps Address
- Front wheel bearing noise from a worn hub assembly
- Excessive wheel play or looseness at the hub
- Uneven wheel rotation caused by hub wear
- Vibration or roughness from a deteriorated front hub
- Loss of proper wheel mounting integrity at the front axle
Installation Notes and Fitment
- Fits 2000-2006 Jeep TJ, front
- Fits 2000-2006 Jeep Wrangler, front
- Fits 2000-2001 Jeep Cherokee, front
- Fits 1999 Jeep Cherokee, front, 2nd Design / 78mm (3.07") Tall Rotor
Verify spline count, hub pilot diameter, brake pilot diameter, and flange dimensions before installation. This part number 295-13158 is listed for front-position service only and does not use ABS in the provided application data.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards for its hub assemblies.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Jeep | TJ | Front | — |
| 2006 | Jeep | Wrangler | Front | — |
| 2005 | Jeep | TJ | Front | — |
| 2005 | Jeep | Wrangler | Front | — |
| 2004 | Jeep | TJ | Front | — |
| 2004 | Jeep | Wrangler | Front | — |
| 2003 | Jeep | TJ | Front | — |
| 2003 | Jeep | Wrangler | Front | — |
| 2002 | Jeep | TJ | Front | — |
| 2002 | Jeep | Wrangler | Front | — |
| 2001 | Jeep | Cherokee | Front | — |
| 2001 | Jeep | TJ | Front | — |
| 2001 | Jeep | Wrangler | Front | — |
| 2000 | Jeep | Cherokee | Front | — |
| 2000 | Jeep | TJ | Front | — |
| 2000 | Jeep | Wrangler | Front | — |
| 1999 | Jeep | Cherokee | Front | 2nd Design / 78mm ( 3.07" ) Tall Rotor |
