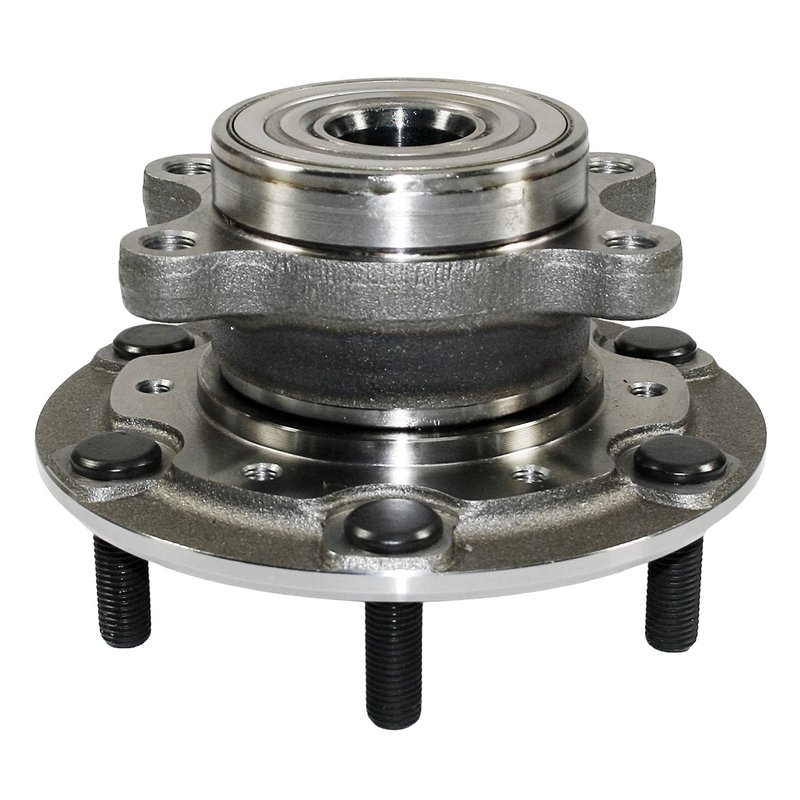

DuraGo 295-13166 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13166 |
|---|---|
| Position | Front |
| Spline Quantity | 17 |
| 143 | 139.7 |
| 143 | 5.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 100 |
| Wheel Pilot Diameter | 3.94 |
| Brake Pilot Diameter | 101 |
| Brake Pilot Diameter | 3.98 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.27 |
| Hub Pilot Diameter | 83 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 2.22 |
| Flange Offset | 56.5 |
| Flange Diameter | 166 |
| Flange Diameter | 6.54 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Honda and Isuzu · 4 vehicles |
OE-style hub assembly. Built as a driven wheel bearing and hub assembly for straightforward replacement.
100% tested. Each unit is checked to meet strict quality standards before it leaves the factory.
Wheel studs included. Comes with studs already installed for a cleaner, faster setup.
Cross-references Timken HA590644, 513166 and 0516286 for the same application. See all 11.
DuraGo Wheel Bearing and Hub Assembly
The DuraGo 295-13166 wheel bearing and hub assembly is a front driven hub assembly built for select 2002-2004 Isuzu Rodeo and 2002 Honda Passport applications. It is engineered to reduce friction at the wheel end and support smoother operation for vehicles showing hub wear, noise, or looseness.
- Front driven wheel bearing and hub assembly
- Fits 2002-2004 Isuzu Rodeo, front
- Fits 2002 Honda Passport, front
- Wheel stud size: M12 x 1.5
- Wheel studs included: yes
- Wheel stud quantity: 6
- 17-spline driven hub design
- Flange bolt hole quantity: 4
- Flange bolt size: M12 x 1.25
- Hub pilot diameter: 83 mm (3.27 in)
- Wheel pilot diameter: 100 mm (3.94 in)
- Brake pilot diameter: 101 mm (3.98 in)
- Flange diameter: 166 mm (6.54 in)
- Flange offset: 56.5 mm (2.22 in)
- Anti-lock braking system: no
Detailed Product Overview
DuraGo 295-13166 is a front wheel bearing and hub assembly for the driven axle on select Isuzu Rodeo and Honda Passport models. The assembly is built with quality components and tested to meet DuraGo’s manufacturing standards, with construction aligned to ISO/TS 16949:2002 quality practices. This part cross-references Timken HA590644 for the same application.
Common Replacement Reasons
- Wheel bearing noise from the front hub area
- Excessive wheel play or looseness
- Uneven hub rotation or rough bearing feel
- Worn driven hub splines or mounting surfaces
- Front-end vibration related to hub wear
Installation Notes
Verify front axle fitment, spline count, flange dimensions, and wheel stud specifications before installation. Confirm that the vehicle does not use ABS at this location, since this assembly is listed for non-ABS applications. Inspect related suspension and brake components during replacement to help ensure proper hub seating and alignment.
Quality Assurance
DuraGo manufactures aftermarket driveline and hub components with a focus on consistent fit and tested performance. The 295-13166 hub assembly is 100% tested before release and produced to industry-leading quality standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Isuzu | Rodeo | 4WD | Front | — |
| 2003 | Isuzu | Rodeo | 4WD | Front | — |
| 2002 | Honda | Passport | 4WD | Front | — |
| 2002 | Isuzu | Rodeo | 4WD | Front | — |
| No rows match your filter. | |||||
