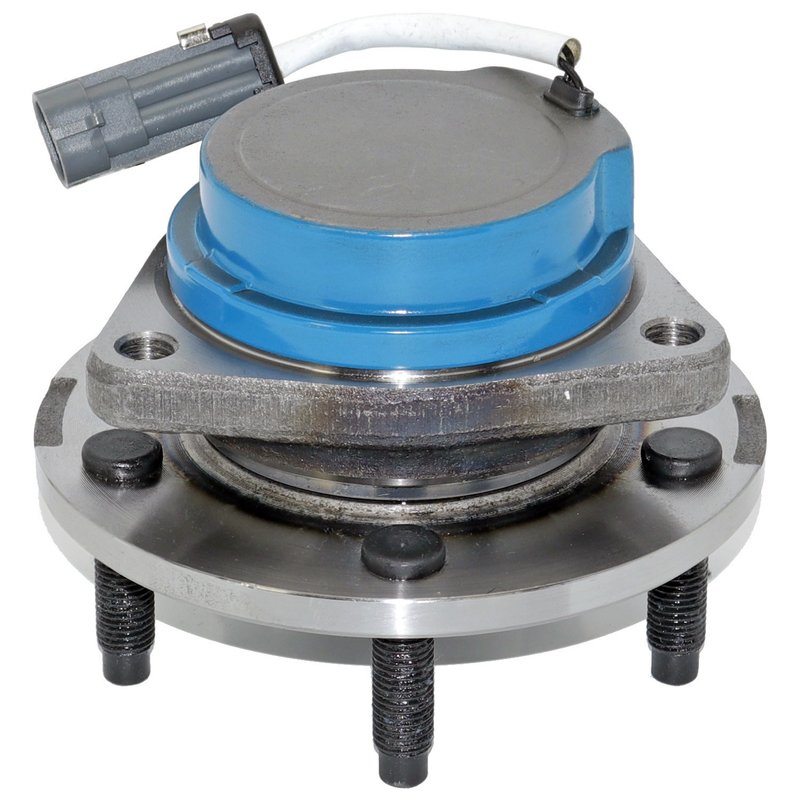

DuraGo 295-13186 Wheel Bearing and Hub Assembly - Front or Rear

Overview of DuraGo 295-13186 Wheel Bearing and Hub Assembly

The DuraGo 295-13186 wheel bearing and hub assembly is designed for reliable performance in select Buick, Cadillac, Chevrolet, and Saturn vehicles. This non-driven hub assembly includes an ABS sensor cord and wheel studs, ensuring compatibility with vehicles equipped with anti-lock braking systems.

• Compatible with Buick CTS, Cadillac STS, Chevrolet Uplander, Saturn Relay, Rendezvous, and Terraza models
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Equipped with an ABS sensor cord for anti-lock braking system functionality
• Non-driven hub assembly with a triangle flange shape and 3 flange bolt holes
• Flange diameter of 145.5 mm (5.73 inches) and flange offset of 42.1 mm (1.66 inches)

Technical Specifications and Features

This DuraGo wheel bearing and hub assembly (part number 295-13186) features a flange bolt size of M12 x 1.75 and a flange bolt hole quantity of 3, designed to fit specific driveline and axle configurations. The assembly includes a wheel pilot diameter of 70.1 mm (2.76 inches) and brake pilot diameter of 70.6 mm (2.78 inches), ensuring precise alignment with brake components. The hub pilot diameter measures 91.4 mm (3.6 inches), providing a secure fit on the axle shaft. The assembly supports 5 wheel studs sized M12 x 1.5 and includes the wheel studs for convenience. The ABS sensor type is a sensor with one connector, and the ABS sensor cord is included to maintain proper anti-lock braking system operation.

Applications and Vehicle Compatibility

This wheel bearing and hub assembly is compatible with a range of vehicles, including Buick CTS, Cadillac STS, Chevrolet Uplander, Saturn Relay, Rendezvous, and Terraza. It is designed specifically for non-driven hubs, making it suitable for front or rear axle applications where the hub is not powered. The assembly supports vehicles equipped with ABS systems, ensuring sensor integration and proper braking performance.

• Replaces worn or damaged wheel bearing and hub assemblies
• Addresses wheel vibration or noise issues related to bearing wear
• Restores ABS sensor functionality for accurate braking control
• Corrects wheel alignment problems caused by hub damage
• Prevents premature tire wear due to hub or bearing failure

Installation Notes and Tips

When installing the DuraGo 295-13186 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s mounting points. Verify that the ABS sensor connector is properly connected to maintain anti-lock braking system operation. Use appropriate torque specifications for the M12 x 1.75 flange bolts and M12 x 1.5 wheel studs. This assembly is designed for non-driven hubs, so confirm the application matches the vehicle’s axle configuration before installation.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM specifications for fit, form, and function. The part number 295-13186 undergoes quality control testing to ensure durability and reliable performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty covering defects in materials and workmanship.
