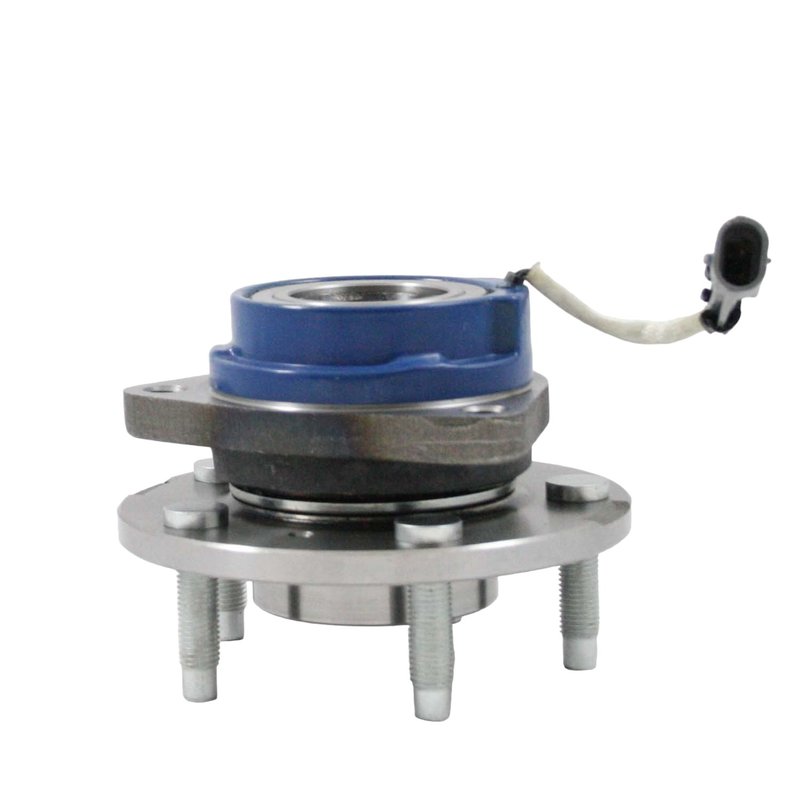

DuraGo 295-13187 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13187 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.6 |
| Hub Pilot Diameter | 91.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Buick, Oldsmobile, and Pontiac · 23 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
ABS sensor included. Built with sensor-type anti-lock braking system support.
100% tested to meet strict quality standards.
Cross-references 513187, 7250216 and 40262016 for the same application. See all 8.
DuraGo 295-13187 Front Wheel Hub Assembly
DuraGo 295-13187 is a front wheel bearing and hub assembly for select Buick, Pontiac, and Oldsmobile applications. It is built with ABS sensor integration and driven hub construction to support proper wheel rotation, braking feedback, and driveline operation on the listed vehicles.
Key Features
- Front wheel bearing and hub assembly for driven applications
- ABS sensor type design with ABS sensor cord included
- 5 wheel studs with M12 x 1.5 wheel stud size
- 33 spline quantity for the specified driveline setup
- Triangle flange shape with 145.5 mm flange diameter
- Hub pilot diameter: 91.4 mm; wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm; flange offset: 42.1 mm
- Direct interchange reference: 513187, BR930148
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front-position service on 2001-2005 Pontiac Aztek, 2001-2005 Pontiac Montana, 2002-2004 Oldsmobile Silhouette, and 2002-2007 Buick Rendezvous models. The assembly uses quality components and is 100% tested to help ensure consistent fit and function. For shoppers searching for a front wheel hub assembly for Buick Rendezvous, Pontiac Aztek front hub replacement, or Pontiac Montana front wheel bearing and hub assembly, DuraGo 295-13187 provides the required ABS sensor interface and driven hub configuration.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to hub-mounted sensor operation
- Excessive wheel play or looseness at the front axle
- Uneven wheel rotation caused by hub wear
- Driveline vibration or rough front-end operation tied to hub failure
Installation Notes and Tips
Verify the vehicle’s front application, driven hub configuration, spline count, and ABS sensor connection before installation. Confirm flange dimensions, pilot diameters, and wheel stud specifications against the removed part to ensure proper alignment on the Buick Rendezvous, Pontiac Aztek, Pontiac Montana, or Oldsmobile Silhouette. Professional installation is recommended for accurate torque, sensor routing, and bearing seating.
Quality Assurance
DuraGo manufactures this hub assembly to ISO/TS 16949:2002 quality standards and tests each unit before release. The brand has more than 45 years of aftermarket manufacturing experience, and part number 295-13187 is built to meet the dimensional and functional requirements of the listed front-wheel applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Buick | Rendezvous | — | Front | — |
| 2006 | Buick | Rendezvous | AWD | Front | — |
| 2006 | Buick | Rendezvous | FWD | Front | — |
| 2005 | Buick | Rendezvous | AWD | Front | — |
| 2005 | Buick | Rendezvous | FWD | Front | — |
| 2005 | Pontiac | Aztek | — | Front | — |
| 2005 | Pontiac | Montana | AWD | Front | — |
| 2004 | Buick | Rendezvous | AWD | Front | — |
| 2004 | Buick | Rendezvous | FWD | Front | — |
| 2004 | Oldsmobile | Silhouette | AWD | Front | — |
| 2004 | Pontiac | Aztek | — | Front | — |
| 2004 | Pontiac | Montana | AWD | Front | — |
| 2003 | Buick | Rendezvous | AWD | Front | — |
| 2003 | Buick | Rendezvous | FWD | Front | — |
| 2003 | Oldsmobile | Silhouette | AWD | Front | — |
| 2003 | Pontiac | Aztek | — | Front | — |
| 2003 | Pontiac | Montana | AWD | Front | — |
| 2002 | Buick | Rendezvous | AWD | Front | — |
| 2002 | Oldsmobile | Silhouette | AWD | Front | — |
| 2002 | Pontiac | Aztek | — | Front | — |
| 2002 | Pontiac | Montana | AWD | Front | — |
| 2001 | Pontiac | Aztek | — | Front | — |
| 2001 | Pontiac | Montana | AWD | Front | — |
