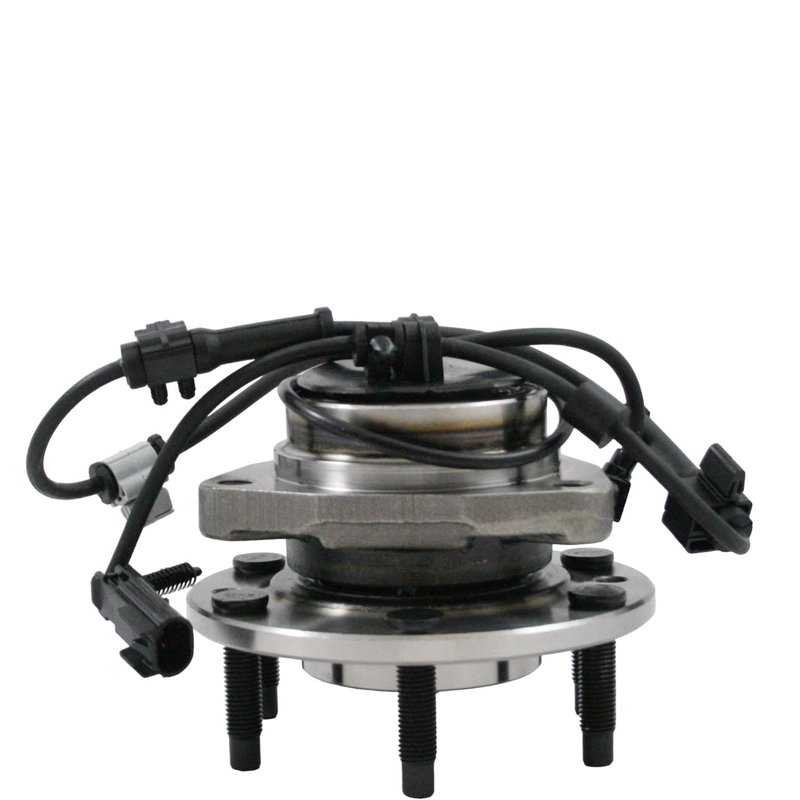

DuraGo 295-13188 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13188 |
|---|---|
| Position | Front |
| Spline Quantity | 27 |
| 143 | 127 |
| 143 | 5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 3.06 |
| Wheel Pilot Diameter | 77.8 |
| Brake Pilot Diameter | 3.11 |
| Brake Pilot Diameter | 79 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.29 |
| Hub Pilot Diameter | 83.5 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.85 |
| Flange Offset | 47 |
| Flange Diameter | 150.3 |
| Flange Diameter | 5.92 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Saab · 50 vehicles |
OE-style hub assembly. Built as a direct replacement with a driven design.
ABS sensor included. Integrated sensor support helps maintain braking system function.
Wheel studs included. Ready for a more complete hub assembly installation.
Cross-references MOOG Hub Assemblies 513188, SKF BR930470 and 0516171 for the same application. See all 10.
DuraGo 295-13188 Front Hub Assembly
DuraGo 295-13188 is a front wheel bearing and hub assembly for select GM and related applications. It is built with premium components, ABS sensor integration, and a driven hub design to support smooth wheel rotation and consistent braking system operation.
Key Features
- Front wheel bearing and hub assembly for driven applications
- ABS sensor type with ABS sensor cord included
- 6 wheel studs with M12 x 1.5 wheel stud size
- 27 spline quantity
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 83.5 mm; wheel pilot diameter: 77.8 mm
- Brake pilot diameter: 79 mm; flange diameter: 150.3 mm
- Flange offset: 47 mm
- Direct interchange references include MOOG 513188 and SKF BR930470
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front-end service on vehicles such as the Chevrolet Trailblazer, GMC Envoy, Saab 9-7x, Isuzu Ascender, Buick Rainier, Chevrolet SSR, Chevrolet Trailblazer EXT, GMC Envoy XL, GMC Envoy XUV, and Oldsmobile Bravada. It is a driven hub assembly with integrated ABS sensor provisions, making it a practical replacement when restoring wheel-end function, braking signal accuracy, and driveline smoothness. DuraGo states that its hub assemblies are assembled with quality components, fully tested, and manufactured to ISO/TS 16949:2002 standards. Part number 295-13188 is also referenced by MOOG 513188 and SKF BR930470 for the same application.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to hub-mounted sensor issues
- Front wheel looseness or play caused by hub wear
- Uneven wheel rotation or vibration from a deteriorated bearing unit
- Reduced driveline efficiency from excess hub friction
Installation Notes and Tips
- Verify front position and driven hub configuration before ordering.
- Confirm wheel stud size, spline count, and flange dimensions against the original part.
- For 2003-2008 Isuzu Ascender applications, follow the listed axle nut torque of 103 ft. lbs.
- Inspect the mating surfaces, axle nut, and ABS wiring during installation.
- After installation, clear any stored ABS codes and road test the vehicle.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The part is built to meet ISO/TS 16949:2002 quality requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Chevrolet | Trailblazer | — | Front | — |
| 2009 | GMC | Envoy | — | Front | — |
| 2009 | Saab | 9-7x | — | Front | — |
| 2008 | Chevrolet | Trailblazer | — | Front | — |
| 2008 | GMC | Envoy | — | Front | — |
| 2008 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2008 | Saab | 9-7x | — | Front | — |
| 2007 | Buick | Rainier | — | Front | — |
| 2007 | Chevrolet | Trailblazer | — | Front | — |
| 2007 | GMC | Envoy | — | Front | — |
| 2007 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2007 | Saab | 9-7x | — | Front | — |
| 2006 | Buick | Rainier | — | Front | — |
| 2006 | Chevrolet | SSR | — | Front | — |
| 2006 | Chevrolet | Trailblazer | — | Front | — |
| 2006 | Chevrolet | Trailblazer EXT | — | Front | — |
| 2006 | GMC | Envoy | — | Front | — |
| 2006 | GMC | Envoy XL | — | Front | — |
| 2006 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2006 | Saab | 9-7x | — | Front | — |
| 2005 | Buick | Rainier | — | Front | — |
| 2005 | Chevrolet | SSR | — | Front | — |
| 2005 | Chevrolet | Trailblazer | — | Front | — |
| 2005 | Chevrolet | Trailblazer EXT | — | Front | — |
| 2005 | GMC | Envoy | — | Front | — |
| 2005 | GMC | Envoy XL | — | Front | — |
| 2005 | GMC | Envoy XUV | — | Front | — |
| 2005 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2005 | Saab | 9-7x | — | Front | — |
| 2004 | Buick | Rainier | — | Front | — |
| 2004 | Chevrolet | SSR | — | Front | — |
| 2004 | Chevrolet | Trailblazer | — | Front | — |
| 2004 | Chevrolet | Trailblazer EXT | — | Front | — |
| 2004 | GMC | Envoy | — | Front | — |
| 2004 | GMC | Envoy XL | — | Front | — |
| 2004 | GMC | Envoy XUV | — | Front | — |
| 2004 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2004 | Oldsmobile | Bravada | AWD | Front | — |
| 2003 | Chevrolet | SSR | — | Front | — |
| 2003 | Chevrolet | Trailblazer | — | Front | — |
| 2003 | Chevrolet | Trailblazer EXT | — | Front | — |
| 2003 | GMC | Envoy | — | Front | — |
| 2003 | GMC | Envoy XL | — | Front | — |
| 2003 | Isuzu | Ascender | — | Front | Axle Nut Torque 103 ft. lbs |
| 2003 | Oldsmobile | Bravada | AWD | Front | — |
| 2002 | Chevrolet | Trailblazer | — | Front | — |
| 2002 | Chevrolet | Trailblazer EXT | — | Front | — |
| 2002 | GMC | Envoy | — | Front | — |
| 2002 | GMC | Envoy XL | — | Front | — |
| 2002 | Oldsmobile | Bravada | AWD | Front | — |
