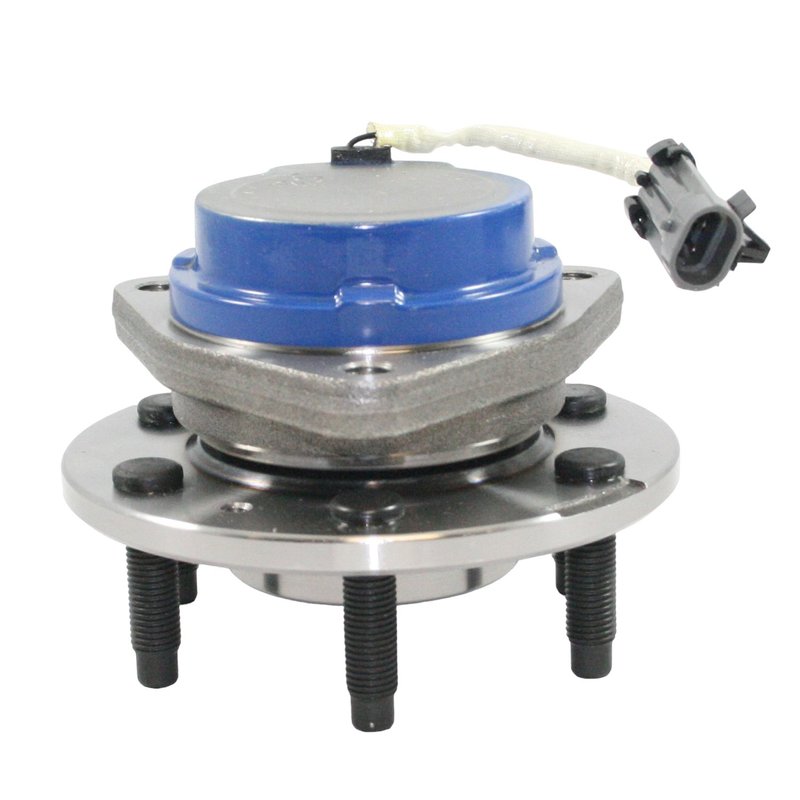

DuraGo 295-13197 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-13197 |
|---|---|
| Position | Front and Rear |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.6 |
| Hub Pilot Diameter | 91.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Buick, Cadillac, Chevrolet, and Pontiac · 29 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Built with quality components to meet strict standards.
ABS sensor included. Integrated sensor support for reliable braking system operation.
Cross-references MOOG Hub Assemblies 513197, SKF BR930313 and SKF BR930631 for the same application. See all 12.
DuraGo 295-13197 Wheel Bearing Hub Assembly
DuraGo 295-13197 is a wheel bearing and hub assembly for front and rear applications listed below. It is built with premium components, 100% tested, and engineered to reduce friction while supporting smoother wheel rotation and improved fuel economy. This DuraGo hub assembly is a direct-fit option for select Cadillac, Chevrolet, Buick, and Pontiac vehicles.
Key Features
- Wheel bearing and hub assembly for non-driven hub applications
- Anti-lock braking system sensor type with ABS sensor cord included
- 6 wheel studs with M12 x 1.5 wheel stud size
- Triangle flange shape with 3-bolt hole mounting flange
- Wheel pilot diameter: 70.1 mm; hub pilot diameter: 91.4 mm
- Brake pilot diameter: 70.6 mm; flange diameter: 145.5 mm
- Flange offset: 42.1 mm
- Manufactured to ISO/TS 16949:2002 quality standards
Detailed Description
DuraGo 295-13197 is a non-driven wheel bearing and hub assembly designed for select front and rear axle positions depending on vehicle application. It features an ABS sensor type design, includes the ABS sensor cord, and uses a triangular flange layout with a 3-hole mounting pattern. This part number is listed for 2004-2009 Cadillac SRX front, 2004-2007 Cadillac CTS front, 2005-2011 Cadillac STS front, 2006-2009 Chevrolet Uplander rear, 2006-2009 Pontiac Montana rear, and 2006-2007 Buick Terraza rear applications. This part cross-references Timken HA590077 and HA590158 for the same application.
What This Part Helps Address
- Wheel bearing noise or rough rotation
- ABS warning light concerns related to the hub sensor assembly
- Excessive wheel play from a worn hub unit
- Vibration or uneven wheel support at the hub
- Reduced efficiency caused by increased friction in a worn assembly
Installation Notes and Fitment
- Fits 2005-2011 Cadillac STS, front
- Fits 2004-2009 Cadillac SRX, front
- Fits 2006-2009 Chevrolet Uplander, rear, triangular 3-bolt hole mounting flange
- Fits 2006-2009 Pontiac Montana, rear, triangular 3-bolt hole mounting flange
- Fits 2007 Buick Terraza, rear, triangular 3-bolt hole mounting flange
- Fits 2006 Buick Terraza, rear, 3 hole triangular flange
- Fits 2004-2007 Cadillac CTS, front
Verify wheel stud size, flange pattern, ABS sensor connection, and hub dimensions before installation. Confirm the vehicle’s front or rear position matches the listed application, and replace the hub assembly only with the correct side and configuration for the vehicle.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The part is produced to meet ISO/TS 16949:2002 requirements, reflecting controlled manufacturing and consistent component quality.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Cadillac | STS | — | RWD | — | — | Front | 6 Stud |
| 2010 | Cadillac | STS | — | RWD | — | — | Front | 6 Stud |
| 2009 | Cadillac | SRX | — | RWD | — | — | Front | — |
| 2009 | Cadillac | STS | Base | RWD | — | — | Front | 6 Stud |
| 2009 | Cadillac | STS | Platinum | RWD | — | — | Front | 6 Stud |
| 2009 | Chevrolet | Uplander | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2009 | Pontiac | Montana | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2008 | Cadillac | SRX | — | RWD | — | — | Front | — |
| 2008 | Cadillac | STS | Base | RWD | — | — | Front | 6 Stud |
| 2008 | Cadillac | STS | Platinum | RWD | — | — | Front | 6 Stud |
| 2008 | Chevrolet | Uplander | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2008 | Pontiac | Montana | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2007 | Buick | Terraza | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2007 | Cadillac | CTS | V | — | 6.0L | V8 | Front | — |
| 2007 | Cadillac | SRX | — | RWD | — | — | Front | — |
| 2007 | Cadillac | STS | Base | RWD | — | — | Front | 6 Stud |
| 2007 | Chevrolet | Uplander | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2007 | Pontiac | Montana | — | — | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2006 | Buick | Terraza | — | FWD | — | — | Rear | 3 Hole Triangular Flange |
| 2006 | Cadillac | CTS | V | — | 6.0L | V8 | Front | — |
| 2006 | Cadillac | SRX | — | RWD | — | — | Front | — |
| 2006 | Cadillac | STS | Base | RWD | — | — | Front | 6 Stud |
| 2006 | Chevrolet | Uplander | — | FWD | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2006 | Pontiac | Montana | — | FWD | — | — | Rear | Triangular 3-Bolt Hole Mounting Flange |
| 2005 | Cadillac | CTS | V | — | 5.7L | V8 | Front | — |
| 2005 | Cadillac | SRX | — | RWD | — | — | Front | — |
| 2005 | Cadillac | STS | — | RWD | — | — | Front | 6 Stud |
| 2004 | Cadillac | CTS | V | — | 5.7L | V8 | Front | — |
| 2004 | Cadillac | SRX | — | RWD | — | — | Front | — |
