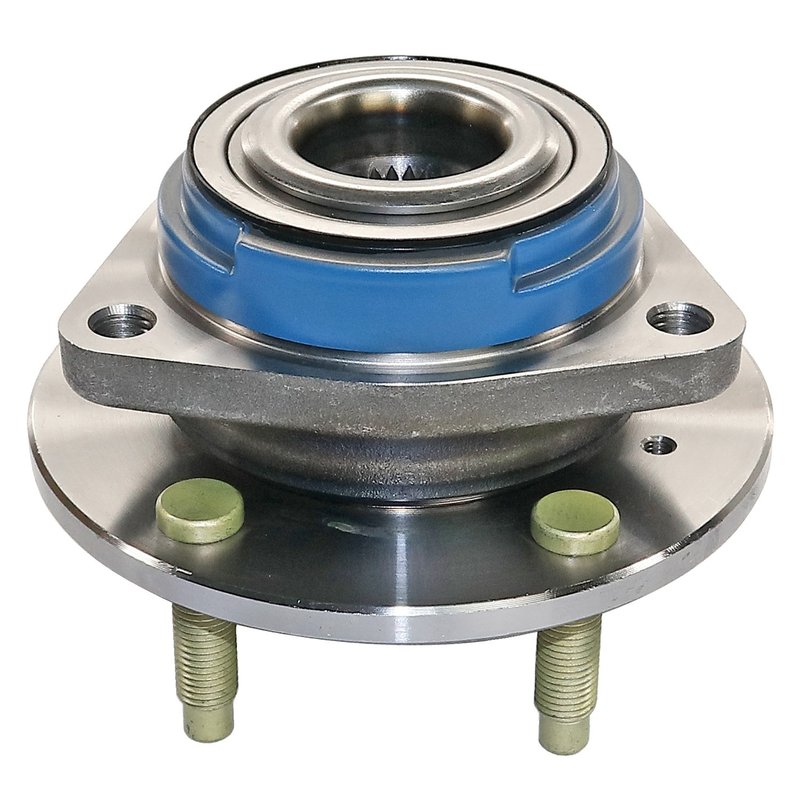

DuraGo 295-13203 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13203 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.6 |
| Hub Pilot Diameter | 91.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Buick, Chevrolet, and Pontiac · 37 vehicles |
Driven hub assembly. Built for smooth wheel support and reduced friction.
Wheel studs included. Ready for a more complete hub assembly replacement.
ISO/TS 16949:2002. Manufactured to recognized quality standards.
Cross-references MOOG Hub Assemblies 513203, SKF BR930184 and Timken HA590085 for the same application. See all 10.
DuraGo 295-13203 Front Wheel Hub Assembly
DuraGo 295-13203 is a front wheel bearing and hub assembly for select Chevrolet, Pontiac, and Buick vehicles. It is built with premium components, tested for fit and function, and engineered to reduce friction at the wheel end for smoother operation.
Key Features
- Front driven wheel bearing and hub assembly
- 33 spline quantity
- 5 wheel studs with M12 x 1.5 wheel stud size
- Triangle flange shape with 145.5 mm flange diameter
- Hub pilot diameter: 91.4 mm
- Wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm
- Flange offset: 42.1 mm
- Wheel studs included
- 100% tested for quality control
Detailed Description
This DuraGo wheel bearing and hub assembly is a direct-fit front replacement for applications including 2000-2008 Chevrolet Impala, 2004-2008 Pontiac Grand Prix, 2003-2007 Buick Rendezvous, 2003-2007 Chevrolet Monte Carlo, 2005 Buick Allure, 2003-2005 Buick Century, 2005 Buick LaCrosse, 2003-2005 Pontiac Aztek, 2003-2005 Pontiac Montana, and 2003-2004 Buick Regal. It is a driven hub design with no ABS provision, and it uses the specified hub, wheel, and brake pilot dimensions to support proper wheel mounting and alignment at the front axle. This part cross-references SKF BR930184 and Timken HA590085 for the same application. DuraGo 295-13203 is a practical replacement choice when servicing front hub wear on Impala, Grand Prix, and Monte Carlo platforms.
Common Problems This Part Can Help Address
- Front wheel bearing noise or growling
- Excessive hub play or looseness
- Uneven wheel rotation caused by hub wear
- Vibration from a worn front hub assembly
- Reduced efficiency from increased friction at the wheel end
Installation Notes and Tips
Verify front axle fitment, spline count, and pilot dimensions before installation. Clean the mounting surface thoroughly, inspect the knuckle and axle interface for wear, and torque all fasteners to the vehicle manufacturer’s specifications. Because this assembly is listed without ABS, confirm the vehicle’s brake and sensor configuration before ordering.
Quality Assurance
DuraGo has over 45 years of aftermarket manufacturing experience. This hub assembly is built to industry-leading quality standards, assembled with high-quality components, and manufactured to meet ISO/TS 16949:2002 requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Chevrolet | Impala | — | Front | — |
| 2008 | Pontiac | Grand Prix | — | Front | — |
| 2007 | Buick | Rendezvous | — | Front | — |
| 2007 | Chevrolet | Impala | — | Front | — |
| 2007 | Chevrolet | Monte Carlo | — | Front | — |
| 2007 | Pontiac | Grand Prix | — | Front | — |
| 2006 | Buick | Rendezvous | FWD | Front | — |
| 2006 | Chevrolet | Impala | — | Front | — |
| 2006 | Chevrolet | Monte Carlo | — | Front | — |
| 2006 | Pontiac | Grand Prix | — | Front | — |
| 2005 | Buick | Allure | — | Front | — |
| 2005 | Buick | Century | — | Front | — |
| 2005 | Buick | LaCrosse | — | Front | — |
| 2005 | Buick | Rendezvous | FWD | Front | — |
| 2005 | Chevrolet | Impala | — | Front | — |
| 2005 | Chevrolet | Monte Carlo | — | Front | — |
| 2005 | Pontiac | Aztek | — | Front | — |
| 2005 | Pontiac | Grand Prix | — | Front | — |
| 2005 | Pontiac | Montana | FWD | Front | — |
| 2004 | Buick | Century | — | Front | — |
| 2004 | Buick | Regal | — | Front | — |
| 2004 | Buick | Rendezvous | FWD | Front | — |
| 2004 | Chevrolet | Impala | — | Front | — |
| 2004 | Chevrolet | Monte Carlo | — | Front | — |
| 2004 | Pontiac | Aztek | — | Front | — |
| 2004 | Pontiac | Grand Prix | — | Front | — |
| 2004 | Pontiac | Montana | FWD | Front | — |
| 2003 | Buick | Century | — | Front | — |
| 2003 | Buick | Regal | — | Front | — |
| 2003 | Buick | Rendezvous | FWD | Front | — |
| 2003 | Chevrolet | Impala | — | Front | — |
| 2003 | Chevrolet | Monte Carlo | — | Front | — |
| 2003 | Pontiac | Aztek | — | Front | — |
| 2003 | Pontiac | Montana | FWD | Front | — |
| 2002 | Chevrolet | Impala | — | Front | — |
| 2001 | Chevrolet | Impala | — | Front | — |
| 2000 | Chevrolet | Impala | — | Front | — |
