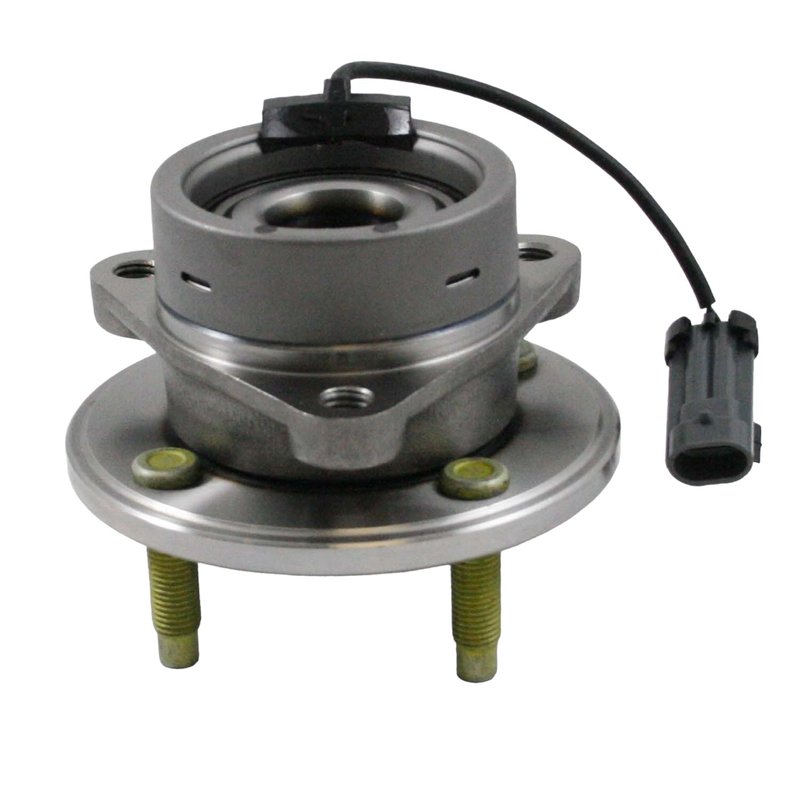

DuraGo 295-13204 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Chevrolet, Pontiac, and Saturn

The DuraGo 295-13204 wheel bearing and hub assembly is engineered to provide dependable performance for select Chevrolet, Pontiac, and Saturn models. Designed specifically for driven hubs, this assembly integrates an ABS sensor to maintain your vehicle's braking system functionality.

• Compatible with Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Saturn Pursuit
• 33 spline quantity for precise fitment
• Includes 4 M12 x 1.5 wheel studs
• Equipped with ABS sensor and ABS sensor cord
• Triangle flange shape with 3 flange bolt holes (M12 x 1.75 bolt size)
• Driven type hub assembly with flange diameter of 132.1 mm (5.2 inches)
• Wheel pilot diameter options: 2.22 inches and 56.5 mm
• Brake pilot diameter options: 2.36 inches and 60 mm
• Hub pilot diameter options: 3.35 inches and 85 mm
• Flange offset measurements: 1.54 inches and 39 mm

Detailed Product Description

The DuraGo 295-13204 wheel bearing and hub assembly is designed for driven axle applications on Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Saturn Pursuit vehicles. This assembly features a 33-spline shaft interface ensuring a secure connection to the drivetrain. The triangle flange shape with three bolt holes (M12 x 1.75) provides a stable mounting surface. Four M12 x 1.5 wheel studs are included to accommodate the wheel installation, supporting proper wheel alignment and secure fitment.

Integral to this assembly is the ABS sensor and sensor cord, which are essential for maintaining the anti-lock braking system's functionality. The hub pilot diameter of 3.35 inches (85 mm) and brake pilot diameter of 2.36 inches (60 mm) ensure precise centering of the hub and brake components, reducing vibration and wear. The flange offset of 1.54 inches (39 mm) is designed to maintain proper wheel positioning relative to the suspension and steering components.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Saturn Pursuit
• Restores proper ABS sensor function to prevent braking system warnings
• Eliminates wheel vibration caused by hub or bearing wear
• Addresses wheel stud damage or corrosion issues
• Corrects flange offset problems affecting wheel alignment

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the wheel bearing and hub assembly matches the vehicle’s specifications, including spline count and flange bolt pattern. The included wheel studs simplify wheel mounting, but flange bolts are not included and must be reused or replaced separately. Handle the ABS sensor cord carefully to avoid damage during installation. Torque all fasteners to manufacturer specifications to ensure safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. This part includes an ABS sensor to maintain braking system integrity. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or manufacturer for exact warranty terms.
