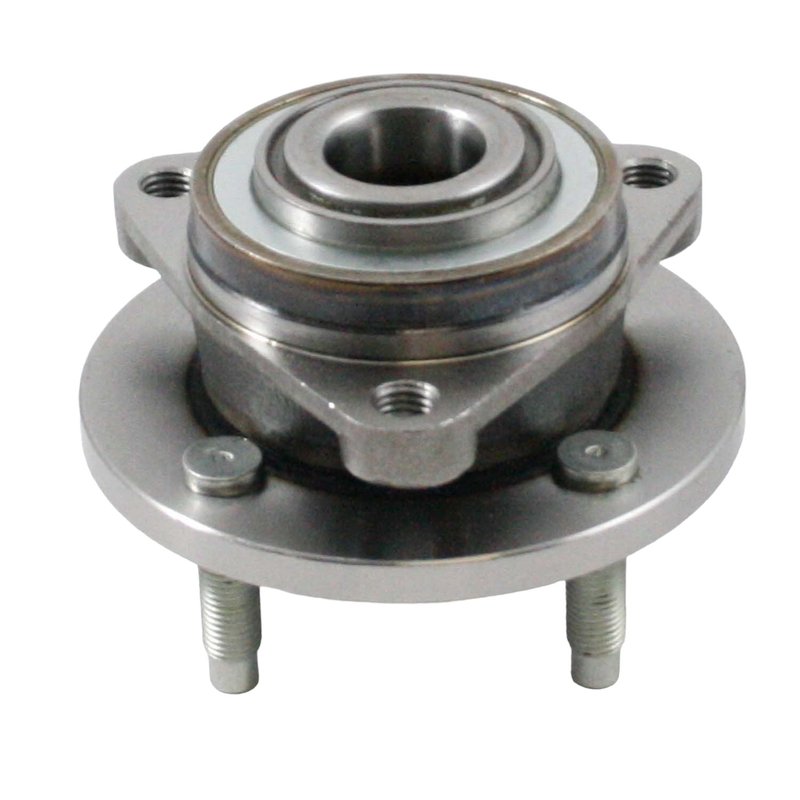

DuraGo 295-13205 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13205 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| 143 | 100 |
| 143 | 3.94 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.22 |
| Wheel Pilot Diameter | 56.5 |
| Brake Pilot Diameter | 2.36 |
| Brake Pilot Diameter | 60 |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.35 |
| Hub Pilot Diameter | 85 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 1.54 |
| Flange Offset | 39 |
| Flange Diameter | 132.1 |
| Flange Diameter | 5.2 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Chevrolet, Pontiac, and Saturn · 22 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Each hub unit is checked to meet strict quality standards.
Driven design. Built as a driven wheel bearing and hub assembly.
Cross-references MOOG Hub Assemblies 513205, SKF BR930315 and Timken HA590069 for the same application. See all 7.
DuraGo 295-13205 Wheel Bearing Hub Assembly
The DuraGo 295-13205 wheel bearing and hub assembly is a driven front hub assembly built for select Chevrolet, Pontiac, and Saturn applications. It is engineered to reduce friction, support smooth wheel rotation, and help restore proper driveline performance on vehicles such as the Chevrolet Cobalt, Pontiac G5, and Saturn Ion.
Key Features
- Driven front wheel bearing and hub assembly
- 33-spline design with 4 wheel studs
- Wheel stud size: M12 x 1.5
- Flange shape: triangle
- Hub pilot diameter: 85 mm
- Wheel pilot diameter: 56.5 mm
- Brake pilot diameter: 60 mm
- Flange diameter: 132.1 mm
- Flange offset: 39 mm
- 100% tested for quality control
- Manufactured to ISO/TS 16949:2002 quality standards
Detailed Description
DuraGo 295-13205 is a front wheel bearing and hub assembly for driven applications that require a precise hub interface and stable wheel mounting. This assembly is built with quality components and tested before release to help ensure consistent fit and performance. It is a direct replacement option for 2005-2010 Chevrolet Cobalt front, 2007-2009 Pontiac G5 front, 2005-2007 Saturn Ion front, and 2005-2006 Pontiac Pursuit front applications. This part cross-references SKF BR930315 and Timken HA590069 for the same application.
What This Part Helps Address
- Wheel bearing noise from a worn front hub assembly
- Excessive friction at the wheel end
- Loose or inconsistent wheel hub operation
- Vibration or rough rotation from hub wear
- Restoring proper front driveline support on driven applications
Installation Notes and Tips
Verify spline count, wheel stud size, flange offset, and pilot diameters before installation. Confirm front position and driven hub application on the vehicle. For best results, inspect related suspension, brake, and axle components during replacement to avoid repeat labor. Use the vehicle service procedure and torque specifications for the Chevrolet Cobalt, Pontiac G5, Saturn Ion, or Pontiac Pursuit application.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit to help confirm it meets internal requirements. The brand has over 45 years of aftermarket manufacturing experience, and this part is produced to ISO/TS 16949:2002 standards.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | Base | Front | 4 Stud |
| 2010 | Chevrolet | Cobalt | LS | Front | 4 Stud |
| 2010 | Chevrolet | Cobalt | LT | Front | 4 Stud |
| 2009 | Chevrolet | Cobalt | LS | Front | 4 Stud |
| 2009 | Chevrolet | Cobalt | LT | Front | 4 Stud |
| 2009 | Pontiac | G5 | — | Front | — |
| 2008 | Chevrolet | Cobalt | LS | Front | 4 Stud |
| 2008 | Chevrolet | Cobalt | LT | Front | 4 Stud |
| 2008 | Pontiac | G5 | — | Front | — |
| 2007 | Chevrolet | Cobalt | — | Front | 4 Stud |
| 2007 | Pontiac | G5 | — | Front | — |
| 2007 | Saturn | Ion | 2 | Front | — |
| 2007 | Saturn | Ion | 3 | Front | — |
| 2006 | Chevrolet | Cobalt | — | Front | 4 Stud |
| 2006 | Pontiac | Pursuit | — | Front | — |
| 2006 | Saturn | Ion | 2 | Front | — |
| 2006 | Saturn | Ion | 3 | Front | — |
| 2005 | Chevrolet | Cobalt | — | Front | 4 Stud |
| 2005 | Pontiac | Pursuit | — | Front | — |
| 2005 | Saturn | Ion | 2 | Front | — |
| 2005 | Saturn | Ion | 1 | Front | — |
| 2005 | Saturn | Ion | 3 | Front | — |
