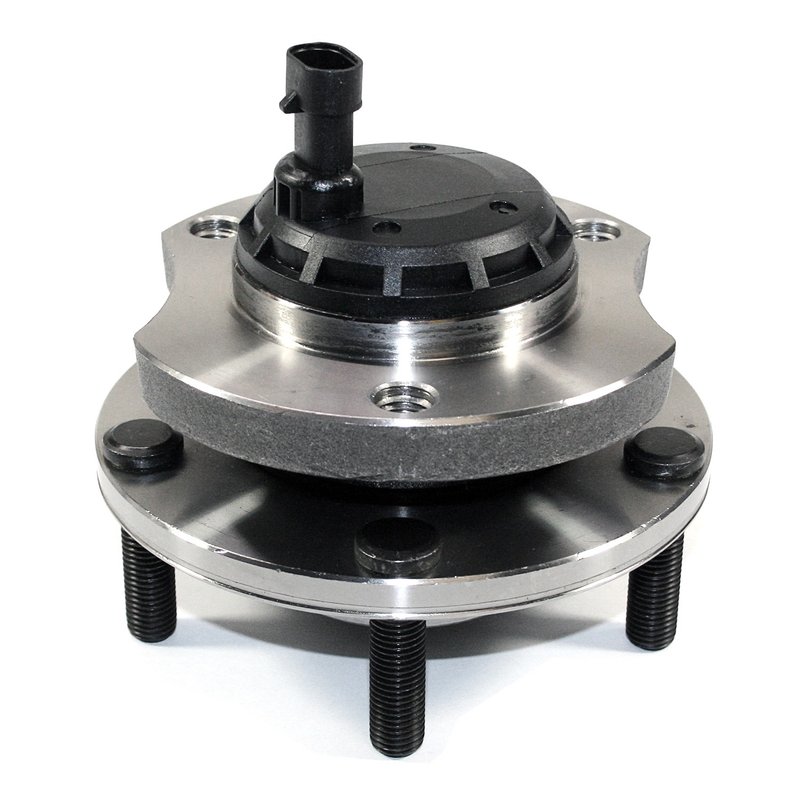

DuraGo 295-13218 Wheel Bearing and Hub Assembly - Front Right

Durable Wheel Bearing and Hub Assembly for Pontiac GTO

The DuraGo 295-13218 wheel bearing and hub assembly is engineered specifically for the Pontiac GTO, providing reliable performance and precise fitment. Designed as a non-driven hub assembly, it integrates an ABS sensor to maintain your vehicle's anti-lock braking system functionality.

Key Features of DuraGo 295-13218 Wheel Bearing and Hub Assembly

• Compatible with Pontiac GTO models
• Non-driven hub assembly with integrated ABS sensor
• Wheel stud size: M12 x 1.5 with 5 wheel studs included
• Flange bolt hole quantity: 3 with M12 x 1.75 flange bolt size
• Flange diameter: 140 mm (5.51 inches) with modified flange shape
• Wheel pilot diameter: 69.5 mm (2.74 inches)
• Brake pilot diameter: 71.5 mm (2.81 inches)
• Hub pilot diameter: 76 mm (2.99 inches)
• Flange offset: 43 mm (1.69 inches)
• Includes one ABS sensor connector

Detailed Description of the DuraGo 295-13218 Hub Assembly

This DuraGo wheel bearing and hub assembly (part number 295-13218) is designed to meet the exact specifications required for the Pontiac GTO. The assembly features a modified flange shape with a flange diameter of 140 mm, ensuring proper alignment and secure mounting. It includes five M12 x 1.5 wheel studs, which are pre-installed for convenience. The flange bolt hole quantity is three, accommodating M12 x 1.75 flange bolts (not included). The hub pilot diameter measures 76 mm, providing a precise fit to the vehicle’s hub mounting surface.

Equipped with an ABS sensor and a single connector, this assembly supports the anti-lock braking system functionality, critical for maintaining vehicle safety and control. The flange offset of 43 mm helps maintain proper wheel positioning relative to the suspension and brake components. This assembly is intended for non-driven wheels, making it suitable for rear axle applications on the Pontiac GTO.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Pontiac GTO
• Restores ABS sensor functionality to maintain anti-lock braking system performance
• Eliminates wheel noise or vibration caused by faulty bearings
• Corrects wheel alignment issues related to hub assembly wear
• Prevents premature tire wear due to hub or bearing failure

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s hub mounting points. Since flange bolts are not included, use the original hardware or source compatible M12 x 1.75 bolts. Confirm the ABS sensor connector is properly connected to maintain system functionality. It is recommended to inspect related suspension and brake components during installation for overall system integrity.

Quality Assurance and Warranty Information

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM specifications for fit, form, and function. While specific warranty details for part number 295-13218 are not provided here, DuraGo typically offers limited warranties covering defects in materials and workmanship. Consult the product packaging or manufacturer documentation for exact warranty terms.
