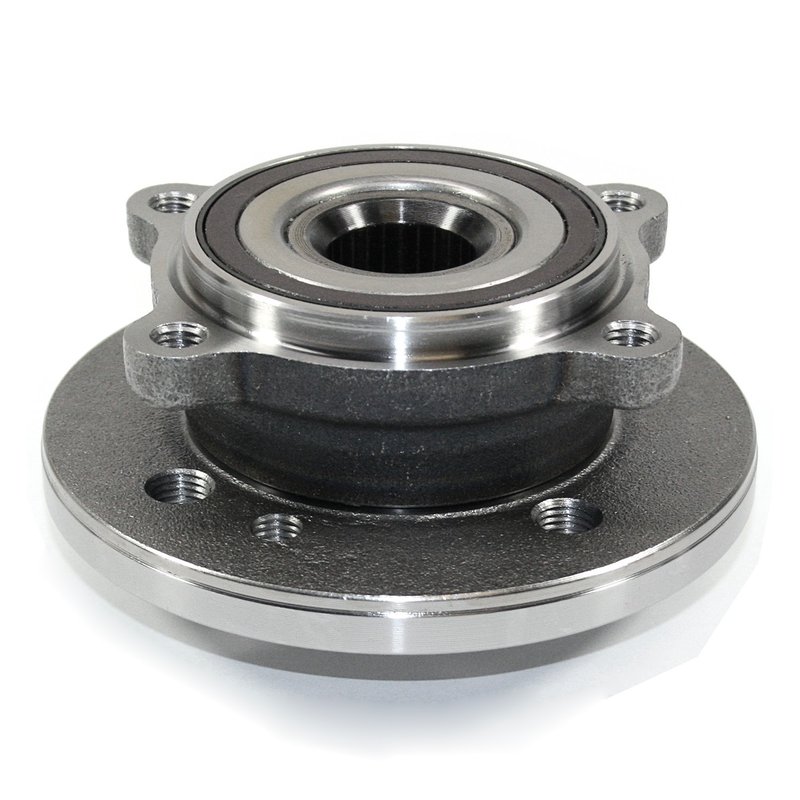

DuraGo 295-13226 Wheel Bearing and Hub Assembly - Front

Overview of DuraGo 295-13226 Wheel Bearing and Hub Assembly

The DuraGo 295-13226 wheel bearing and hub assembly is engineered for the Mini Cooper, providing reliable driveline performance. Designed to meet the specific requirements of this vehicle, it supports the anti-lock braking system and ensures smooth wheel rotation.

• Compatible with Mini Cooper models
• Driven type hub assembly with 26 spline quantity
• Includes anti-lock braking system (ABS) encoder type
• Flange bolt hole quantity: 4 with M10 x 1.5 flange bolt size
• Wheel stud size M12 x 1.5, 4 wheel studs (not included)
• Modified flange shape with 1.73 inch (44 mm) flange offset
• Flange diameter of 137.5 mm (5.41 inches)
• Wheel pilot diameter options: 2.2 inches and 56 mm
• Brake pilot diameter options: 2.52 inches and 64 mm
• Hub pilot diameter options: 3.19 inches and 81 mm

Detailed Product Description

This DuraGo wheel bearing and hub assembly (part number 295-13226) is designed specifically for the Mini Cooper, ensuring precise fitment and optimal driveline function. The assembly features a 26-spline driven hub that supports the vehicle’s torque transfer requirements. It incorporates an ABS encoder to maintain accurate wheel speed data for the anti-lock braking system, enhancing safety and control.

The flange is modified with four bolt holes sized M10 x 1.5, and the flange offset measures 1.73 inches (44 mm), which aligns with the Mini Cooper’s wheel mounting specifications. The wheel stud size is M12 x 1.5, with four studs required (not included). Multiple pilot diameters are specified to ensure proper alignment with the wheel and brake components, including wheel pilot diameters of 2.2 inches and 56 mm, brake pilot diameters of 2.52 inches and 64 mm, and hub pilot diameters of 3.19 inches and 81 mm.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Mini Cooper vehicles
• Resolves wheel noise or vibration caused by bearing wear
• Restores proper ABS function by replacing faulty encoder-equipped hubs
• Corrects wheel alignment issues related to hub flange damage
• Prevents premature tire wear due to hub assembly failure

Installation Notes and Tips

When installing the DuraGo 295-13226 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes and wheel stud sizes match the vehicle specifications. Since wheel studs and flange bolts are not included, reuse existing hardware if in good condition or source replacements separately. Proper torque specifications should be followed to avoid damage to the hub or wheel components. Confirm ABS sensor connections are properly aligned with the encoder to maintain system functionality.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. The part number 295-13226 undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
