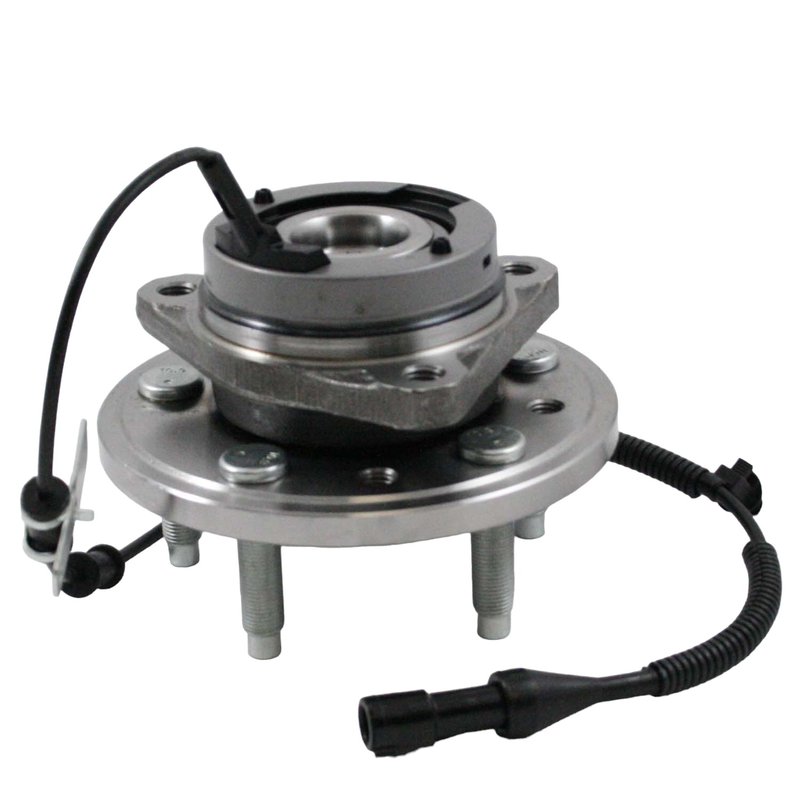

DuraGo 295-13233 Wheel Bearing and Hub Assembly - Front Right
| Brand | DuraGo 295-13233 |
|---|---|
| Position | Front Right |
| Spline Quantity | 26 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 1/2-20 |
| Wheel Pilot Diameter | 2.49 |
| Wheel Pilot Diameter | 63.2 |
| Brake Pilot Diameter | 2.8 |
| Brake Pilot Diameter | 71 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.56 |
| Hub Pilot Diameter | 90.5 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.63 |
| Flange Offset | 41.5 |
| Flange Diameter | 156 |
| Flange Diameter | 6.14 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Ford · 4 vehicles |
OE-style hub assembly. Built as a driven wheel bearing and hub assembly.
ABS sensor included. Integrated sensor support for anti-lock braking systems.
Wheel studs included. Ready for assembly with studs already in place.
Cross-references Timken HA590025, 3F2Z1104AB and 513233 for the same application. See all 7.
DuraGo Wheel Bearing and Hub Assembly for Ford Freestar
The DuraGo 295-13233 wheel bearing and hub assembly is built for the front right position on select 2004-2007 Ford Freestar models. It is a driven hub assembly with ABS sensor provisions, making it a direct replacement for vehicles that need stable wheel support and reliable wheel speed signal integration.
Key Features
- Fits 2004-2007 Ford Freestar, front right
- Driven wheel bearing and hub assembly
- ABS sensor type: sensor
- ABS sensor cord included
- 5 wheel studs with 1/2-20 stud size
- 26 spline quantity
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 3.56 in. / 90.5 mm
- Wheel pilot diameter: 2.49 in. / 63.2 mm
- Brake pilot diameter: 2.8 in. / 71 mm
Detailed Description
DuraGo 295-13233 is a front right wheel bearing and hub assembly engineered for the 2004-2007 Ford Freestar. It is designed as a driven hub assembly with integrated ABS sensor support, 5 wheel studs, and a triangle flange layout for the specified application. The assembly uses quality components and is 100% tested during production to help ensure consistent fit and function. This part cross-references Timken HA590025 for the same application.
For buyers searching for a Ford Freestar front wheel hub assembly, front right hub bearing replacement, or ABS wheel bearing and hub assembly for 2004-2007 Ford Freestar, part number 295-13233 provides the fitment and specifications needed for a direct-service replacement.
Common Problems This Part Can Address
- Wheel bearing noise from the front right corner
- Excessive hub play or looseness
- ABS warning light caused by hub sensor issues
- Uneven wheel support at the driven front hub
- Vibration or rough rotation from a worn hub assembly
Installation Notes and Tips
Confirm front right fitment before ordering and verify the driven hub configuration, ABS sensor connection, flange bolt pattern, and spline count against the original part. Inspect the mating surfaces, axle interface, and brake components during replacement to help ensure proper seating and operation. After installation, clear any stored ABS codes and verify wheel speed signal operation.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that its hub assemblies meet ISO/TS 16949:2002 requirements. The brand also notes that each unit is 100% tested before release.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | Freestar | Front Right | — |
| 2006 | Ford | Freestar | Front Right | — |
| 2005 | Ford | Freestar | Front Right | — |
| 2004 | Ford | Freestar | Front Right | — |
| No rows match your filter. | ||||
