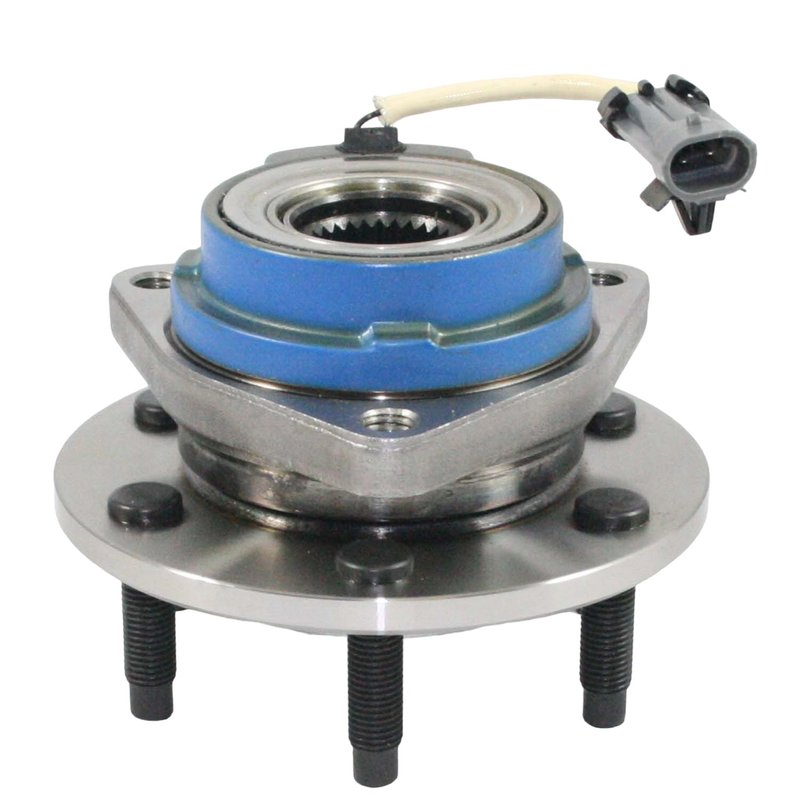

DuraGo 295-13236 Wheel Bearing and Hub Assembly - Front or Rear

Reliable Wheel Bearing and Hub Assembly for GM Vehicles

The DuraGo 295-13236 wheel bearing and hub assembly is engineered for precise fitment on select Buick, Chevrolet, Pontiac, and Saturn models. Designed to meet OEM specifications, this driven hub assembly supports smooth wheel rotation and integrates an ABS sensor for enhanced braking performance.

• Compatible with Buick Montana, Chevrolet Uplander, Pontiac Montana, Saturn Relay, and Terraza
• Driven type hub assembly with 33 spline quantity
• Includes ABS sensor cord for anti-lock braking system functionality
• Wheel stud size M12 x 1.5 with 6 wheel studs included
• Triangle flange shape with 3 flange bolt holes (M12 x 1.75 flange bolt size)
• Flange diameter of 146 mm and flange offset of 42 mm
• Wheel pilot diameter of 70.1 mm and brake pilot diameter of 70.6 mm

Detailed Product Features and Specifications

The DuraGo 295-13236 hub assembly features a 33-spline driven design, ensuring compatibility with the drivetrain components of the specified GM vehicles. The assembly includes six M12 x 1.5 wheel studs, facilitating secure wheel mounting. Its triangle flange shape with three bolt holes (M12 x 1.75) provides a stable connection to the vehicle’s axle. The hub pilot diameter measures 91.4 mm, while the wheel pilot diameter is 70.1 mm, matching factory dimensions for proper alignment. Brake pilot diameter is 70.6 mm, supporting brake rotor fitment. The flange offset of 42 mm and flange diameter of 146 mm are engineered to maintain correct wheel positioning and clearance. An integrated ABS sensor cord supports the vehicle’s anti-lock braking system, enhancing safety and control.

Applications and Common Issues Addressed

• Replacement for worn or damaged wheel bearing and hub assemblies on Buick Montana and Chevrolet Uplander
• Resolves wheel noise or roughness caused by bearing wear
• Restores proper ABS sensor function to prevent braking system faults
• Corrects wheel play or looseness due to hub assembly failure
• Supports safe and stable wheel mounting on Pontiac Montana and Saturn Relay

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing hub assembly carefully, noting the orientation of the ABS sensor and connector. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s mounting points. Use proper torque specifications for flange bolts and wheel studs to avoid damage. Confirm ABS sensor connector is properly seated to maintain system functionality. It is recommended to inspect related components such as brake rotors and axle shafts during installation.

Quality Assurance and Warranty Information

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The 295-13236 part undergoes rigorous quality control to ensure reliable operation under normal driving conditions. This product includes an ABS sensor cord to maintain anti-lock braking system integrity. Warranty coverage details should be confirmed with the original product documentation or supplier.
