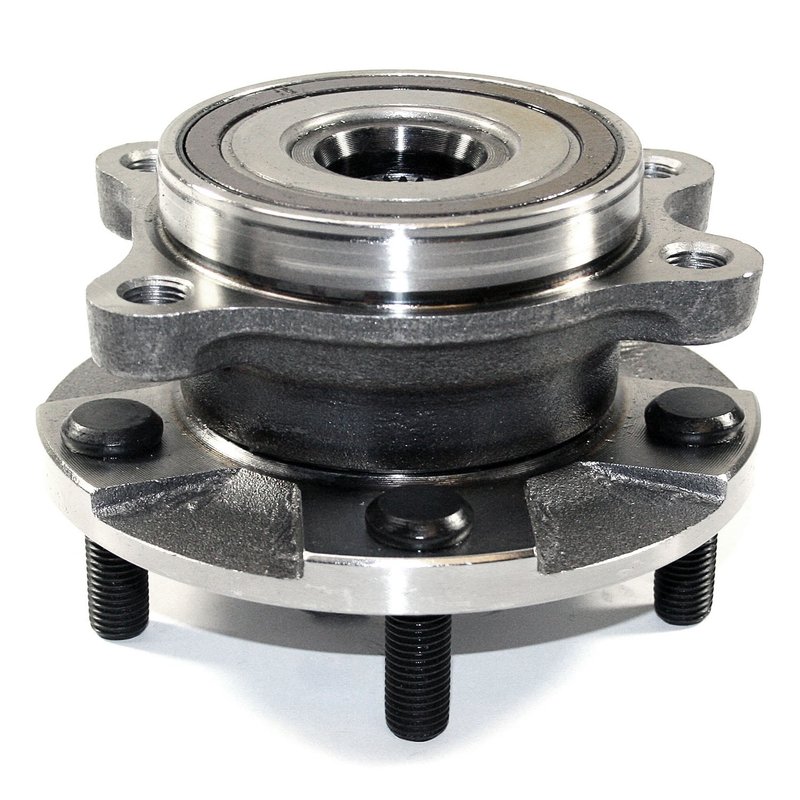

DuraGo 295-13257 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13257 |
|---|---|
| Position | Front |
| Spline Quantity | 26 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.36 |
| Wheel Pilot Diameter | 60 |
| Brake Pilot Diameter | 2.44 |
| Brake Pilot Diameter | 62 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.54 |
| Hub Pilot Diameter | 90 |
| Flange Shape | Modified |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.87 |
| Flange Offset | 47.5 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Lexus, Scion, and Toyota · 33 vehicles |
Premium hub assembly. 100% tested to meet strict quality standards.
ABS encoder type. Integrated sensing for reliable braking system input.
Driven hub assembly. Built for applications that require a driven design.
Cross-references MOOG Hub Assemblies 513257, SKF BR930615 and Timken HA590165 for the same application. See all 8.
DuraGo 295-13257 Front Wheel Hub Assembly
DuraGo 295-13257 is a front wheel bearing and hub assembly for driven applications that require ABS encoder functionality. It is built with quality components and tested to meet DuraGo’s manufacturing standards, helping restore smooth wheel rotation and consistent hub performance on supported Toyota, Scion, and Lexus models.
Key Features
- Front wheel bearing and hub assembly for driven axle applications
- ABS encoder type for vehicles equipped with anti-lock braking systems
- Wheel studs included
- 26-spline hub design
- Wheel stud size: M12 x 1.5
- Hub pilot diameter: 90 mm
- Brake pilot diameter: 62 mm
- Flange diameter: 139 mm
- Flange offset: 47.5 mm
- Flange shape: modified
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front-end service on vehicles such as the 2006-2012 Toyota RAV4, 2008-2015 Scion xB, 2011-2016 Scion tC, 2010-2012 Lexus HS250h, 2012-2018 Toyota Prius V, and 2017-2018 Toyota Corolla iM. The assembly uses an ABS encoder type sensor interface and a driven hub configuration, making it a direct replacement choice when the original hub shows wear, noise, or ABS-related issues. Part number 295-13257 is also referenced in the aftermarket under MOOG 513257, SKF BR930615, and Timken HA590165 for the same application.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to encoder function
- Excessive wheel play or looseness at the hub
- Rough wheel rotation that can affect drivability
- Reduced fuel economy caused by increased hub friction
Installation Notes and Tips
Verify front-position fitment and confirm the vehicle uses the correct driven hub and ABS encoder setup before installation. Match the wheel stud size, hub pilot diameter, and brake pilot diameter to the original part for proper fit. For Toyota RAV4, Prius V, Corolla iM, Scion xB, Scion tC, and Lexus HS250h applications, compare the original hub dimensions and connector style to ensure the replacement aligns with the vehicle’s existing setup.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards, supporting consistent fit and performance across the listed applications. Part number 295-13257 is built as a replacement wheel bearing and hub assembly for front service on the confirmed vehicle range.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Toyota | Corolla iM | — | — | — | Front | — |
| 2018 | Toyota | Prius V | — | — | — | Front | — |
| 2017 | Toyota | Corolla iM | — | — | — | Front | — |
| 2017 | Toyota | Prius V | — | — | — | Front | — |
| 2016 | Scion | tC | Automatic | — | — | Front | — |
| 2016 | Toyota | Prius V | — | — | — | Front | — |
| 2015 | Scion | tC | Automatic | — | — | Front | — |
| 2015 | Scion | xB | — | — | — | Front | — |
| 2015 | Toyota | Prius V | — | — | — | Front | — |
| 2014 | Scion | tC | Automatic | — | — | Front | — |
| 2014 | Scion | xB | — | — | — | Front | — |
| 2014 | Toyota | Prius V | — | — | — | Front | — |
| 2013 | Scion | tC | Automatic | — | — | Front | — |
| 2013 | Scion | xB | — | — | — | Front | — |
| 2013 | Toyota | Prius V | — | — | — | Front | — |
| 2012 | Lexus | HS250h | — | — | — | Front | — |
| 2012 | Scion | tC | Automatic | — | — | Front | — |
| 2012 | Scion | xB | — | — | — | Front | — |
| 2012 | Toyota | Prius V | — | — | — | Front | — |
| 2012 | Toyota | RAV4 | — | 2.5L | L4 | Front | — |
| 2011 | Lexus | HS250h | — | — | — | Front | — |
| 2011 | Scion | tC | Automatic | — | — | Front | — |
| 2011 | Scion | xB | — | — | — | Front | — |
| 2011 | Toyota | RAV4 | — | 2.5L | L4 | Front | — |
| 2010 | Lexus | HS250h | — | — | — | Front | — |
| 2010 | Scion | xB | — | — | — | Front | — |
| 2010 | Toyota | RAV4 | — | 2.5L | L4 | Front | — |
| 2009 | Scion | xB | — | — | — | Front | — |
| 2009 | Toyota | RAV4 | — | 2.5L | L4 | Front | — |
| 2008 | Scion | xB | — | — | — | Front | — |
| 2008 | Toyota | RAV4 | — | 2.4L | L4 | Front | — |
| 2007 | Toyota | RAV4 | — | 2.4L | L4 | Front | — |
| 2006 | Toyota | RAV4 | — | 2.4L | L4 | Front | — |
