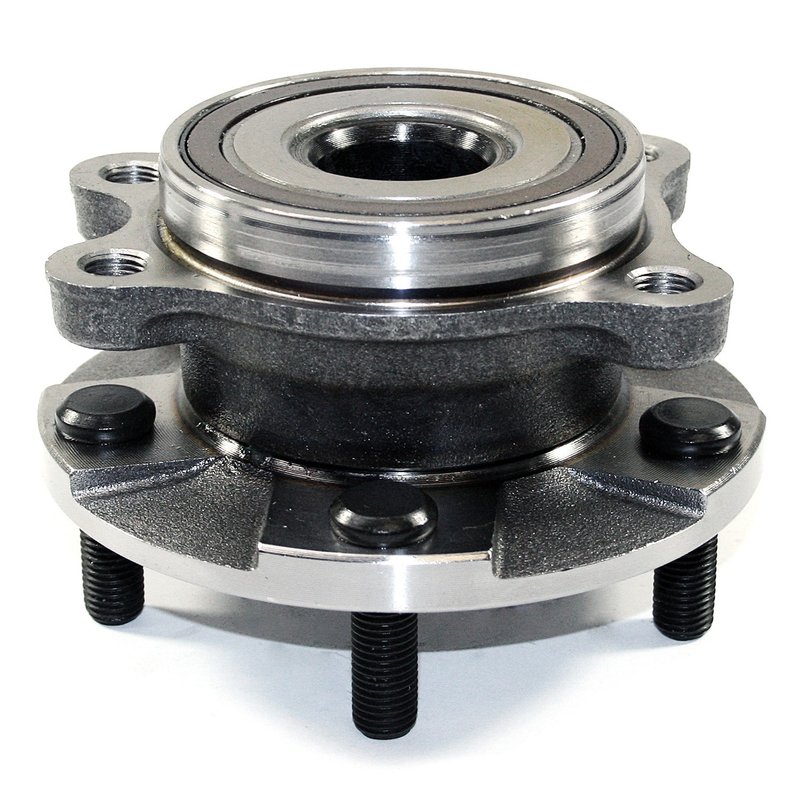

DuraGo 295-13258 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Toyota and Scion Vehicles

The DuraGo 295-13258 wheel bearing and hub assembly is engineered to meet the specific needs of Toyota and Scion models, including the Mirai, RAV4, and tC. Designed for driven hubs, this assembly ensures precise fitment and reliable performance in driveline applications.

• Compatible with Toyota Mirai, RAV4, and Scion tC models
• Driven type hub assembly with 30 spline quantity
• Includes 5 wheel studs sized M12 x 1.5
• Features an anti-lock braking system (ABS) encoder for enhanced safety
• Modified flange shape with 4 flange bolt holes (M12 x 1.25 bolt size)
• Wheel pilot diameter of 2.36 inches (60 mm) and brake pilot diameter of 2.44 inches (62 mm)
• Flange diameter measures 5.47 inches (139 mm) with a flange offset of 1.87 inches (47.5 mm)
• Hub pilot diameter of 3.54 inches (90 mm)

Detailed Product Description

The DuraGo 295-13258 wheel bearing and hub assembly is designed for driven axle applications on select Toyota and Scion vehicles. It features a 30-spline shaft interface, ensuring compatibility with the vehicle’s drivetrain. The assembly includes five M12 x 1.5 wheel studs, providing secure wheel mounting. The modified flange shape with four bolt holes (M12 x 1.25) allows for proper attachment to the vehicle’s hub. The wheel pilot diameter of 2.36 inches (60 mm) and brake pilot diameter of 2.44 inches (62 mm) ensure precise alignment of the wheel and brake components. Additionally, the hub pilot diameter of 3.54 inches (90 mm) supports proper hub centering. This assembly is equipped with an ABS encoder type sensor, which integrates with the vehicle’s anti-lock braking system to monitor wheel speed and enhance braking control.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Mirai, RAV4, and Scion tC
• Addresses wheel vibration or noise caused by bearing wear
• Resolves ABS warning light issues related to faulty wheel speed sensors
• Corrects wheel alignment problems due to hub pilot diameter wear
• Improves wheel mounting stability with included wheel studs

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old hub assembly carefully, noting the orientation of the ABS encoder sensor. Clean the mounting surface thoroughly to prevent misalignment. Torque flange bolts to manufacturer specifications (M12 x 1.25 bolt size). Verify ABS sensor connection and functionality after installation. Use proper tools to avoid damage to the wheel studs and flange.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-13258 part undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
