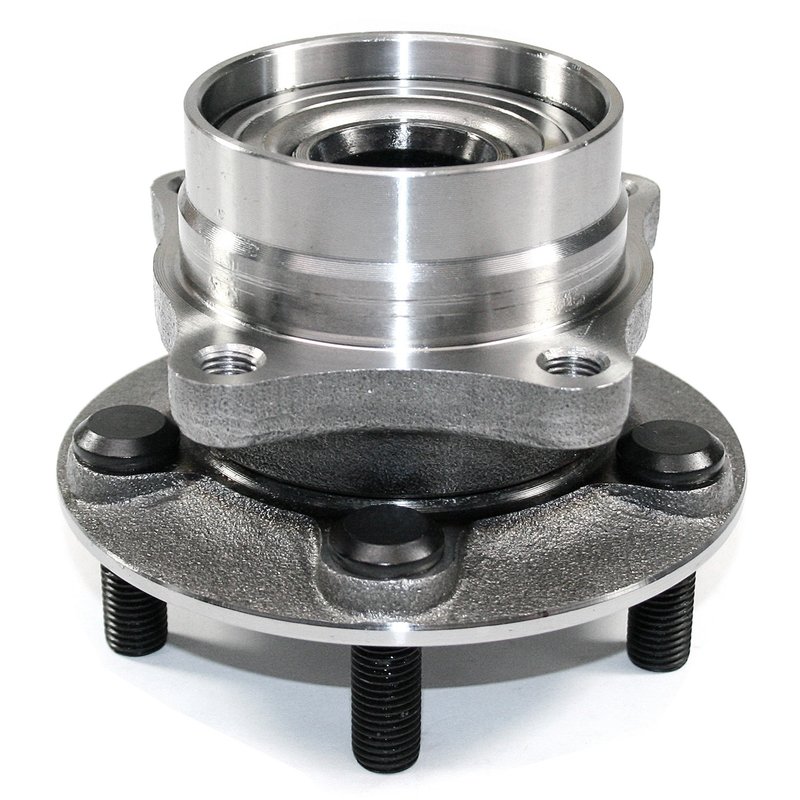

DuraGo 295-13265 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13265 |
|---|---|
| Position | Front |
| Spline Quantity | 26 |
| 143 | 100 |
| 143 | 3.94 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.13 |
| Wheel Pilot Diameter | 54 |
| Brake Pilot Diameter | 2.17 |
| Brake Pilot Diameter | 55 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.07 |
| Hub Pilot Diameter | 78 |
| Flange Shape | Modified |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Flange Offset | 1.65 |
| Flange Offset | 42 |
| Flange Diameter | 125 |
| Flange Diameter | 4.92 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M10 x 1.25 |
| Fits | Toyota · 6 vehicles |
Driven hub assembly. Built for smooth power transfer and dependable wheel support.
Wheel studs included. Ready for a more complete hub replacement right out of the box.
100% tested. Each hub unit is checked to meet strict quality standards.
Cross-references MOOG Hub Assemblies 513265, SKF BR930641 and Timken HA590064 for the same application. See all 9.
DuraGo 295-13265 Front Wheel Hub Assembly
The DuraGo 295-13265 wheel bearing and hub assembly is built for the front of select Toyota Prius models from 2004-2009. It is a driven hub assembly with 5 wheel studs, M12 x 1.5 wheel studs, and a 26-spline design for a direct driveline and axle service replacement.
Key Features
- Fits 2004-2009 Toyota Prius, front
- Driven wheel bearing and hub assembly
- 26 spline quantity for the specified application
- 5 wheel studs with M12 x 1.5 stud size
- Wheel pilot diameter: 54 mm (2.13 in.)
- Brake pilot diameter: 55 mm (2.17 in.)
- Hub pilot diameter: 78 mm (3.07 in.)
- Flange diameter: 125 mm (4.92 in.)
- Flange offset: 42 mm (1.65 in.)
- Modified flange shape with 4 flange bolt holes
- ABS: No
Detailed Description
DuraGo 295-13265 is a front wheel bearing and hub assembly for the Toyota Prius, engineered for driveline service where a driven hub is required. DuraGo assembles each hub unit with quality components and tests every unit to meet its manufacturing standards. This replacement hub is designed around the listed dimensions, including the 78 mm hub pilot diameter, 54 mm wheel pilot diameter, and 55 mm brake pilot diameter, to support proper fitment on the specified Prius applications. This part cross-references Timken HA590064 for the same application.
Common Problems This Part Can Address
- Wheel bearing noise from the front hub area
- Excessive hub play or looseness
- Uneven wheel rotation caused by worn hub components
- Vibration related to hub wear
- Service replacement for a worn front driven hub on a Toyota Prius
Installation Notes and Tips
Confirm front fitment by year before ordering: this part fits 2004-2009 Toyota Prius, front. Verify spline count, stud size, flange offset, and pilot diameters against the original hub assembly before installation. Because ABS is listed as no for this application, compare the vehicle’s original hub configuration and sensor setup before service. Proper torque procedures and a clean mounting surface are important for accurate hub seating and long-term performance.
Quality Assurance
DuraGo manufactures aftermarket automotive components to industry-leading quality standards and states that its hub assemblies are 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Toyota | Prius | Front | — |
| 2008 | Toyota | Prius | Front | — |
| 2007 | Toyota | Prius | Front | — |
| 2006 | Toyota | Prius | Front | — |
| 2005 | Toyota | Prius | Front | — |
| 2004 | Toyota | Prius | Front | — |
| No rows match your filter. | ||||
