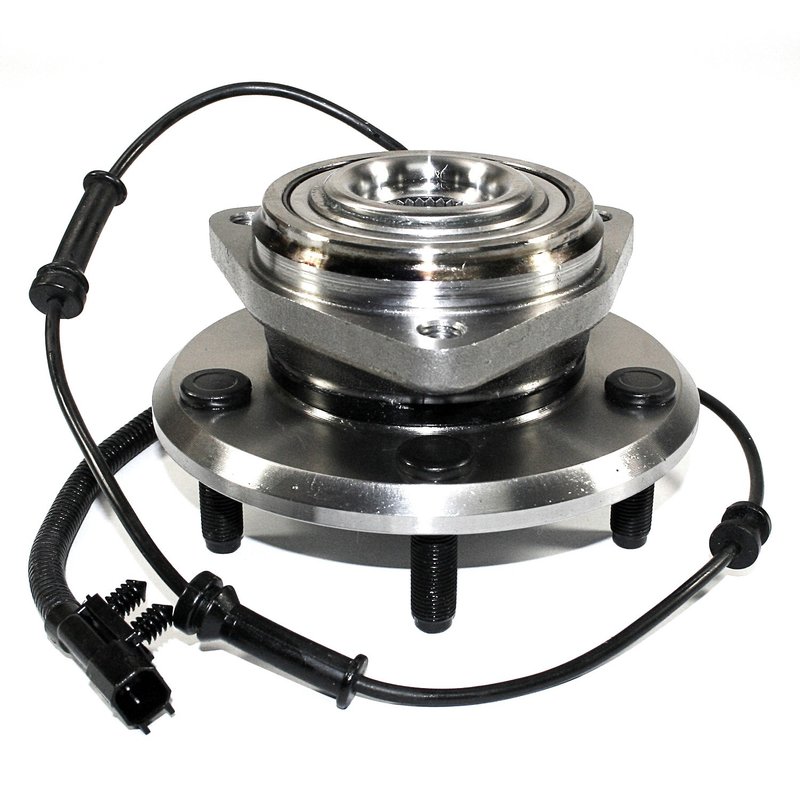

DuraGo 295-13272 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13272 |
|---|---|
| Position | Front |
| Spline Quantity | 32 |
| 143 | 127 |
| 143 | 5 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 1/2-20 |
| Wheel Pilot Diameter | 2.81 |
| Wheel Pilot Diameter | 71.4 |
| Brake Pilot Diameter | 2.83 |
| Brake Pilot Diameter | 71.9 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 100.2 |
| Hub Pilot Diameter | 3.94 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.91 |
| Flange Offset | 48.6 |
| Flange Diameter | 161.5 |
| Flange Diameter | 6.36 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Jeep · 4 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Built with quality components to meet strict standards.
ABS sensor included. Integrated sensor support for reliable braking system operation.
Cross-references MOOG Hub Assemblies 513272, Mopar 52060398AC and SKF BR930612 for the same application. See all 7.
DuraGo 295-13272 Front Hub Assembly
The DuraGo 295-13272 wheel bearing and hub assembly is built for front-wheel service on select Jeep Wrangler models. It combines the hub, bearing, ABS sensor cord, and wheel studs in one driven hub assembly to support smooth rotation and reliable wheel-speed signal performance.
Key Features
- Fits 2007-2010 Jeep Wrangler, front
- Driven wheel bearing and hub assembly for front axle service
- ABS sensor type with sensor cord included
- 5 wheel studs with 1/2-20 wheel stud size
- 32 spline quantity
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 100.2 mm (3.94 in.)
- Wheel pilot diameter: 71.4 mm (2.81 in.)
- Brake pilot diameter: 71.9 mm (2.83 in.)
- Flange diameter: 161.5 mm (6.36 in.)
- Flange offset: 48.6 mm (1.91 in.)
- Flange bolt size: M12 x 1.75
Detailed Description
DuraGo 295-13272 is a front wheel bearing and hub assembly for 2007-2010 Jeep Wrangler models. It is a driven hub assembly with ABS sensor provisions, making it a direct-fit option for front-end repair where wheel bearing wear, hub looseness, or ABS signal issues are present. This part cross-references SKF BR930612 for the same application.
DuraGo manufactures hub assemblies using quality components and tests each unit before release. The brand states these assemblies are produced to ISO/TS 16949:2002 quality standards, which supports consistent fit and function for service work on Jeep Wrangler front hubs. The part number 295-13272 is also referenced in OE and aftermarket catalogs for this application.
Common Repair Uses
- Front wheel bearing noise or growling
- Excessive hub play or looseness
- ABS warning light caused by hub sensor issues
- Uneven wheel rotation or rough front-end operation
- Wheel stud or hub mounting wear
Installation Notes and Tips
Verify front axle fitment, spline count, and ABS connector style before installation. Inspect the mating surfaces, axle nut condition, and brake components during service. Because this is a driven hub assembly, confirm the axle and hub engagement are clean and properly seated before final torque.
Quality Assurance
DuraGo 295-13272 is 100% tested and manufactured to industry-leading quality standards. The brand also notes compliance with ISO/TS 16949:2002 manufacturing practices for hub assemblies.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Jeep | Wrangler | Front | — |
| 2009 | Jeep | Wrangler | Front | — |
| 2008 | Jeep | Wrangler | Front | — |
| 2007 | Jeep | Wrangler | Front | — |
