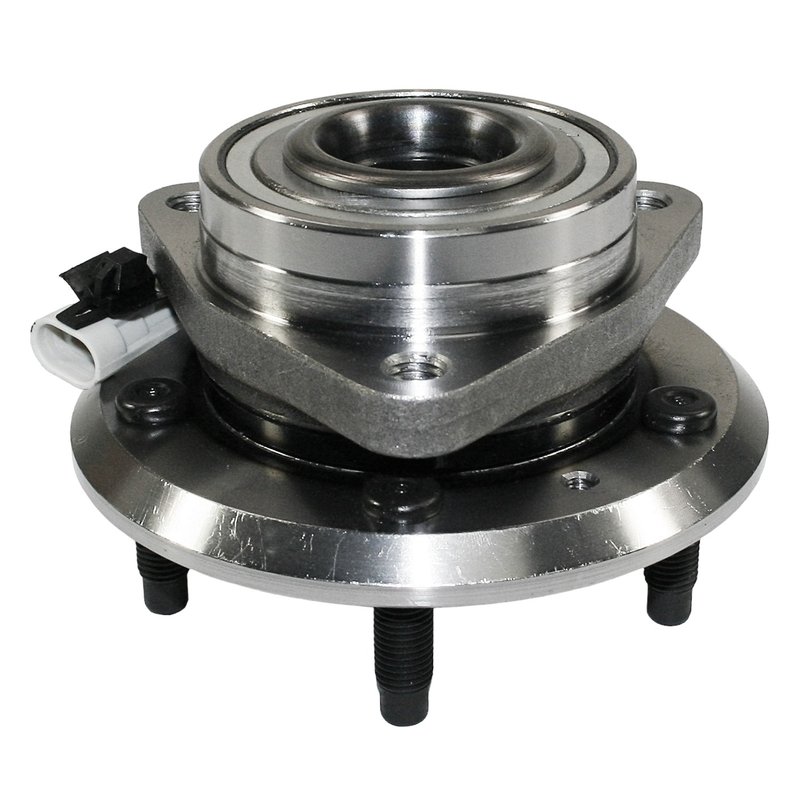

DuraGo 295-13276 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13276 |
|---|---|
| Position | Front |
| Spline Quantity | 30 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.59 |
| Hub Pilot Diameter | 91.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 151 |
| Flange Diameter | 5.94 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Chevrolet, Pontiac, Saturn, and Suzuki · 20 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
ABS sensor included. Built with sensor-based anti-lock braking support.
100% tested. Each unit is checked to meet strict quality standards.
Cross-references MOOG Hub Assemblies 513276, SKF BR930663 and Timken HA590262 for the same application. See all 9.
DuraGo 295-13276 Front Wheel Hub Assembly
DuraGo 295-13276 is a front wheel bearing and hub assembly for select Chevrolet, Saturn, Pontiac, and Suzuki applications. Built as a driven hub assembly with ABS sensor integration, it is a direct-fit replacement for vehicles that need restored wheel support, stable rotation, and reliable wheel speed signal performance.
Key Features
- Driven front wheel bearing and hub assembly
- ABS sensor type with sensor cord included
- 5 wheel studs with M12 x 1.5 wheel stud size
- 30 spline quantity
- Triangle flange shape with 151 mm flange diameter
- Hub pilot diameter: 91.3 mm
- Wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm
- Flange offset: 42.1 mm
- Cross-references MOOG 513276 and Timken HA590262 for the same application
Detailed Description
This DuraGo wheel bearing and hub assembly is engineered for front-end service on 2007-2009 Chevrolet Equinox, 2008-2015 Chevrolet Captiva Sport, 2008-2010 Saturn Vue, 2007-2009 Pontiac Torrent, and 2007-2009 Suzuki XL-7 models. DuraGo builds each hub unit with quality components and tests every assembly to help ensure it meets industry-level manufacturing standards. The design supports reduced friction at the wheel end and helps maintain smooth hub operation on driven front applications.
Part number 295-13276 is a practical OE-style replacement when servicing a worn front hub on a Chevrolet Equinox, Saturn Vue, Pontiac Torrent, or Suzuki XL-7. It also cross-references common aftermarket numbers such as MOOG 513276 and Timken HA590262 for the same application.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to hub-mounted sensor function
- Excessive wheel play or looseness at the hub
- Rough or inconsistent wheel rotation
- Vibration or driveline feel from a deteriorated driven hub
Installation Notes and Tips
Verify front-position fitment before ordering, since this part is specific to driven front applications. Confirm wheel stud size, spline count, and ABS connector style against the original hub assembly. Inspect the mating surfaces, axle interface, and brake components during replacement to help ensure proper seating and signal performance.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The part is built to meet ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Chevrolet | Captiva Sport | Front | — |
| 2014 | Chevrolet | Captiva Sport | Front | — |
| 2013 | Chevrolet | Captiva Sport | Front | — |
| 2012 | Chevrolet | Captiva Sport | Front | — |
| 2011 | Chevrolet | Captiva Sport | Front | — |
| 2010 | Chevrolet | Captiva Sport | Front | — |
| 2010 | Saturn | Vue | Front | — |
| 2009 | Chevrolet | Captiva Sport | Front | — |
| 2009 | Chevrolet | Equinox | Front | — |
| 2009 | Pontiac | Torrent | Front | — |
| 2009 | Saturn | Vue | Front | — |
| 2009 | Suzuki | XL-7 | Front | — |
| 2008 | Chevrolet | Captiva Sport | Front | — |
| 2008 | Chevrolet | Equinox | Front | — |
| 2008 | Pontiac | Torrent | Front | — |
| 2008 | Saturn | Vue | Front | — |
| 2008 | Suzuki | XL-7 | Front | — |
| 2007 | Chevrolet | Equinox | Front | — |
| 2007 | Pontiac | Torrent | Front | — |
| 2007 | Suzuki | XL-7 | Front | — |
