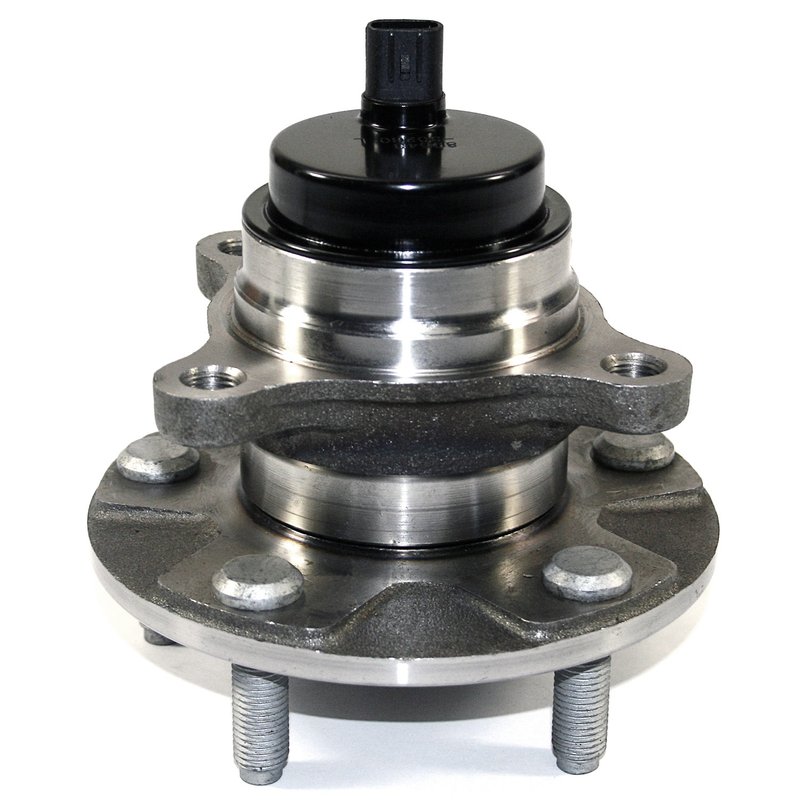

DuraGo 295-13284 Wheel Bearing and Hub Assembly - Front Left

Overview of DuraGo Wheel Bearing and Hub Assembly 295-13284

The DuraGo 295-13284 wheel bearing and hub assembly is engineered for reliable performance on select Lexus models. Designed as a non-driven hub assembly, it supports smooth wheel rotation and integrates an ABS sensor for enhanced braking control.

• Compatible with Lexus GS300, GS350, GS430, GS450h, GS460, IS250, IS350, and IS F models
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Features a trapezoid flange shape with 4 M12 x 1.25 flange bolt holes
• Equipped with an ABS sensor connector for anti-lock braking system functionality
• Hub pilot diameter measures 2.91 inches (74 mm) ensuring precise fitment
• Flange diameter of 5.51 inches (139.9 mm) with a flange offset of 2.17 inches (55 mm)

Technical Specifications and Features

This DuraGo wheel bearing and hub assembly (part number 295-13284) is designed to meet the exacting standards required for Lexus driveline components. The assembly includes five wheel studs sized M12 x 1.5, which are pre-installed to facilitate wheel attachment. The trapezoid flange shape with four bolt holes (M12 x 1.25) provides a secure mounting interface. The hub pilot diameter of 2.91 inches (74 mm) and brake pilot diameter of 2.44 inches (62 mm) ensure proper alignment with the vehicle’s braking system. Additionally, the assembly supports the vehicle’s anti-lock braking system (ABS) through an integrated sensor connector, although the ABS sensor cord is not included.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Lexus GS and IS series vehicles
• Addresses wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function to maintain braking safety
• Corrects wheel alignment issues related to hub pilot diameter wear
• Prevents premature tire wear due to hub assembly failure

Installation Notes and Tips

When installing the DuraGo 295-13284 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s hub mounting points. Since flange bolts are not included, retain and reuse the original hardware or source appropriate replacements. Confirm ABS sensor connector compatibility and routing during installation to maintain system integrity. Proper torque specifications should be followed to avoid damage or premature failure.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet OEM standards for fit and function on Lexus GS and IS models. While specific warranty details are not provided, DuraGo products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
