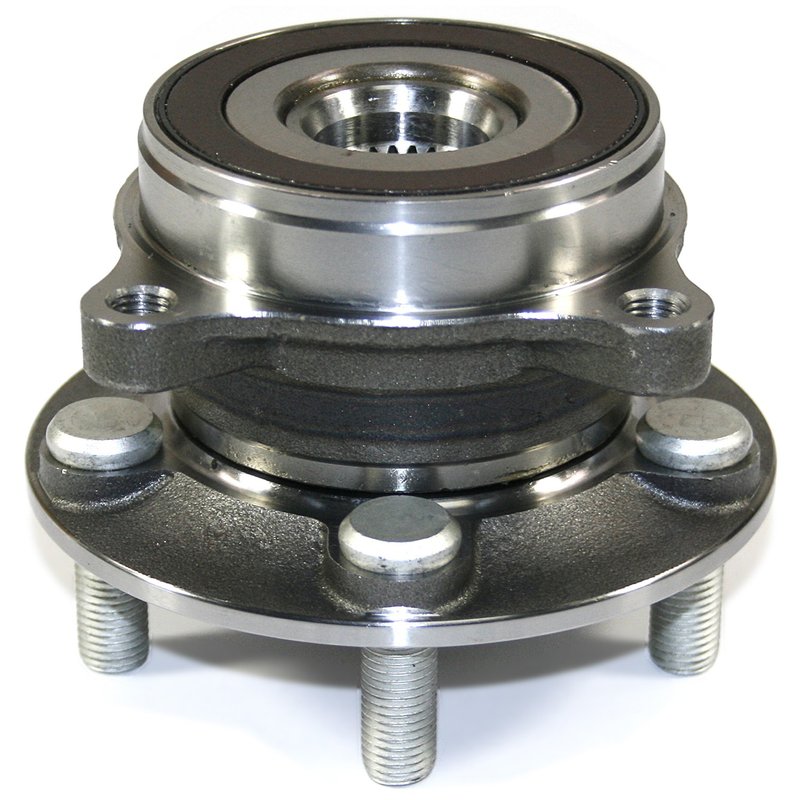

DuraGo 295-13287 Wheel Bearing and Hub Assembly - Front

Overview of DuraGo 295-13287 Wheel Bearing and Hub Assembly

The DuraGo 295-13287 wheel bearing and hub assembly is engineered for reliable driveline performance on select Lexus and Toyota models. Designed specifically for the Lexus CT200h and Toyota Prius and Prius Plug-In, this driven hub assembly supports anti-lock braking systems with an integrated encoder.

Key Features of the DuraGo 295-13287 Hub Assembly

• Compatible with Lexus CT200h, Toyota Prius, and Prius Plug-In models
• Driven type hub assembly with 26 spline quantity for secure fitment
• Includes 5 M12 x 1.5 wheel studs for proper wheel mounting
• Flange with 4 bolt holes (M10 x 1.25) and modified flange shape
• Supports Anti-Lock Braking System (ABS) with encoder type sensor
• Wheel pilot diameter of 54 mm and brake pilot diameter of 55 mm for precise alignment
• Flange diameter measures 125 mm with a flange offset of 47 mm
• Hub pilot diameter of 84 mm ensures proper hub centering

Detailed Product Description

This DuraGo wheel bearing and hub assembly (part number 295-13287) is designed as a driven hub for specific Lexus and Toyota hybrid models, including the CT200h and Prius series. The assembly features a 26-spline shaft interface, providing a secure connection to the drivetrain. It includes five M12 x 1.5 wheel studs, facilitating proper wheel attachment and stability. The flange is engineered with a modified shape and four M10 x 1.25 bolt holes, ensuring compatibility with the vehicle’s mounting points.

The hub supports an anti-lock braking system (ABS) with an encoder sensor type, which is essential for maintaining vehicle stability and braking performance. Precise pilot diameters for the wheel (54 mm) and brake components (55 mm) help maintain proper alignment and reduce vibration. The flange diameter of 125 mm and offset of 47 mm are designed to match factory specifications, ensuring a proper fit and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Lexus CT200h and Toyota Prius models
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function for safe braking performance
• Corrects wheel alignment issues related to hub pilot diameter wear
• Addresses loose or damaged wheel studs affecting wheel security

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the hub pilot diameter and flange bolt pattern match the vehicle specifications. Use proper torque specifications for flange bolts and wheel studs to avoid premature wear or failure. Since flange bolts are not included, retain or replace existing hardware as needed. Confirm ABS sensor connections are properly seated to maintain system functionality.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. This part number 295-13287 undergoes rigorous quality control to ensure durability and performance on Lexus CT200h and Toyota Prius vehicles. Warranty coverage details should be confirmed with the original parts provider or vehicle manufacturer.
