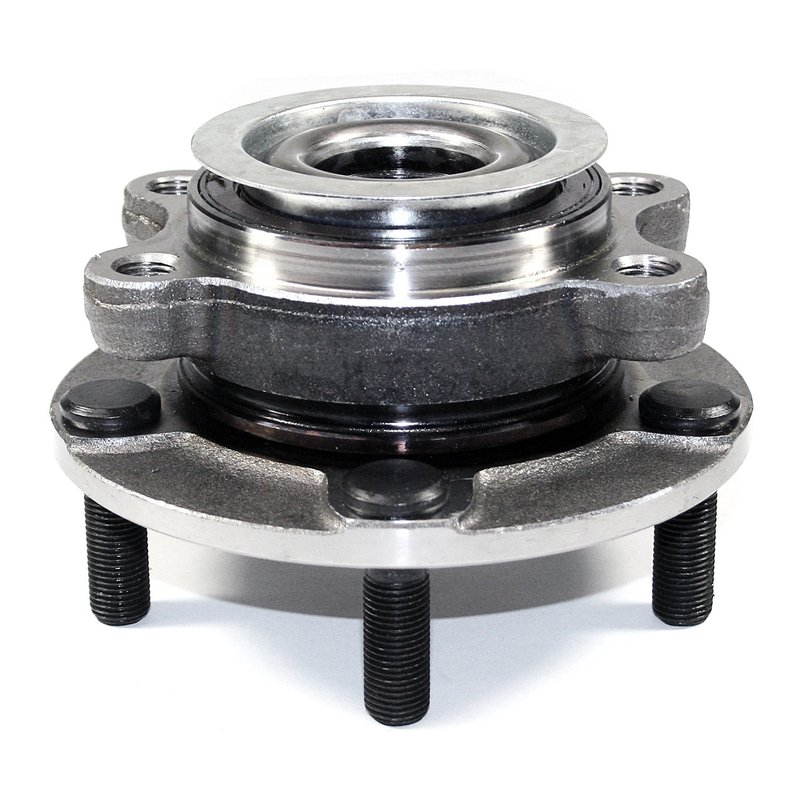

DuraGo 295-13298 Wheel Bearing and Hub Assembly - Front
| Brand | DuraGo 295-13298 |
|---|---|
| Position | Front |
| Spline Quantity | 29 |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.25 |
| Wheel Pilot Diameter | 2.6 |
| Wheel Pilot Diameter | 66 |
| Brake Pilot Diameter | 2.68 |
| Brake Pilot Diameter | 68 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.15 |
| Hub Pilot Diameter | 80 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.6 |
| Flange Offset | 40.7 |
| Flange Diameter | 136 |
| Flange Diameter | 5.35 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.25 |
| Fits | Nissan · 14 vehicles |
OE-style replacement. Wheel bearing and hub assembly for straightforward service.
Encoder ABS included. Integrated anti-lock braking system sensor support.
100% tested. Built to meet strict quality standards.
Cross-references MOOG Hub Assemblies 513298, SKF BR930772 and 40202EN010 for the same application. See all 9.
DuraGo 295-13298 Front Wheel Hub Assembly
DuraGo 295-13298 is a front wheel bearing and hub assembly for select Nissan applications. It is built with quality components, 100% tested, and engineered to reduce friction while supporting smoother wheel rotation and improved fuel economy.
Key Features
- Front driven wheel bearing and hub assembly
- ABS encoder type for vehicles equipped with anti-lock braking systems
- 5 wheel studs included with M12 x 1.25 wheel stud size
- 29 spline quantity
- Rectangle flange shape with 4 flange bolt holes
- Hub pilot diameter: 80 mm; wheel pilot diameter: 66 mm
- Brake pilot diameter: 68 mm; flange diameter: 136 mm
- Flange offset: 40.7 mm
- Cross-references MOOG 513298 and SKF BR930772 for the same application
Detailed Description
This DuraGo wheel bearing and hub assembly is built for front-wheel applications that require a driven hub with ABS encoder functionality. The part number 295-13298 is engineered to match the OE-style dimensions and mounting points used on select Nissan Rogue, Nissan Rogue Select, and Nissan Sentra models. DuraGo states that its hub assemblies are assembled with high-quality components, tested for consistency, and manufactured to industry standards aligned with ISO/TS 16949:2002.
Compatible With 2007-2012 Nissan Sentra, front; 2008-2013 Nissan Rogue, front; and 2014-2015 Nissan Rogue Select, front. Use DuraGo 295-13298 when replacing a worn front hub assembly on these Nissan vehicles to restore proper wheel support and ABS signal function.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- Excessive wheel play or looseness at the hub
- ABS warning light concerns related to encoder-equipped hubs
- Uneven wheel rotation caused by hub wear
- Reduced driveline efficiency from friction in the hub assembly
Installation Notes and Tips
Verify front-position fitment and confirm the vehicle uses a driven hub with ABS encoder configuration before installation. Match the wheel stud size, spline count, and pilot diameters to the original part for proper fit. Inspect surrounding components such as the axle nut, knuckle, and brake hardware for wear before installing the new hub assembly.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The brand’s manufacturing process is aligned with ISO/TS 16949:2002 quality requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Nissan | Rogue Select | — | — | Front | — |
| 2014 | Nissan | Rogue Select | — | — | Front | — |
| 2013 | Nissan | Rogue | — | — | Front | — |
| 2012 | Nissan | Rogue | — | — | Front | — |
| 2012 | Nissan | Sentra | 2.5L | L4 | Front | — |
| 2011 | Nissan | Rogue | — | — | Front | — |
| 2011 | Nissan | Sentra | 2.5L | L4 | Front | — |
| 2010 | Nissan | Rogue | — | — | Front | — |
| 2010 | Nissan | Sentra | 2.5L | L4 | Front | — |
| 2009 | Nissan | Rogue | — | — | Front | — |
| 2009 | Nissan | Sentra | 2.5L | L4 | Front | — |
| 2008 | Nissan | Rogue | — | — | Front | — |
| 2008 | Nissan | Sentra | 2.5L | L4 | Front | — |
| 2007 | Nissan | Sentra | 2.5L | L4 | Front | — |
