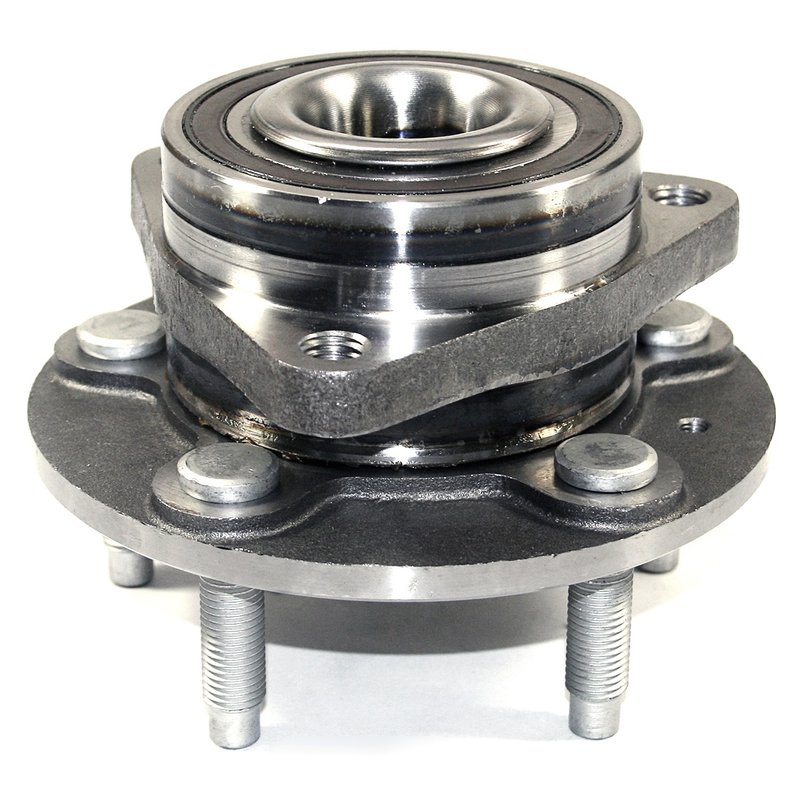

DuraGo 295-13316 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-13316 |
|---|---|
| Position | Front and Rear |
| Spline Quantity | 30 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.59 |
| Hub Pilot Diameter | 91.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 146 |
| Flange Diameter | 5.75 |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Buick, Cadillac, and Chevrolet · 24 vehicles |
OE-style replacement. Wheel bearing and hub assembly for straightforward service.
Encoder ABS. Integrated sensor type supports anti-lock braking systems.
100% tested. Built with quality components to meet strict standards.
Cross-references MOOG Hub Assemblies 513316, Timken HA590404 and 13580686 for the same application. See all 6.
DuraGo 295-13316 Wheel Bearing Hub Assembly
The DuraGo 295-13316 wheel bearing and hub assembly is built for driven front and rear applications that require precise wheel support and ABS encoder function. It is a direct-fit replacement for select Buick, Cadillac, and Chevrolet models, including the Buick Verano, Cadillac ATS, Chevrolet Cruze, and Chevrolet Volt.
Key Features
- Wheel bearing and hub assembly for driven applications
- ABS encoder type for vehicles equipped with anti-lock braking systems
- 5 wheel studs with M12 x 1.5 wheel stud size
- 30 spline count
- Triangle flange shape with 146 mm flange diameter
- Hub pilot diameter: 91.3 mm; wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm
- Flange offset: 42.1 mm
- Cross-references MOOG 513316 and Timken HA590404 for the same application
Detailed Description
DuraGo 295-13316 is a premium hub assembly engineered to replace worn wheel hub components and restore smooth wheel rotation, stable wheel mounting, and proper ABS signal operation. It is specified for 2011-2015 Chevrolet Volt front, 2012-2017 Buick Verano front, 2013-2017 Cadillac ATS front, 2013-2017 Cadillac ATS rear, and 2013-2015 Chevrolet Cruze front with 16 inch wheels. This part number is also referenced as 295-13316 in catalog listings for OE-style hub replacement searches.
Built with quality components and tested before release, this hub assembly is manufactured to meet industry quality standards and ISO/TS 16949:2002 requirements. The driven hub design, encoder-style ABS provision, and OE-style dimensions support accurate fitment on vehicles that need a replacement wheel bearing hub assembly for driveline and axle service.
Common Problems This Part Can Address
- Wheel bearing noise such as humming, growling, or rumbling from the hub area
- ABS warning light caused by a failing encoder hub
- Wheel looseness or play from a worn hub assembly
- Uneven wheel rotation or vibration at the hub
- Loss of proper wheel mounting support on driven axle applications
Installation Notes and Tips
Verify the vehicle position, wheel size notes, and ABS configuration before installation. This assembly is listed for front and rear positions depending on application, so match the exact fitment row for your Buick Verano, Cadillac ATS, Chevrolet Cruze, or Chevrolet Volt. Inspect related suspension, axle, and brake components during replacement to confirm the source of noise or play. The flange bolts are not included.
Quality Assurance
DuraGo states that its hub assemblies are 100% tested and manufactured to industry-leading quality standards. The brand also notes compliance with ISO/TS 16949:2002 manufacturing requirements for this product line.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Buick | Verano | — | Front | — |
| 2017 | Cadillac | ATS | AWD | Front | — |
| 2017 | Cadillac | ATS | — | Rear | — |
| 2016 | Buick | Verano | — | Front | — |
| 2016 | Cadillac | ATS | AWD | Front | — |
| 2016 | Cadillac | ATS | — | Rear | — |
| 2015 | Buick | Verano | — | Front | — |
| 2015 | Cadillac | ATS | AWD | Front | — |
| 2015 | Cadillac | ATS | — | Rear | — |
| 2015 | Chevrolet | Cruze | — | Front | 16 Inch Wheels |
| 2015 | Chevrolet | Volt | — | Front | — |
| 2014 | Buick | Verano | — | Front | — |
| 2014 | Cadillac | ATS | AWD | Front | — |
| 2014 | Cadillac | ATS | — | Rear | — |
| 2014 | Chevrolet | Cruze | — | Front | 16 Inch Wheels |
| 2014 | Chevrolet | Volt | — | Front | — |
| 2013 | Buick | Verano | — | Front | — |
| 2013 | Cadillac | ATS | AWD | Front | — |
| 2013 | Cadillac | ATS | — | Rear | — |
| 2013 | Chevrolet | Cruze | — | Front | 16 Inch Wheels |
| 2013 | Chevrolet | Volt | — | Front | — |
| 2012 | Buick | Verano | — | Front | — |
| 2012 | Chevrolet | Volt | — | Front | — |
| 2011 | Chevrolet | Volt | — | Front | — |
| No rows match your filter. | |||||
